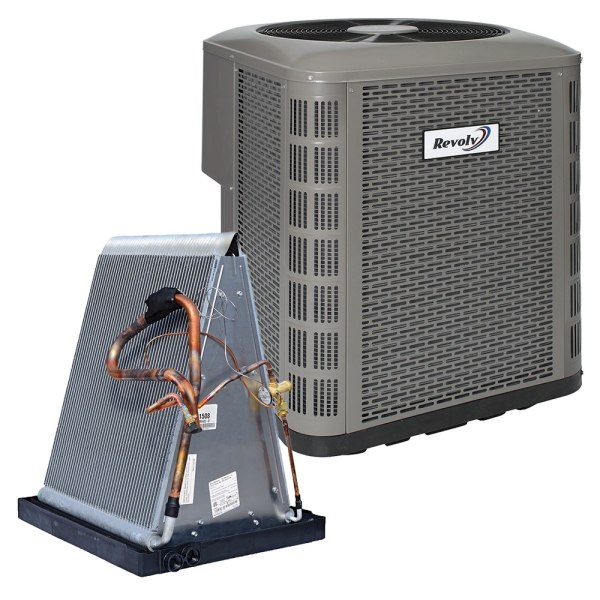

Maintaining comfortably cool conditions within your manufactured or modular housing shouldn’t be a struggle for your HVAC system. For a solution that suits the unique requirements of living in a mobile home, turn to the 2 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B. Gaining the support of both AHRI certification and ETL listing, the Revolv AC & Coil System passes intensive independent evaluations to showcase the integrity of every safety and operational claim. Make the most of your 1000 to 1200 square foot mobile home all summer long by upgrading to a 2 Ton Revolv System.

This Bundle Includes:

2 Ton Revolv Mobile Home Evaporator Coil - R454b
Item: HA26067Model: C85DAMX24U-B Qty: 1
Accessories
Description / Documents

Maintaining comfortably cool conditions within your manufactured or modular housing shouldn’t be a struggle for your HVAC system. For a solution that suits the unique requirements of living in a mobile home, turn to the 2 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B. Gaining the support of both AHRI certification and ETL listing, the Revolv AC & Coil System passes intensive independent evaluations to showcase the integrity of every safety and operational claim. Make the most of your 1000 to 1200 square foot mobile home all summer long by upgrading to a 2 Ton Revolv System.

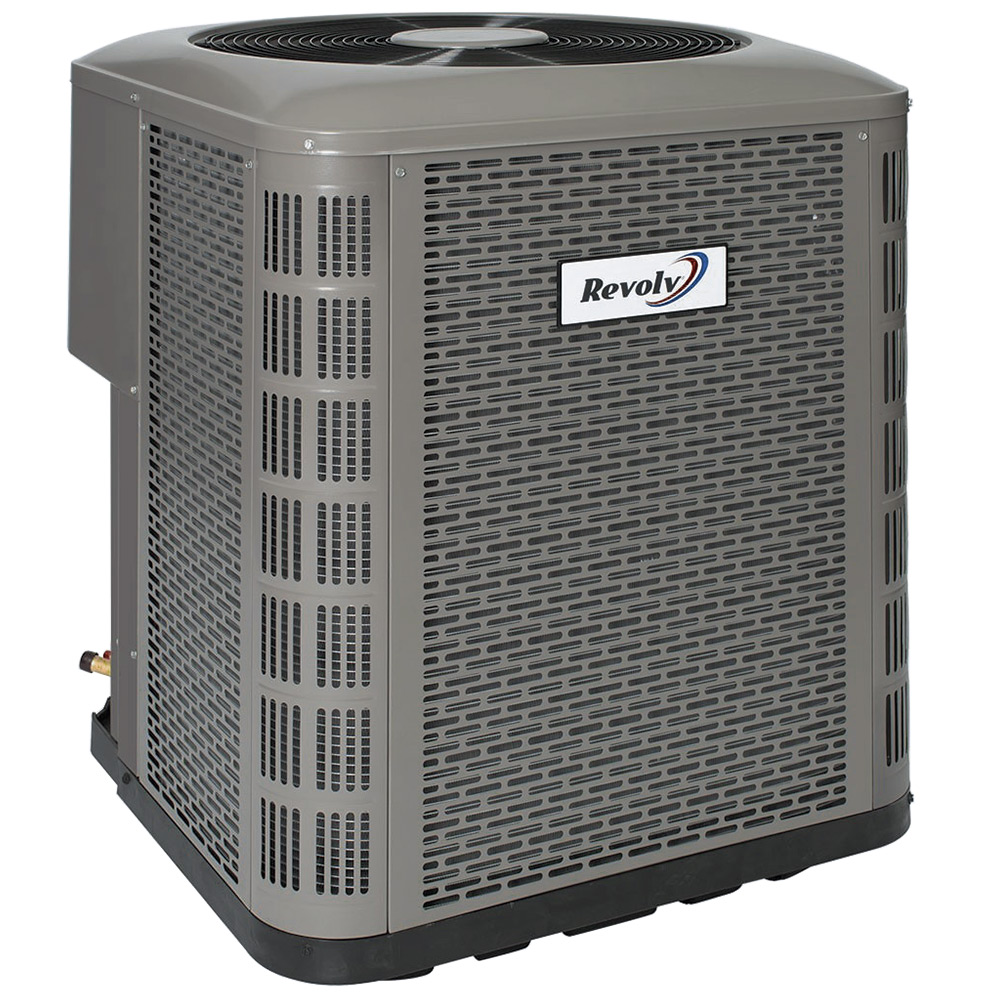

Boasting an intelligent design, the condenser in the 2 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B houses powerful hardware in a durable shell for long-lasting performance. A galvanized steel construction treated with a powder-paint finish resists corrosion and smooths any sharp corners. The resilient paint keeps the casing from fading, chipping, and scratching over time, going as far as earning 950-hour salt-spray approval. The permanently lubricated PSC motor and base pan provide quiet and consistent operation, mitigating sounds and vibrations during normal cycling. Already pre-charged with enough refrigerant to support up to 20 feet of line set, a removable top grille assembly, and the inclusion of a high-quality scroll compressor provide quick setup and efficient performance. The service-friendly jacket that grants streamlined compressor and control access, while supporting easy removal of the side panels without having to take off the top grille, the Revolv AC System makes enjoying reliably cool temperatures a breeze in any climate.

Ensuring the ability to easily install and service its hardware, the evaporator coil in the 2 Ton 14.3 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B goes above and beyond to save you money at every step of the process. The use of R454B refrigerant keeps the Revolv Coil’s ozone depletion potential at zero, while producing a lower GWP (global warming potential) than prior refrigerant options for better efficiency over time. Thanks to the included TXV metering device that adapts the amount and flow of refrigerant as needed to maintain superheat, you won’t have to worry about manually accounting for minute changes in the system. Taking advantage of the leak-free performance offered by down turn braze connections, the Revolv AC & Coil System is exactly what you need to stay cool this summer.

When you need a solution that can cater to the unique summertime needs of your mobile home, there’s no reason to cut corners. Bring home the 2 Ton Revolv Mobile Home Air Conditioner & Coil System utilizing R454B refrigerant today to guarantee the top-tier temperature regulation your family deserves during the sweltering summer heat.

Customer Reviews / Q&A
Specifications

System Overview

Model HSA4ME5M1SN24K,C85DAMX24U-B
AHRI Number 216044458
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency (SEER2) 14.3
Region Compatibility Nationwide

HSA4ME5M1SN24K Specifications:

Model HSA4ME5M1SN24K
UPC 663132529261
Product Height (in) 29.25
Avg Coverage Area 1,000 - 1,200 Sq Ft
Product Length (in) 31.75
Compressor Single Stage
Product Width (in) 31.75
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 115.000000
Refrigerant R-454b
Cooling Efficiency (SEER2) 14.3
Suction Line Size 3/4 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility Nationwide

C85DAMX24U-B Specifications:

Model C85DAMX24U-B
UPC 663132533688
Product Height (in) 18
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 2 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 30.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 5 Year
