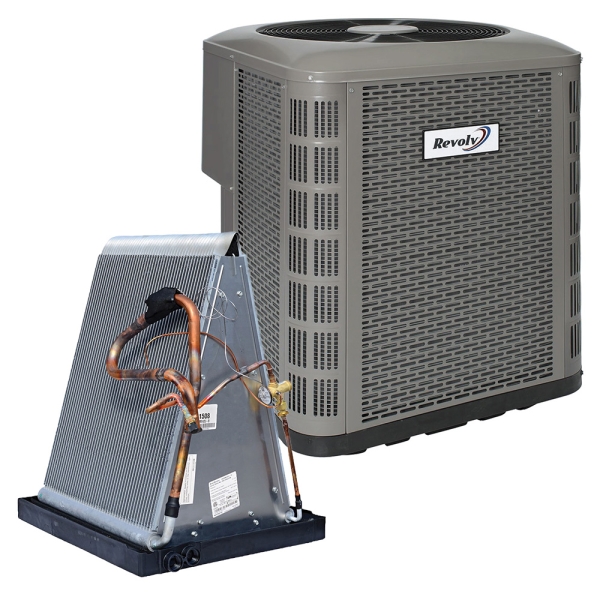

You shouldn’t have to put up with outdated, inefficient HVAC hardware to keep some semblance of temperature regulation just because you live in a mobile home. When the market has options like the 2 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B available, it’s easy to see the benefits modern technology can make on your climate control. Backed by both ETL listing and AHRI certification, the Revolv Heat Pump passes intensive independent evaluations to highlight the validity of every safety and operational claim. Bring in the big guns with a 2 Ton Revolv System and guarantee tailored results in your 1000 to 1200 square foot manufactured or mobile home.

This Bundle Includes:

2 Ton Revolv Mobile Home Evaporator Coil - R454b
Item: HA26067Model: C85DAMX24U-B Qty: 1
Accessories
Description / Documents

You shouldn’t have to put up with outdated, inefficient HVAC hardware to keep some semblance of temperature regulation just because you live in a mobile home. When the market has options like the 2 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B available, it’s easy to see the benefits modern technology can make on your climate control. Backed by both ETL listing and AHRI certification, the Revolv Heat Pump passes intensive independent evaluations to highlight the validity of every safety and operational claim. Bring in the big guns with a 2 Ton Revolv System and guarantee tailored results in your 1000 to 1200 square foot manufactured or mobile home.

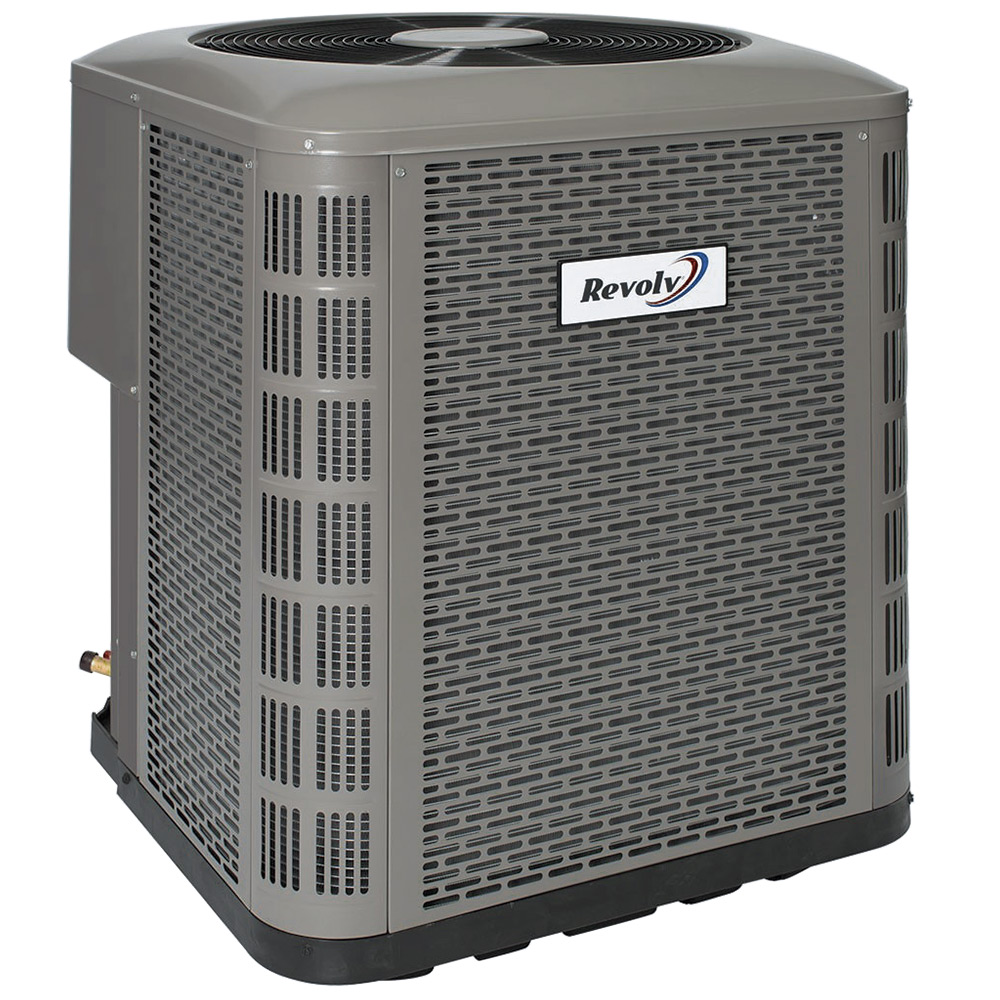

Sporting an intelligent design, the condenser in the 2 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B provides effective, long-lasting performance in every season. The powder-coated, galvanized steel cabinet passes a 950-hour salt-spray test, proving the long-term durability of the Revolv Heat Pump. A patented hot gas bypass defrost system ensures safe operation during winter weather, melting any ice from the condenser before starting the heating cycle. With a composite base pan built from an impressive resilient material resists rust with ease, mirroring the innate corrosion resistance of the all-aluminum condenser coil. An integrated hot gas muffler minimizes vibrations and noise from the compressor during normal operation, mitigating intrusive sounds commonly associated with older HVAC hardware. The crankcase heater and suction accumulator prevent liquid flood, while easily accessible brass valves and enough refrigerant for 20 feet of line set remove complexity from installation so the Revolv Mobile Home System can guarantee performance that doesn’t fall shy of your needs.

With a design that makes sustainable performance simple, the evaporator coil in the 2 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B works hard to streamline setup and servicing tasks. Using eco-friendly R454B refrigerant for its zero ozone depletion potential and reduced global warming potential, the Revolv Coil offers unmatched energy efficiency that perfectly suits the corresponding condenser. The included TXV metering device guarantees consistent superheating, adapting the amount of refrigerant as needed to maintain reliable results. Even equipped with down turn braze connections, the Revolv Heat Pump & Coil System has the dependable, leak-free performance you’ve been looking for to upgrade your home’s heating and cooling to new heights.

Enjoying climate control in a mobile home doesn’t have to be a game of chance, so why roll the dice with every seasonal shift? Decide on the 2 Ton Revolv Mobile Home Heat Pump & Coil System utilizing R454B refrigerant today and guarantee that your manufactured or modular housing can support a consistently comfortable indoor ambiance in every season.

Customer Reviews / Q&A
Specifications

System Overview

Model HSH4ME5M1SP24K,C85DAMX24U-B
AHRI Number 216046537
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency (SEER2) 14.3
EER2 11
Heat Pump Efficiency (HSPF2) 7.5
Region Compatibility Nationwide

HSH4ME5M1SP24K Specifications:

Model HSH4ME5M1SP24K
UPC 663132533633
Product Height (in) 33
Avg Coverage Area 1,000 - 1,200 Sq Ft
Product Length (in) 31.75
Compressor Single Stage
Product Width (in) 31.75
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 7.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Weight (lbs) 173.000000
Primary Heating Capacity 20,001 - 25,000 BTU
Refrigerant R-454b
Cooling Efficiency (SEER2) 14.3
Suction Line Size 3/4 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility Nationwide

C85DAMX24U-B Specifications:

Model C85DAMX24U-B
UPC 663132533688
Product Height (in) 18
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 2 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 30.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 5 Year
