This product has been discontinued.

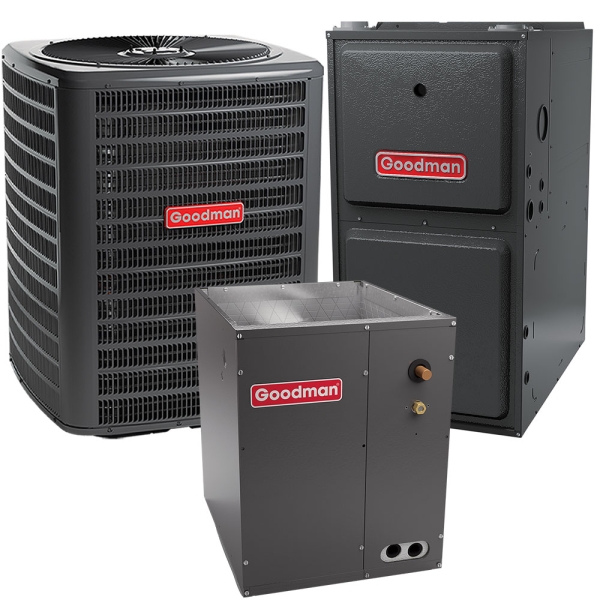

2 Ton 14 SEER 60k BTU 96% AFUE 2 Stage Variable Speed Goodman Central Air Conditioner & Gas Split System - Upflow
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Contact an expert now.
1.5 to 2 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet
Manufacturer Highlights
The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.
Standard Features
- Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
- Check flowrater expansion device for heat pump or cooling only applications
- Field-installed Thermal Expansion Valve Kits are available
- All aluminum tubing and wave pattern aluminum fin coils
Cased Coil Cabinet Features
- Foil-face insulation
- Galvanized leather-grain finish and high-quality post-paint models are available
- Split-seam front-excellent access
Accessories
- Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
- Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF
60k BTU 96% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet
Manufacturer Highlights
The Goodman® brand GMVC Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Aluminized-steel dual-diameter tubular heat exchanger
- Two-stage gas valve operates with two-stage or single stage thermostats
- ComfortNet™ Communications System compatible
- Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
- 120V Silicon Nitride igniter designed for long igniter life
- Furnace control board with self-diagnostic and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
- Multiple continuous fan speed options for quiet air circulation
- Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
- Quiet two-speed induced draft blower
- All models comply with California NOx emissions standards
Cabinet Features
- Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
- Designed for multi-position installation: Upflow, Horizontal left or right
- Removable bottom for side- or bottom-return applications
- Coil and furnace fit flush for most installations
| Model | GSX130241,CAPF1824B6,GMVC960603BN |
|---|---|
| UPC | 663051539952 |
| AHRI Number | 201388393 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency | 14 SEER |
| EER | 11.5 |
| Region Compatibility | North |
| California Residents | see Prop 65 WARNING |
GMVC960603BN Specifications:
| Model | GMVC960603BN |
|---|---|
| UPC | 663051469242 |
| AHRI Number | 7368833 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Blower Motor | Variable Speed |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 117.000000 |
| Primary Heating Capacity | 55,001 - 60,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches, 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement |
CAPF1824B6 Specifications:
| Model | CAPF1824B6 |
|---|---|
| UPC | 663051450097 |
| Product Height (in) | 18 |
| Air Flow Direction | Vertical |
| Product Length (in) | 21 |
| Cooling Capacity | 1.5 Ton, 2 Ton |
| Product Width (in) | 17.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 35.000000 |
| Suction Line Size | 3/4 inch |
| Warranty | 10 Year Parts |
Shipping & Delivery
Effective and efficient shipping practices are critical for an online business. That’s why we try our best to ship products within 24-36 hours of receiving your order. It’s why we have no hidden fees, send you tracking information as soon as we receive it, and work with our freight carriers to have units delivered as quickly as possible once they leave our warehouse. If you ever have any questions about shipping, call us at 1-270-575-9595. Notice that shipping outside of the continental US require an additional shipping fee.
Shipping Damage & Missing Items
Unpack and inspect ALL packages for damaged or missing items before accepting your shipment. If any damage is found, note this on the delivery receipt. Although Ingrams Water & Air Equipment is NOT responsible for shipping damage, we can assist with filing a claim against the shipping carrier to cover the cost of damages. Any damages or missing items have to be noted on the delivery receipt prior to signing for and accepting your shipment in order to file a claim. Do not let the delivery driver rush you. It is your right to inspect each and every item. If the delivery driver refuses to wait or doesn't allow you to inspect your items prior to signing, please call us immediately at 1-270-575-9595 and our claims department can offer assistance.
