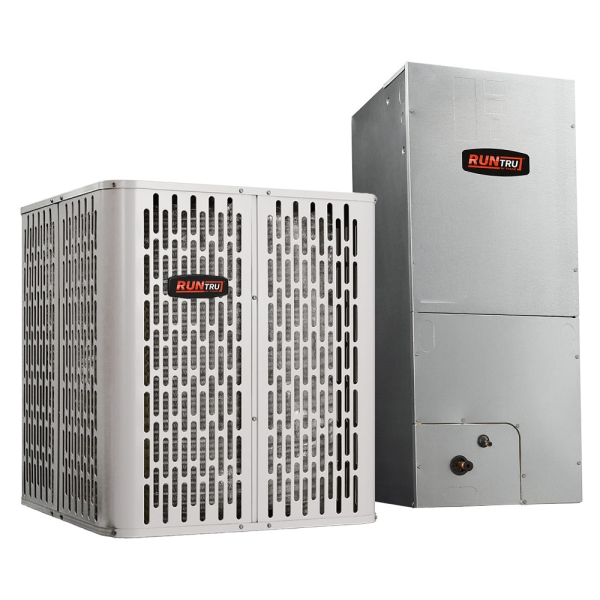

2 Ton 15.2 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System - Multiposition

Item
HA23708
Models A4HP5024D1000A, A4AH4E24A1B60
Condition
New


Customize 2 Ton 15.2 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System - Multiposition

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    2 Ton 15.2 SEER2 Trane RunTru Central Heat Pump Condenser
    Item: HA23694 Model: A4HP5024D1000A
    Qty: 1

    Affordable HVAC Installation


    What's included

    Feeling worn out from battling your outdated heat pump system? The time has come to close the door on unpredictable temperature swings and relax in a new era of reliability with the 2 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System. Boasting both AHRI and UL 1995 certifications as well as a SEER2 rating of 16, you can take comfort in the knowledge that every performance claim has been validated to guarantee your 1000 to 1200 square foot space enjoys consistent climate control. Designed to operate at peak performance even in stifling temperatures of up to 115 degrees Fahrenheit, this Trane Split System excels even in some of the most tropical regions. While the default configuration of this Trane Heat Pump cools your space to a comfortable 55 degrees Fahrenheit, a range of optional ambient kits give you the tools to lower your home's temperature to an impressively low 20 degrees Fahrenheit, promising the adaptability required to meet your desired home atmosphere.

    The heat pump system integrated into the 2 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System makes use of a plethora of carefully chosen features to deliver consistent results. The unit's casing, crafted from heavy-gauge galvanized steel, is further reinforced by a weather-resistant powder paint coating. Bolstering this resilience, all panels have successfully passed an intensive 1000-hour salt spray test, ensuring durability over the years. The condenser coil is gifted with even greater safeguarding by louvered panels on all four sides, decreasing air resistance and increasing heat transfer. Delivered fully charged with ten feet of tested connecting line, this Trane Heat Pump arrives ready to go with all the tools necessary to simplify the setup process, saving you both time and cost.

    The air handler in the 2 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System shows off an equivalently outstanding résumé. Sporting one uniform color and loaded with captured foil-faced insulation, this Trane Air Handler achieves an R-4.2 insulating value while upholding an out-of-this-world air leak percentage of 2% or less. The all-aluminum coil fights off corrosion while offering options for upflow, downflow, and horizontal left or right orientation, providing this 2 Ton Trane with the hardware versatility needed to flex to your home's specific layout. The easily removable horizontal drain pan even simplifies common servicing tasks.

    With all these advantages and more, why wait another second? Elevate your home's comfort with this Trane Heat Pump bundle and transform your home into your personal haven.

    More Information
    Model A4HP5024D1000A,A4AH4E24A1B60A
    UPC 601954744172
    AHRI Number 212579308
    Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
    Bundle Cooling Capacity 2 Ton
    Bundle Cooling Efficiency (SEER2) 15.2
    EER2 12
    Heat Pump Efficiency (HSPF) 8.1
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    A4HP5024D1000A Specifications:

    More Information
    Model A4HP5024D1000A
    UPC 601954744172
    AHRI Number 212579308
    Product Height (in) 33
    Avg Coverage Area 1,000 - 1,200 Sq Ft
    Product Length (in) 30
    Compressor Single Stage
    Product Width (in) 30
    Cooling Capacity 2 Ton
    Electrical Phase 1-Phase
    Heat Pump Efficiency (HSPF) 8.1
    Heat Pump Efficiency (HSPF2) 8.1
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 25 amps
    Weight (lbs) 196.000000
    Primary Heating Capacity 20,001 - 25,000 BTU
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 15.2
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    A4AH4E24A1B60 Specifications:

    More Information
    Model A4AH4E24A1B60
    UPC 647535648415
    Product Height (in) 45.13
    Configuration Floor Mounted
    Product Length (in) 21.13
    Air Flow Direction Downflow, Horizontal, Upflow
    Product Width (in) 18.5
    Blower Motor Multi Speed
    Cooling Capacity 2 Ton
    Electrical Phase 1-Phase
    Heat Strip Compatibility Up to 10 kW
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 116.000000
    Refrigerant R-410a
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts, 10 Year Evaporator Coil
