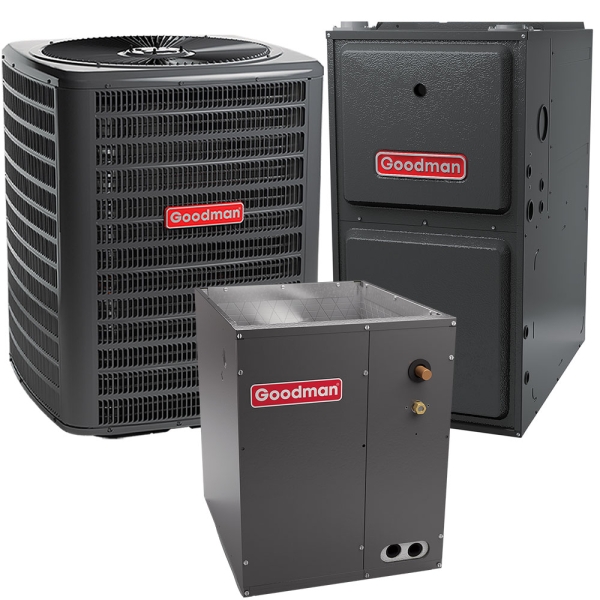

2 Ton 16 SEER 2 Stage 40k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Split System - Upflow

Item: HA11351
Models: DSXC160241 , GMVC960403BN , CAPF3636B6 , TX2N4
Condition: New
Goodman's 2 Ton, 2-Stage 40k BTU Variable Speed Gas & Electric Central Split System delivers comfort and dependability with top energy efficiency. 16 SEER and 96% AFUE efficient, this 2-ton DSXC160241 model is ideal for 1200 square feet and under. Goodman's CAPF3636B6 cased evaporator coil features aluminum fins and rifled copper tubing. The GMVC960403BN gas-fired UltraTech two-stage scroll compressor keeps R-410A refrigerant flowing. TX2N4 precision expansion valve. Upflow unit. Energy Star listed. 5-year warranty on parts and compressor.

Recommended Alternative:

  1. 2 Ton 16 SEER 2 Stage 40k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Split System - Upflow

    2 Ton 16 SEER 2 Stage 40k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Split System - Upflow

    Was: $3,532.00 See details...

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

3 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet 3 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet Item: HA10469 Model: CAPF3636B6 Qty: 1
1.5 to 2 Ton Goodman Thermostatic Expansion Valve Kit 1.5 to 2 Ton Goodman Thermostatic Expansion Valve Kit Item: HA11901 Model: TX2N4 Qty: 1

Overview

Goodman's 2 Ton, 2-Stage 40k BTU Variable Speed Gas & Electric Central Split System delivers comfort and dependability with top energy efficiency. 16 SEER and 96% AFUE efficient, this 2-ton DSXC160241 model is ideal for 1200 square feet and under. Goodman's CAPF3636B6 cased evaporator coil features aluminum fins and rifled copper tubing. The GMVC960403BN gas-fired UltraTech two-stage scroll compressor keeps R-410A refrigerant flowing. TX2N4 precision expansion valve. Upflow unit. Energy Star listed. 5-year warranty on parts and compressor.

Goodman 2 Ton 16 SEER 2 Stage Central Air Conditioner Condenser - DSXC160241

Goodman HA10533

Manufacturer Highlights

The Goodman® brand DSXC Series Air Conditioners offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with 2 low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of 6 fault codes
  • Color-coded terminal strip for non-communicating set-up
  • High- and low-pressure switches - Factory-installed filter drier
  • Coil and ambient temperature sensors
  • Two-speed, quiet condenser fan motor
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Goodman 40k BTU 96% AFUE Variable Speed 2 Stage Gas Furnace - GMVC960403BN

Goodman HA10687

Manufacturer Highlights

The Goodman® brand GMVC Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Aluminized-steel dual-diameter tubular heat exchanger
  • Two-stage gas valve operates with two-stage or single stage thermostats
  • ComfortNet™ Communications System compatible
  • Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
  • 120V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostic and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  • Multiple continuous fan speed options for quiet air circulation
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Quiet two-speed induced draft blower
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Designed for multi-position installation: Upflow, Horizontal left or right
  • Removable bottom for side- or bottom-return applications
  • Coil and furnace fit flush for most installations

Goodman 3 Ton Evaporator Coil - CAPF3636B6

Goodman HA10469

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DSXC160241,CAPF3636B6,GMVC960403BN,TX2N4
UPC 663051534124
AHRI Number 201070181
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
Bundle Cooling Capacity 2 Ton
Bundle Cooling Efficiency 16 SEER
EER 13
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

DSXC160241 Specifications:

Model DSXC160241
UPC 663051534124
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Two Stage
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Product Height (in) 32.25
Product Length (in) 29
Product Width (in) 29
Cooling Efficiency 16 SEER
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight (lbs) 198.0000
Region Compatibility Nationwide

GMVC960403BN Specifications:

Model GMVC960403BN
UPC 663051469235
AHRI Number 7368841
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 750 - 900 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 35,001 - 40,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 17.5
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 114.0000

CAPF3636B6 Specifications:

Model CAPF3636B6
UPC 663051446908
Air Flow Direction Vertical
Cooling Capacity 3 Ton
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height (in) 22
Product Length (in) 21
Product Width (in) 17.5
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight (lbs) 44.0000

TX2N4 Specifications:

Model TX2N4
UPC 681344921383
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Warranty 1 Year
Weight (lbs) 2.0000
