2 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser

Item: HA10540
Model: DSZC160241
Condition: New

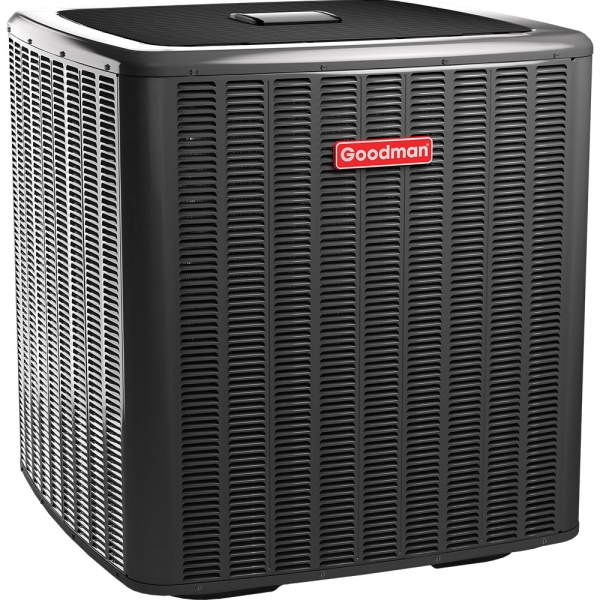

2 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser Zoom

Photo Gallery

We firmly believe the best solution for your home is dual-stage HVAC equipment like the Goodman DSZC160241 2 Ton 16 SEER 2-Stage Heat Pump Condenser. It uses a Copeland UltraTech Two-Stage Scroll Compressor to deliver unparalleled air comfort, high efficiency, and superior operating versatility. It features always high quality Goodman components, AHRI certification, a Lifetime Limited Compressor Warranty, and a 10-Year Parts Limited Warranty.

Recommended Alternative:

  1. 2 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser

    2 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser

    Was: $2,040.00 See details...

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

Goodman brings you a highly efficient condenser that was built to last! The 2 Ton 16 SEER 2 Stage Goodman DSZC160241 Central Heat Pump Condenser comes with a lifetime warranty and is designed with top quality in mind! The Copeland scroll compressor is much different than your typical reciprocating compressor as it runs more quietly and smoothly. With the included compressor sound blanket, you should have a much happier experience than you did with your old condenser. The two stages of heating and cooling will only work as hard as it needs on less demanding days, keeping your energy bills low.

The 2 Ton 16 SEER 2 Stage Goodman Central Heat Pump Condenser comes factory charged with the environmentally friendly R410 a refrigerant making installation a breeze. With dimensions of 29 x 29, it shouldn't take up much space on the side of your home and the sleek green finish should blend nicely with your exterior decor. The cooling capacity can accommodate spaces that are 900 to 1400 square feet. To ensure you get the right size for your home, it may be useful to have a Manual J Heat Load Calculation performed.

Goodman has been supplying the HVAC industry for decades, providing consumers with quality products at an affordable price. Keep your home toasty in the winter and cool in the summer with one of Goodman's best condensers. When upgrading from older inefficient equipment, you may qualify for an energy saving rebate with the purchase of the equipment. Check your local rebate program to see if you qualify!

We firmly believe the best solution for your home is dual-stage HVAC equipment like the Goodman DSZC160241 2 Ton 16 SEER 2-Stage Heat Pump Condenser. It uses a Copeland UltraTech Two-Stage Scroll Compressor to deliver unparalleled air comfort, high efficiency, and superior operating versatility. It features always high quality Goodman components, AHRI certification, a Lifetime Limited Compressor Warranty, and a 10-Year Parts Limited Warranty.

Goodman HA10540

Manufacturer Highlights

The Goodman® brand DSZC Series Heat Pumps offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with two low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of six fault codes
  • Color-coded terminal strip for non-communicating set-up
  • SmartShift™ technology to ensure quiet, reliable defrost
  • Factory-installed bi-flow liquid line filter drier
  • Factory-installed suction line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Factory-installed coil and ambient temperature sensors
  • High- and low-pressure switches
  • Fully charged for 15' of tubing length
  • Two-speed quiet condenser fan motor
  • Sweat connection service valves with easy access to gauge ports
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Rust-resistant coated screws
  • Compact footprint
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model DSZC160241
UPC 663051509399
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Two Stage
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) Up to 9.5
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Primary Heating Capacity 20,001 - 25,000 BTU
Product Height 38.25
Product Length 29
Product Width 29
Cooling Efficiency 16 SEER
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight 208.0000
Region Compatibility Nationwide
