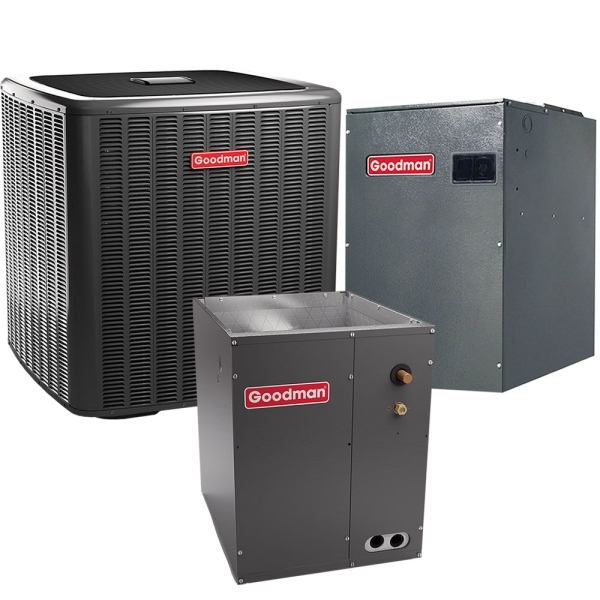

2 Ton 16 SEER 2 Stage Variable Speed Goodman Central Air Conditioner Split System - Vertical

Item: HA11354
Models: DSXC160241 , MBVC1200AA-1, CAPF3636B6 , TX2N4
Condition: New

2 Ton 16 SEER 2 Stage Variable Speed Goodman Central Air Conditioner Split System - Vertical Zoom

Photo Gallery

Related Videos

Get cool power from Goodman with this 2 ton, variable speed air conditioner central split system. The 16 SEER rating reflects the overall energy efficiency of Goodman's DSXC160241 series, plus the precision workings of MBVC1200AA variable speed modular. The engine speed is easy to change, and the formed, painted galvanized steel cabinet is rock solid. You can even add heating capabilities with a supplemental heat strip. 2-stage performance ensures steady airflow in this vertical unit.

Availability: Out of stock

$2,415.00 To see product price, add this item to your cart. You can always remove it later.

Price as configured:

$2,415.00 To see product price, add this item to your cart. You can always remove it later.

Call for availability

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

This Bundle Includes

3 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet 3 Ton Goodman Evaporator Coil - Vertical - 17.5" Cabinet Item: HA10469 Model: CAPF3636B6 Qty: 1
1.5 to 2 Ton Goodman Thermostatic Expansion Valve Kit 1.5 to 2 Ton Goodman Thermostatic Expansion Valve Kit Item: HA11901 Model: TX2N4 Qty: 1

* Required Fields

Goodman

What's Included

What customers are saying...



Overview

Product Features

Get cool power from Goodman with this 2 ton, variable speed air conditioner central split system. The 16 SEER rating reflects the overall energy efficiency of Goodman's DSXC160241 series, plus the precision workings of MBVC1200AA variable speed modular. The engine speed is easy to change, and the formed, painted galvanized steel cabinet is rock solid. You can even add heating capabilities with a supplemental heat strip. 2-stage performance ensures steady airflow in this vertical unit.

Goodman DSXC160241

Goodman HA10533

Manufacturer Highlights

The Goodman® brand DSXC Series Air Conditioners offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • R-410A chlorine-free refrigerant
  • Two-Stage Copeland® UltraTech™ scroll compressor
  • High-density foam compressor sound blanket
  • ComfortNet™ Communications System compatible
  • Expanded ComfortAlert™ diagnostics built in
  • Set-up capable with 2 low-voltage wires to outdoor unit
  • Diagnostic indicator lights and storage of 6 fault codes
  • Color-coded terminal strip for non-communicating set-up
  • High- and low-pressure switches - Factory-installed filter drier
  • Coil and ambient temperature sensors
  • Two-speed, quiet condenser fan motor
  • AHRI Certified; ETL Listed

Cabinet Features

  • Wire fan discharge grille
  • Steel louver coil guard
  • Baked-on powder paint finish
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Goodman MBVC1200AA-1

Goodman HA10943

Manufacturer Highlights

The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Variable-speed ECM blower motor
  • Direct drive, multi-speed PSC blower motor
  • ComfortNet™ Communicating System compatible
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW - 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain embossed finish
  • AHRI certified; ETL listed

Goodman CAPF3636B6

Goodman HA10469

Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • Rifled copper tubing and wave pattern aluminum fin coils
  • Cased Coil Cabinet Features
  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access
  • Accessories
  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model DSXC160241,CAPF3636B6,MBVC1200AA,TX2N4
UPC 663051534124
AHRI Number 201505094
Avg Coverage Area 1,000 - 1,200 Sq Ft
Cooling Capacity 2 Ton
Cooling Efficiency 16 SEER
EER 13
Region Compatibility Nationwide

Individual Item Specifications

DSXC160241 Specifications:

Model DSXC160241
UPC 663051534124
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Two Stage
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Product Height 32.25
Product Length 29
Product Width 29
Cooling Efficiency 16 SEER
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, Lifetime Compressor, 10 Year Unit Replacement
Weight 198.0000
Region Compatibility Nationwide

MBVC1200AA-1 Specifications:

Model MBVC1200AA-1
UPC 663051528062
Blower Motor Variable Speed
Condenser/Coil Compatibility 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
Cooling Capacity 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Product Height 26
Product Length 21
Product Width 17.5
Voltage 240
Warranty 10 Year Parts
Weight 67.0000

CAPF3636B6 Specifications:

Model CAPF3636B6
UPC 663051446908
Air Flow Direction Vertical
Cooling Capacity 3 Ton
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Product Height 22
Product Length 21
Product Width 17.5
Suction Line Size 3/4 inch
Warranty 10 Year Parts
Weight 44.0000

TX2N4 Specifications:

Model TX2N4
UPC 681344921383
Product Height 3.7
Product Length 9.7
Product Width 5.8
Warranty 1 Year
Weight 2.0000
