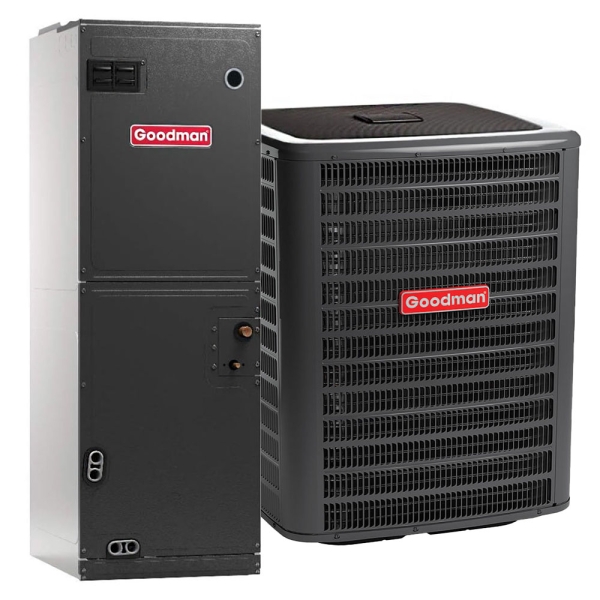

2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition

Item
HA23477
Models GSXC702410, AVPTC29B14
Condition
New
Was: Add to Cart for Discount

Customize 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    2 Ton 17.2 SEER2 Goodman Central Air Conditioner Condenser
    Item: HA22289 Model: GSXC702410
    Qty: 1

    What's included

    Delight in the reinvigorating chill of the 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition and lock the summer heat in its rightful place - outside. Every element of this Goodman Split System was hand selected to ensure reliable performance. The Air Conditioner not only adheres to UL 60335-2-40 standards but also adheres to the unit integrity standards specified in the 2020 Florida Building Code when equipped with the proper anchor bracket kit. The Air Handler exceeds two formidable ASHRAE 193 air leak standards: less than 2% at 1.0 inch of water and less than 1.4% at 0.5 inches of water. Both components obtain AHRI certification and ETL listing, providing verification of all operational claims. With the ability to manage areas ranging from 1000 to 1200 square feet and an outstanding SEER2 rating of 17.2, this 2 Ton Goodman system brings a frosty winter breeze to your home all summer long.

    The AC of the 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition comes strapped to the nines with powerful hardware that creates a cool, calm, and collected climate in your home. Constructed to streamline installation, this Goodman Air Conditioner features a factory-installed filter drier, transformer, and high/low pressure switches. With a steel louver coil guard, rust-resistant screws, and a heavy-gauge galvanized-steel cabinet finished with an architectural gray powder-paint with a 500-hour salt-spray, the internal components are protected from even some of the harshest weather conditions. The single-panel design to access the controls while leaving sufficient space for additional accessories means maintenance on this Goodman Split System is quick and painless.

    The air handler of the 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Multiposition is fully loaded with features that push refreshing air throughout your home. Internal factory-installed thermal expansion valves allow the corrosion-resistant, all-aluminum evaporator coil in this Goodman Air Handler with the flexibility to effortlessly work with cooling and heat pumps. This Goodman Split System is designed to hook up with your home's specific layout: horizontal and vertical configurations fit with your airflow output needs, the optional electric heater kits from 3kW-25kW add versatility to sustain even the most extreme needs, and even including built-in compatibility with multi-stage heat pump and cooling applications. Even in muggy climates, this Multi Speed Goodman doesn't compromise even an ounce with a screw-less back and sides that help reduce condensation and ensure resilience.

    With so many advantages at your fingertips, why wait any longer? Upgrade your AC to this Goodman Split System and enjoy a steaming cup of hot cocoa all summer long.


    2.5 Ton Variable Speed Goodman Air Handler - Multiposition - 17.5" Cabinet

    2.5 Ton Variable Speed Goodman Air Handler - Multiposition - 17.5

    Manufacturer Highlights

    The Goodman brand AVPTC Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

    Standard Features

    • Compatible with the ComfortNet™ Communicating System family of products
    • Maximum four low-voltage wires required for operation in communicating mode
    • Auto configuration of the airflow and tonnage in communicating mode
    • In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system's CFM for each individual mode of operation
    • R-410A refrigerant-compatible
    • Factory-installed thermal expansion valves for cooling and heat pump applications
    • Variable-speed ECM blower motor
    • All-aluminum evaporator coil
    • Provides constant CFM over a wide range of static pressure conditions independent of duct system; provides low CFM for efficient fan-only operation
    • CFM indicator
    • Improved humidity control and comfort
    • Compatible with heat pumps and variable capacity cooling applications
    • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
    • AHRI Certified; ETL Listed


    Cabinet Features

    • Fully insulated, painted steel cabinet with attractive Architectural Gray finish
    • Compact, versatile upflow, downflow, or horizontal multi-position installations
    • Low-voltage cabinet connections; control circuit is arranged to permit staging
    • Power supply on top; low-voltage entry on top or side
    • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
    • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
    • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model GSXC702410,AVPTC29B14
    UPC 663051642898
    AHRI Number 208683715
    Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
    Bundle Cooling Capacity 2 Ton
    Bundle Cooling Efficiency (SEER2) 17.2
    EER2 12.5
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    GSXC702410 Specifications:

    More Information
    Model GSXC702410
    UPC 663051642898
    Product Height (in) 39.25
    Avg Coverage Area 1,000 - 1,200 Sq Ft
    Product Length (in) 35.5
    Compressor Two Stage
    Product Width (in) 35.5
    Cooling Capacity 2 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 25 amps
    Weight (lbs) 236.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 17.2
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility Nationwide

    AVPTC29B14 Specifications:

    More Information
    Model AVPTC29B14
    UPC 663051527287
    Product Height (in) 53.438
    Configuration Floor Mounted
    Product Length (in) 21
    Air Flow Direction Downflow, Horizontal, Upflow
    Product Width (in) 17.5
    Blower Motor Variable Speed
    Cooling Capacity 2.5 Ton
    Electrical Phase 1-Phase
    Heat Strip Compatibility Up to 15 kW
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 129.000000
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
