2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical

Item
HA23509
Models GSXC702410, CAPTA3022B4, MBVC1200AA-1, TX2N4
Condition
New
Was: Add to Cart for Discount See Details...

Customize 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    Free Shipping

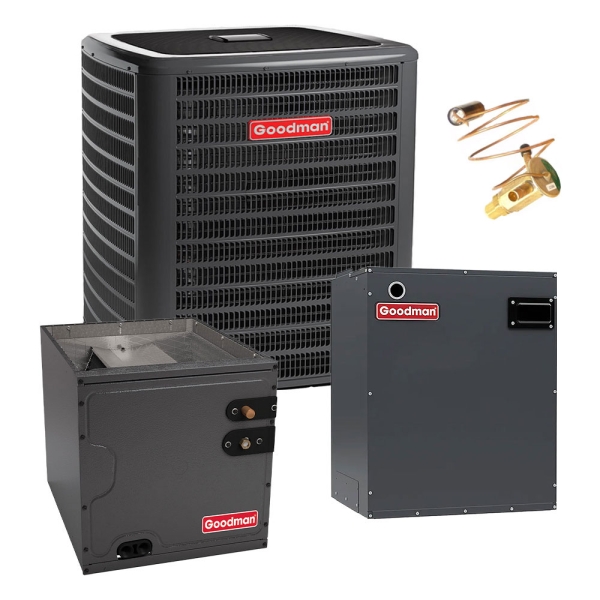

    What's included

    • Goodman GSXC702410
    • Goodman CAPTA3022B4
    • Goodman MBVC1200AA-1
    • Goodman TX2N4
    • Owner Manual
    • Lifetime Tech Support

    Don't endure fluctuating temperatures in your household any longer. Embrace the transition to the 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical and start enjoying the consistency you yearn for. Each and every element of this Goodman Split System was chosen to guarantee dependable results. The Air Conditioner not only conforms to UL 60335-2-40 standards but also complies with the unit integrity regulations outlined in the 2020 Florida Building Code when the suitable anchor bracket kit is properly installed. The Air Handler meets two significant air cabinet leak ASHRAE 193 standards, maintaining less than 2% at 1 inch of water and less than 1.4% at 0.5 inches of water. The AHRI certification and ETL listing on all components provide the assurance that all functional claims have been thoroughly tested. With the capability to control spaces ranging from 1000 to 1200 square feet and achieving an outstanding SEER2 rating of 17.2, this 2 Ton Goodman system releases your home from the scorching summer heat.

    Feel the unmatched cooling efficiency offered by the 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical. Manufactured to handle a variety of harsh weather conditions, this Goodman AC flaunts a robust steel louver coil guard, rust-resistant screws, and a heavy-gauge galvanized-steel cabinet finished with a 500-hour salt-spray coating. Sufficient space for accessories and easily accessible controls mean this Goodman Air Conditioner exhibits a pragmatic single-panel design. The setup process for this 2 Ton Goodman is made easy as pie with the addition of a factory-installed filter drier, transformer, and high/low pressure switches.

    The air handler integrated into the 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical is loaded with hardware designed to provide you with the reliability you've been seeking. This Goodman Air Handler chills your home down quickly and efficiently with a variable-speed ECM blower motor, CFM indicator, and foil-faced insulation within the casing. The flexibility housed in this Goodman Split System is remarkable, utilizing an adjustable low CFM, compatibility with multi-stage heat pump and cooling applications, and the optional 3kW-21kW electric heat kits. With a galvanized, leather grain-embossed finish, this 2 Ton Goodman is engineered for lasting performance.

    The 2 Ton 17.2 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical concludes the package with a robust final component in the evaporator coil. This all-aluminum Goodman Evaporator Coil employs a check flowartor to seamlessly integrate with both cooling and heat pump applications with a factory-installed thermal expansion valve. Leveraging foil-faced insulation and a rust-resistant, UV-resistant, DecaBDE-free thermoplastic drain pan, you can take in a fresh, crisp breath knowing that you won't have to wither in the sun's rays once you step through your front door.

    Curl up under a plush blanket, savor a hot cup of tea, and cherish the sheer solace provided by this extraordinary Goodman Split System.


    1.5 to 3 Ton Variable Speed Goodman Modular Blower - Multiposition - 17.5" Cabinet

    1.5 to 3 Ton Variable Speed Goodman Modular Blower - Multiposition - 17.5

    Manufacturer Highlights

    The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

    Standard Features

    • Variable-speed ECM blower motor
    • Direct drive, multi-speed PSC blower motor
    • ComfortNet™ Communicating System compatible
    • Auto configuration of the airflow and tonnage in communicating mode
    • Provides constant CFM over a wide range of static pressure conditions independent of duct system
    • CFM indicator
    • Fault recall of six most recent faults
    • Provides adjustable low CFM for efficient fan-only operation
    • Improved humidity and comfort control
    • Built-in compatibility with multi-stage heat pump and cooling applications
    • 3 kW - 21 kW electric heat kits
    • Blower section usable as electric heater
    • Horizontal or vertical configuration capabilities
    • 21" depth for easier attic access
    • Foil-faced insulation covers the internal casing to reduce cabinet condensation
    • Galvanized, leather grain embossed finish
    • AHRI certified; ETL listed
    More Information
    Model GSXC702410,CAPTA3022B4,MBVC1200AA-1,TX2N4
    UPC 663051642898
    AHRI Number 208683728
    Bundle Avg Coverage Area 1,000 - 1,200 Sq Ft
    Bundle Cooling Capacity 2 Ton
    Bundle Cooling Efficiency (SEER2) 17.2
    EER2 12
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    GSXC702410 Specifications:

    More Information
    Model GSXC702410
    UPC 663051642898
    Product Height (in) 39.25
    Avg Coverage Area 1,000 - 1,200 Sq Ft
    Product Length (in) 35.5
    Compressor Two Stage
    Product Width (in) 35.5
    Cooling Capacity 2 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 25 amps
    Weight (lbs) 236.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 17.2
    Suction Line Size 3/4 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts
    Region Compatibility Nationwide

    CAPTA3022B4 Specifications:

    More Information
    Model CAPTA3022B4
    UPC 663051629455
    Product Height (in) 22
    Air Flow Direction Downflow, Upflow
    Product Length (in) 21
    Cooling Capacity 2.5 Ton
    Product Width (in) 17.5
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 48.000000
    Refrigerant R-410a
    Suction Line Size 3/4 inch
    Warranty 10 Year Parts

    MBVC1200AA-1 Specifications:

    More Information
    Model MBVC1200AA-1
    UPC 663051528062
    Product Height (in) 26
    Blower Motor Variable Speed
    Product Length (in) 21
    Condenser/Coil Compatibility 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
    Product Width (in) 17.5
    Cooling Capacity 1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
    Electrical Phase 1-Phase
    Max Overcurrent Protection 15 amps
    Weight (lbs) 67.000000
    Voltage 240
    Warranty 10 Year Parts

    TX2N4 Specifications:

    More Information
    Model TX2N4
    UPC 681344921383
    Product Height (in) 3.7
    Product Length (in) 9.7
    Product Width (in) 5.8
    Weight (lbs) 2.000000
    Warranty 1 Year
