This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.
Out of stock
Loading...

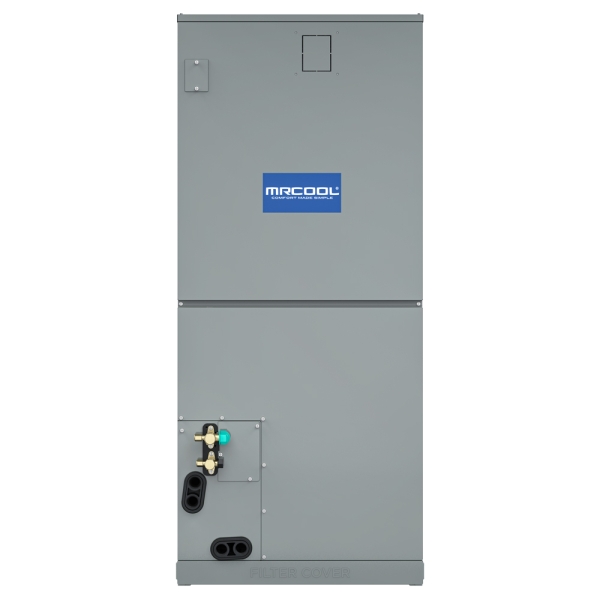

The 2 Ton MrCool Hyper Heat Central Ducted Air Handler is an affordable and outstanding solution for creating a highly efficient and comfortable environment in your home. It boasts an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating up to 10, owing to its enhanced heating capacity. This advanced handler can maintain a cozy temperature indoors even when external conditions plummet to -22 degrees F or soar to 122 degrees F. As a result, you can be more productive during the day and enjoy restful sleep at night. Furthermore, it serves as an excellent and cost-effective upgrade option to replace older, less efficient units.
Accessories
Description / Documents

The 2 Ton MrCool Hyper Heat Central Ducted Air Handler is an affordable and outstanding solution for creating a highly efficient and comfortable environment in your home. It boasts an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating up to 10, owing to its enhanced heating capacity. This advanced handler can maintain a cozy temperature indoors even when external conditions plummet to -22 degrees F or soar to 122 degrees F. As a result, you can be more productive during the day and enjoy restful sleep at night. Furthermore, it serves as an excellent and cost-effective upgrade option to replace older, less efficient units.

Constructed from high-quality painted galvanized steel, the 2 Ton MrCool Hyper Heat Central Ducted Air Handler boasts a durable and well-crafted design. This ensures reliable heating and cooling performance for years, all while producing no more noise than an average room. The handler's compact design and slide-out blower make maintenance a breeze. Additionally, its removable filters enable you to maintain a clean and healthy environment for you and your family. The handler is equipped with a self-diagnostics panel for identifying error codes, which can also be detected on the provided wired thermostat. By monitoring these codes, you can save both time and money on maintenance expenses.

The 2 Ton MrCool Hyper Heat Central Ducted Air Handler can be effortlessly installed by an HVAC technician, as it is designed to work with the optional MrCool No-Vac Quick Connect Line Set. This feature allows for a quick and easy connection between the handler and the condenser, saving both time and money. Precharged with eco-friendly R410-A refrigerant, the line set eliminates the need for vacuuming or flare welding, typically required with conventional line sets, and is also kink-resistant. The air handler can be installed in various configurations, including upflow, downflow, horizontal left, and horizontal right, ensuring compatibility with existing ductwork without the need for alterations. Additionally, a separate heat kit can be purchased if required.

Equipped with a wireless remote, the air handler offers the innovative Follow Me feature, which enables the unit to adjust temperature and direct airflow according to your location in the room, ensuring comfort wherever you go. Additionally, the air handler comes with a wired thermostat for precise temperature control, providing you with a reliable way to set your desired temperature.

Having earned AHRI certification, the air handler has been verified through an impartial and precise assessment to reliably deliver on all the manufacturer's claims. In the rare event of any issues, the2 Ton MrCool Hyper Heat Central Ducted Air Handler comes with a reassuring 10-year warranty for parts and labor, giving you peace of mind. Additionally, there is no need to register for the included labor warranty.

Customer Reviews / Q&A
Specifications

System Overview

Model CENTRAL-24-HP-MUAH230A00
UPC 840255553100
AHRI Number 211497151
Product Height (in) 45
Configuration Floor Mounted
Product Length (in) 21
Air Flow Direction Downflow, Horizontal, Upflow
Product Width (in) 17.5
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 10 kW
Line Set Connection Type Quick Connect, Flared, or Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 127.430000
Refrigerant R-410a
Series Central Ducted
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Parts

HVAC Parts & Accessories

  1. Room Temperature Sensor for MrCool Central Air Handler

    Item #:: HAP12413

    Model: 11201007003563

    Price:

    $56.97
  2. Pipe Temperature Sensor for MrCool Central Air Handler

    Item #:: HAP13094

    Model: 11201007003441

    Price:

    $53.86
  3. Brushless DC Motor for MrCool Central Air Handler Central Ducted Series

    Price:

    $576.59
  4. Evaporator Assembly for MrCool Central Air Handler

    Item #:: HAP13111

    Model: 15823100000844

    Price:

    $411.52
