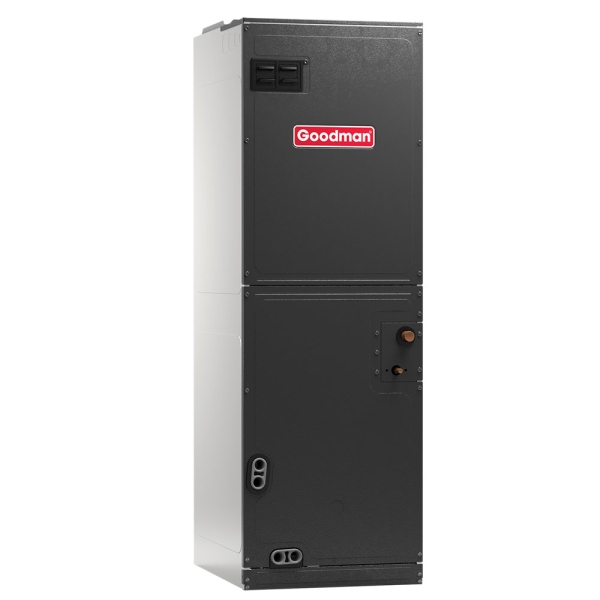

2 Ton Multi Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - Flowrater

Item: HA10303
Model: ARUF25B14
Condition: New

2 Ton Multi Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - Flowrater Zoom

Photo Gallery

If you're reading this, you probably need a new air handling unit. Or you have weird hobbies. Assuming the former, the Goodman ARUF25B Air Handler with SmartFrame is a solid option. It is a multi-position, multi-speed air handling unit with R410A refrigerant, all-aluminum evaporator coil, transformer and blower time-delay, coil-mounting track for quick repositioning, and the SmartFrame cabinet achieves less than a 2% leakage rate. Neat!

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

If you're reading this, you probably need a new air handling unit. Or you have weird hobbies. Assuming the former, the Goodman ARUF25B Air Handler with SmartFrame is a solid option. It is a multi-position, multi-speed air handling unit with R410A refrigerant, all-aluminum evaporator coil, transformer and blower time-delay, coil-mounting track for quick repositioning, and the SmartFrame cabinet achieves less than a 2% leakage rate. Neat!
Goodman HA10303

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model ARUF25B14
UPC 663051512467
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 10 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 45
Product Length (in) 21
Product Width (in) 17.5
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 100.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Why it is not recommended for use in mobile homes?
I would like to use this as an upflow heater in building that is 14 x 48 and am looking to add on air conditioning unit in future. Would this be appropriate? I don't really know what high static means when you say that is what mobile homes are.... this is a stick built building, not sure if that makes a difference since the size is similar to mobile home.
Would this work for a 16 x 80 mobile home?
When the description states that it can be used in a vertical position, does that mean as a down flow unit?
This unit comes with TXV already installed or this unit comes with a Piston ?
My heater no good. The fan only run and sometime hot .
