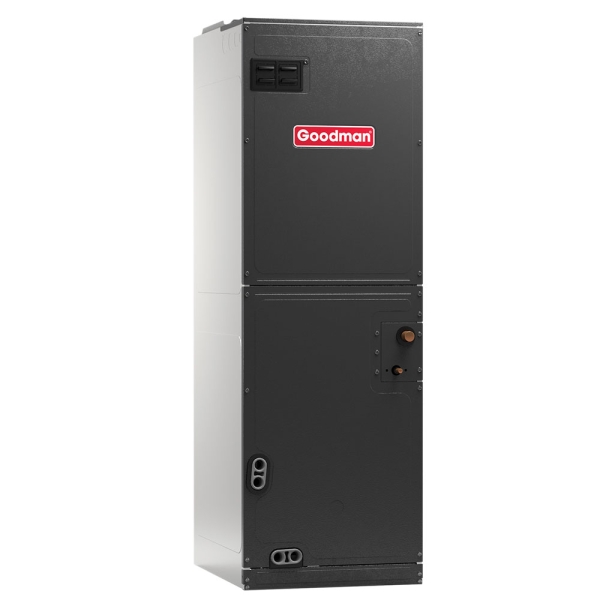

2 Ton Multi Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - Flowrater

Item: HA10304
Model: ARUF29B14
Condition: New

2 Ton Multi Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - Flowrater Zoom

Photo Gallery

The Goodman ARUF29 Multi-Position Multi-Speed Air Handler is the best thing since gravity. Okay, that might be an exaggeration, but it really is a terrific HVAC unit. This superior air handling unit features a check flowrator for cooling and heat pump applications, direct-drive PSC blower motor, all-aluminum evaporator coil, and a cabinet design that tested an air leakage less than 2% at 1.0 inch H20 in accordance with ASHRAE standard 193.

Availability: In stock

$838.00
Ingram Financing


Ships Within 1-2 Business Days

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman ARUF29 Multi-Position Multi-Speed Air Handler is the best thing since gravity. Okay, that might be an exaggeration, but it really is a terrific HVAC unit. This superior air handling unit features a check flowrator for cooling and heat pump applications, direct-drive PSC blower motor, all-aluminum evaporator coil, and a cabinet design that tested an air leakage less than 2% at 1.0 inch H20 in accordance with ASHRAE standard 193.
Goodman HA10304

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model ARUF29B14
UPC 663051513358
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 10 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 45
Product Length (in) 21
Product Width (in) 17.5
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 100.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Is the air handler a separate unit from the furnace or heater unit ?
Can you use this air handler as an electric furnace with heat strip? If so which heat strips can be used? Do you have to jump or change anything when not using a heat pump in conjunction. I plan to later buy either an ac or heat pump condenser, for now just electric with and air handler if possible?
Does it really support r22 and r410a? Does it require you to change the coil depending on the refrigerant?
What size is the filter
