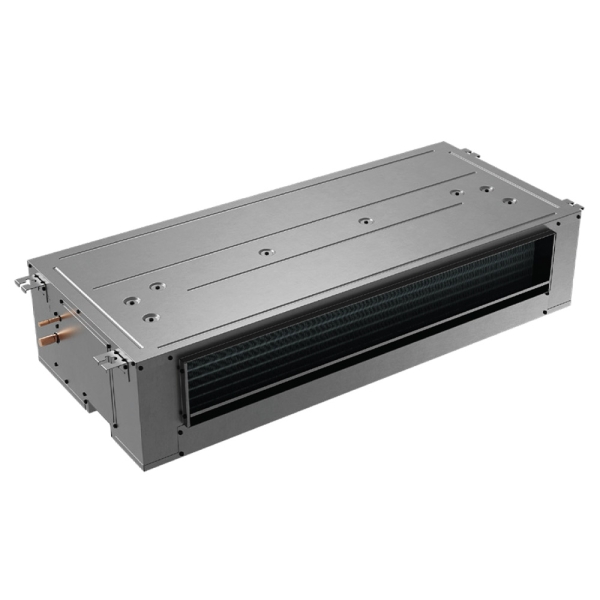

2 Ton Multi Speed Goodman Ceiling Mounted Air Handler - R32
GOODMAN

Accessories
Description / Documents
Whether you’re hoping for stronger performance, better efficiency, or a combination of the two, the new refrigerant standards have given the market a range of potential options to fit your needs. With the 2 Ton Multi Speed Goodman Ceiling Mounted Air Handler - R32, you can gain not only these benefits, but the additional safe saving effects that come from an HVAC system whose installation saves you space. Supported by both AHRI certification and ETL listing, this Goodman Ceiling Mounted Air Handler undergoes intensive third-party testing to showcase the validity of every functional claim. Able to manage the climate in spaces between 1000 and 1200 square feet, this 2 Ton Goodman Handler is the right solution for your home.
Designed to make a noteworthy difference on the ambient level of comfort within your home, the 2 Ton Multi Speed Goodman Ceiling Mounted Air Handler - R32 is exactly what you’ve been looking for. An all-aluminum tube and fin coil effectively fight off corrosion and rust over time, maintaining peak performance for longer. The high-efficiency evaporator coil utilizes R32 refrigerant to decrease the global warming potential and boost the energy efficiency of the unit, guaranteeing this Goodman Air Handler can benefit your home beyond just temperature control. Thanks to factory installed hardware including the casing, mounting brackets, R32 sensor, and fully adjustable TXV, this Goodman Ceiling Mounted Handler is well-equipped to meet even the most intensive home climate control needs.
Going above and beyond to keep the unit in factory-fresh shape for longer, the cabinet of the 2 Ton Multi Speed Goodman Ceiling Mounted Air Handler - R32 effectively seals out any unwanted pollutants. Meeting ASHRAE standard 193 requirements, this Goodman Ceiling Mounted Handler has cabinet air leakage less than 2% at 1 inch of water to prove a dedication to efficiency. Thanks to a galvanized-steel design that provides both a primary and secondary drain connection option for its high-temperature plastic drain pan, this Goodman Handler effectively removes moisture to keep the internal hardware safe and dry over the years. With the option for either front or bottom return with easy service access, this Goodman Air Handler ensures you’ll enjoy the powerful performance required to keep the whole room comfortable.
With so many benefits well within your reach, why would you choose to delay your upgrade any further? Obtain this 2 Ton Goodman Ceiling Mounted Air Handler today and transform your living space into the peaceful sanctuary you’ve always wanted.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | ACST24LU1305 |
|---|---|
| UPC | 663051719491 |
| AHRI Number | 215894038 |
| Product Height (in) | 54.2 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 22.25 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 11 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 10 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 97.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 3/4 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
