This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

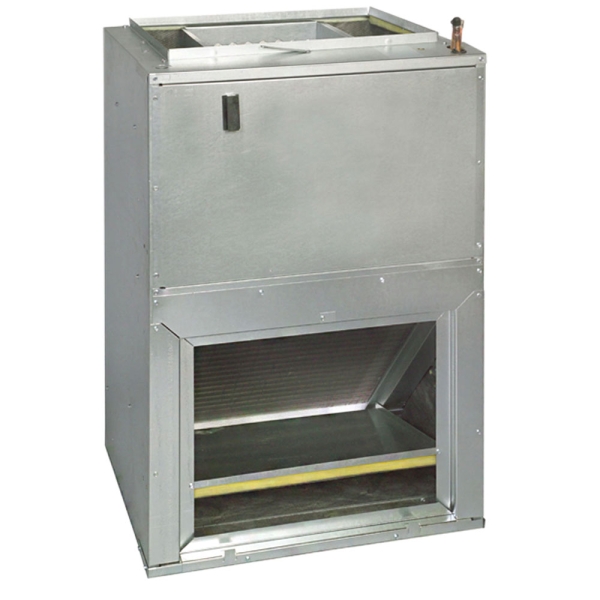

2 Ton Multi Speed Goodman Wall Mounted Air Handler - 3kW Heat Kit

Item: HA10443
Model: AWUF250316
Condition: New

2 Ton Multi Speed Goodman Wall Mounted Air Handler - 3kW Heat Kit Zoom

Photo Gallery

Trying to heat or cool a building with minimal space for bulky HVAC equipment? That is a problem you can solve with a versatile machine like the Goodman AWUF Series Wall-Mount Air Handler. This crack system is built around a flexible installation profile and total compatibility with elite Goodman products. It is protected by a 10-Year Parts Limited Warranty, and has both AHRI certification and ETL listing. Order your minimal space solution today.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Trying to heat or cool a building with minimal space for bulky HVAC equipment? That is a problem you can solve with a versatile machine like the Goodman AWUF Series Wall-Mount Air Handler. This crack system is built around a flexible installation profile and total compatibility with elite Goodman products. It is protected by a 10-Year Parts Limited Warranty, and has both AHRI certification and ETL listing. Order your minimal space solution today.
Goodman HA10443

Manufacturer Highlights

The Goodman AWUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Equipped with a Check Flowrater for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tubing coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) - front return only
  • Small chassis (1½- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model AWUF250316
UPC 663051525382
Air Flow Direction Upflow
Configuration Wall Mounted
Blower Motor Multi Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 3 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 20 amps
Primary Heating Capacity 10,001 - 15,000 BTU
Product Height (in) 36
Product Length (in) 20.25
Product Width (in) 16.125
Suction Line Size 5/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 84.0000
California Residents see Prop 65 WARNING
