This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

2 Ton Multi Speed Goodman Wall Mounted Air Handler - 8kW Heat Kit

Item: HA10445
Model: AWUF250816
Condition: New

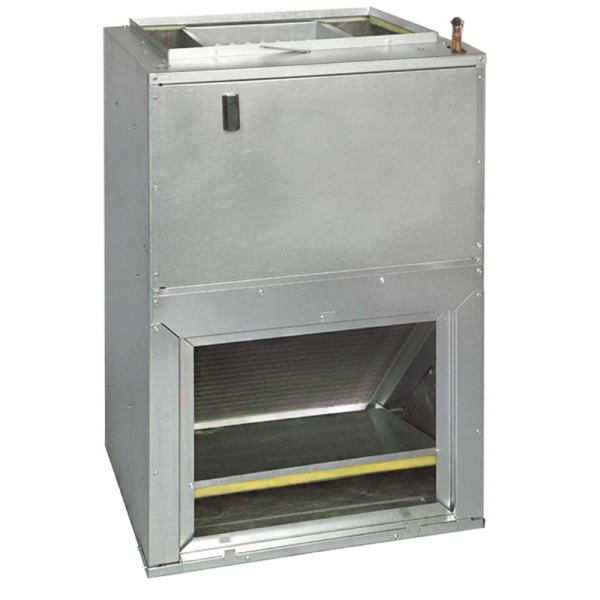

2 Ton Multi Speed Goodman Wall Mounted Air Handler - 8kW Heat Kit Zoom

Photo Gallery

A machine is only as good as the sum of its parts, and the Goodman AWUF Series Wall-Mounted Air Handler has a lot of good parts. For example, it has a wall-hanging bracket which lets buyers install this compact design in locations where another air handling unit simply could not operate. Its nickel chromium heating element innately resists rust, and its blower motor allows for real air volume variation. Basically, this unit's parts add up.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

A machine is only as good as the sum of its parts, and the Goodman AWUF Series Wall-Mounted Air Handler has a lot of good parts. For example, it has a wall-hanging bracket which lets buyers install this compact design in locations where another air handling unit simply could not operate. Its nickel chromium heating element innately resists rust, and its blower motor allows for real air volume variation. Basically, this unit's parts add up.
Goodman HA10445

Manufacturer Highlights

The Goodman AWUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Equipped with a Check Flowrater for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tubing coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2½- and 3-ton units) - front return only
  • Small chassis (1½- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model AWUF250816
UPC 663051525405
Air Flow Direction Upflow
Configuration Wall Mounted
Blower Motor Multi Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 8 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 40 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height (in) 36
Product Length (in) 20.25
Product Width (in) 16.125
Suction Line Size 5/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 84.0000
