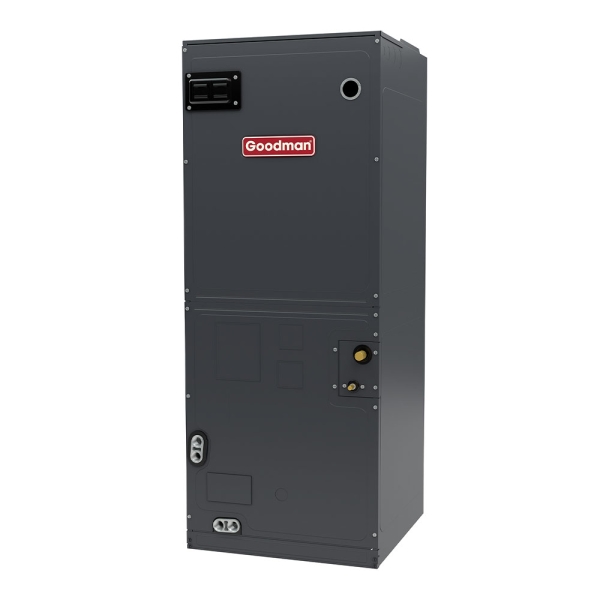

2 Ton Variable Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - 115v - R32
Shop All GOODMAN

In stock
Ships Within 2-3 Business Days
Description / Documents
The purpose of your HVAC system is to supply reliable heating and cooling performance. If your antiquated system is no longer up to the task, change up your home’s climate control with the 2 Ton Variable Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - 115v - R32. Earning AHRI certification, ETL listing, and UL 60335-2-40 compliance, the Goodman Air Handler proves the integrity of each performance and safety claim by passing intensive third-party inspections. Make the most of your 1000 to 1200 square foot home in every season with an upgrade to the 2 Ton Goodman Handler.
Equipped with a wide range of game changing features, the 2 Ton Variable Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - 115v - R32 won’t leave you wanting. The inclusion of an EEV, or electronic expansion valve, makes integrating with both ACs and heat pumps a simple task. Between the variable-speed ECM blower motor and CFM indicator, energy efficiency is optimized by using as little power as necessary to achieve your desired results. Thanks to an all-aluminum construction, the coil benefits from the inherent corrosion resistance of the element to bolster durability. Between the coil mounting track for swift repositioning and humidity control, the Variable Speed Goodman Air Handler has all the tools you need to make the most of your indoor ambiance in any season.
Able to effectively shield the inner workings from hazards, the housing of the 2 Ton Variable Speed Goodman Air Handler - Multiposition - 17.5" Cabinet - 115v - R32 makes it easy to enjoy consistent results over time. Thanks to a galvanized, leather grain-embossed cabinet with screw-less back and sides, and glue-less cabinet insulation retention to fasten the foil-faced insulation to the inside of the casing, condensation accumulation is mitigated in humid areas. The Goodman Air Handler is designed to keep cabinet air leakage rates under 2% at 1” of water and below 1.4% at 0.5” of water, adhering to ASHRAE standard 193. Crafted to accommodate vertical and left or right horizontal orientations, while offering tool-less filter access, the Goodman Multiposition Air Handler streamlines setup and servicing efforts to save you money at every turn.
Guaranteeing the reliable airflow that your home needs shouldn’t be a struggle for your HVAC system, so why continue to keep around an air handler that can’t handle your needs? Choose the 2 Ton Multiposition Variable Speed Goodman 115v Air Handler in a 17.5" Cabinet using R32 refrigerant today and enjoy your preferred temperatures in every inch of your home.
Customer Reviews / Q&A
Specifications
System Overview
| Model | AHVE24BP0300 |
|---|---|
| UPC | 663051735231 |
| Product Height (in) | 45 |
| Configuration | Floor Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Horizontal, Vertical |
| Product Width (in) | 17.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 115.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 3/4 inch |
| System Application Type | Central Split Systems |
| Voltage | 120 |
| Warranty | 10 Year Parts |
