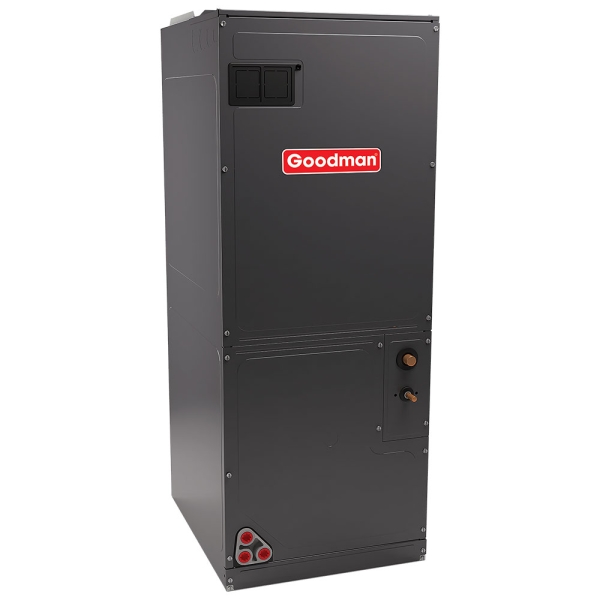

Any air handling unit can blow conditioned air at your face, but some are better than others. The Goodman AVPTC Series Multi-Position Variable-Speed Air Handler is among the latter. Configurable for vertical or horizontal operation and with 21 inch depth for easier attic access, the unit is flexible enough to meet stringent installation requirements without compromising capacity. Plus, it's protected by a 10-Year Parts Limited Warranty while being both AHRI certified and ETL listed.
Accessories
Description / Documents
Any air handling unit can blow conditioned air at your face, but some are better than others. The Goodman AVPTC Series Multi-Position Variable-Speed Air Handler is among the latter. Configurable for vertical or horizontal operation and with 21 inch depth for easier attic access, the unit is flexible enough to meet stringent installation requirements without compromising capacity. Plus, it's protected by a 10-Year Parts Limited Warranty while being both AHRI certified and ETL listed.
Customer Reviews / Q&A
Specifications

System Overview

Model AVPTC25B14
UPC 663051521162
Product Height (in) 45
Configuration Floor Mounted
Product Length (in) 21
Air Flow Direction Downflow, Horizontal, Upflow
Product Width (in) 17.5
Blower Motor Variable Speed
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 15 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 116.000000
Suction Line Size 3/4 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
