20 Ton 10 EER Daikin Commercial Air Conditioner Package Unit - Downflow

Item: HA10509
Model: DCC240XXX3VXXX
Condition: New

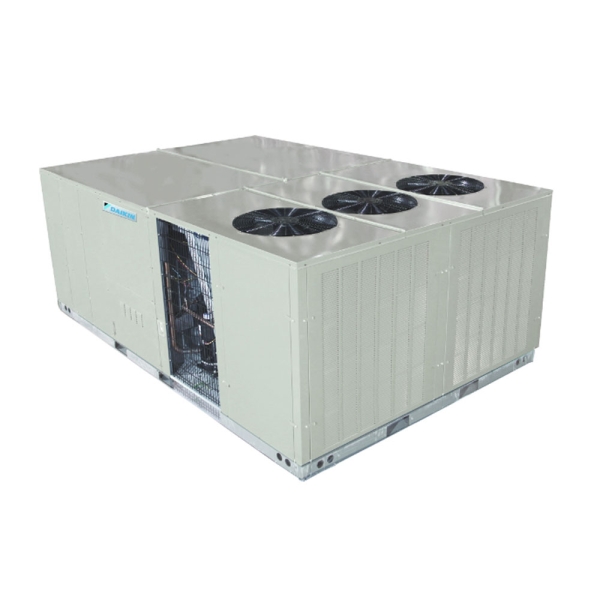

20 Ton 10 EER Daikin Commercial Air Conditioner Package Unit - Downflow Zoom

Photo Gallery

The Daikin DCC240 Commercial Package Air Conditioner makes commercial and light industrial cooling problems easy to solve. This HVAC unit is built around quality components like high efficiency scroll compressors, two-stage cooling, copper tube/aluminum fin coils, power block for field wiring, and a high-capacity, steel-cased filter drier. The cabinet itself is built out of galvanized-steel with a UV-resistant powder-paint finish. A 5-Year Parts Warranty is included, and the unit is both AHRI Certified and ETL Listed.

Availability: Out of stock

$13,418.88

Call for availability

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Overview

The Daikin DCC240 Commercial Package Air Conditioner makes commercial and light industrial cooling problems easy to solve. This HVAC unit is built around quality components like high efficiency scroll compressors, two-stage cooling, copper tube/aluminum fin coils, power block for field wiring, and a high-capacity, steel-cased filter drier. The cabinet itself is built out of galvanized-steel with a UV-resistant powder-paint finish. A 5-Year Parts Warranty is included, and the unit is both AHRI Certified and ETL Listed.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DCC240XXX3VXXX
AHRI Number 8813880
Air Flow Direction Downflow
Avg Coverage Area 3,000+ Sq Ft
Blower Motor Multi Speed
Compressor Single Stage
Cooling Capacity 6+ Ton
EER 10
Electrical Phase 3-Phase
Heat Strip Compatibility Up to 75 kW
Max Overcurrent Protection 125 amps
Product Height (in) 50.75
Product Length (in) 88.2
Product Width (in) 133.3
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 2202.0000
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
We have a 4200 sq ft commercial building that will be used for wedding receptions. Will this unit be sufficent?
Do you have a diagram of the footprint for the curb size? We are replacing a 20 ton rooftop carrier unit.
