This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

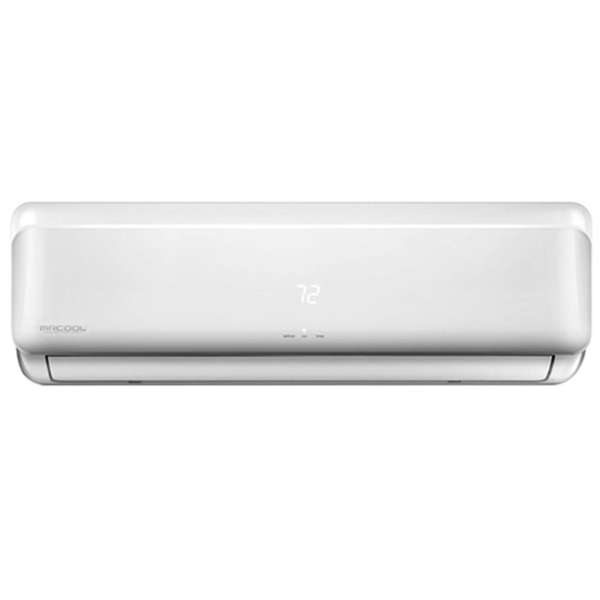

22k BTU MrCool Advantage Ductless Wall Mounted Air Handler

Item: HA11044
Model: A-22-HP-WMAH-230
Condition: New

22k BTU MrCool Advantage Ductless Wall Mounted Air Handler Zoom

Photo Gallery

Related Videos

This 22k BTU Wall Mounted Air Handler gives you all the performance and value one expects from the MRCOOL Advantage Series. It's convenient for installation and maintenance with a variable-speed motor that allows the system to respond to your needs with minimum wasted energy and maximum efficiency. R-410A refrigerant is the key to this unit's operating efficiency, and, as with the whole MRCOOL family of products, you get unlimited technical support for the life of the system.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool

What's Included

What customers are saying...



Overview

Product Features

This 22k BTU Wall Mounted Air Handler gives you all the performance and value one expects from the MRCOOL Advantage Series. It's convenient for installation and maintenance with a variable-speed motor that allows the system to respond to your needs with minimum wasted energy and maximum efficiency. R-410A refrigerant is the key to this unit's operating efficiency, and, as with the whole MRCOOL family of products, you get unlimited technical support for the life of the system.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model A-22-HP-WMAH-230
UPC 853962006043
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility NA
Lineset Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Product Height 12
Product Length 9
Product Width 41
Series Advantage
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 2 Year Parts
Weight 26.0000

Reviews

Customer Reviews

Q & A

Q&A: Ask Questions, Get Answers

Do you have questions about this product?

Does one compressor unit work with more than one air handler or do you need a compressor system for each air handler?
