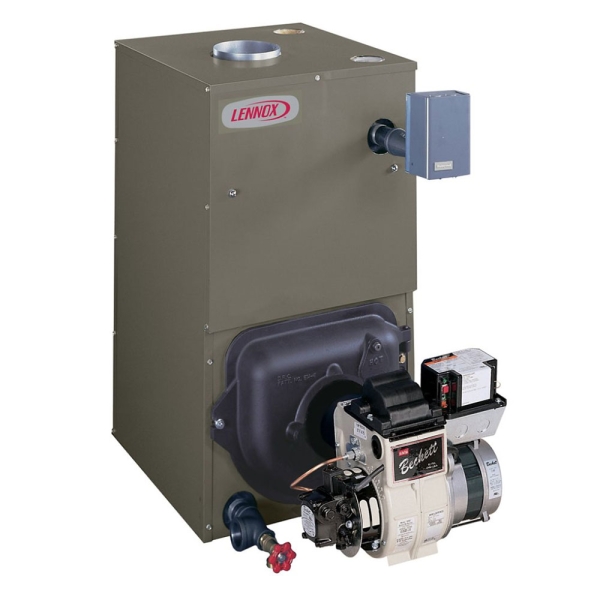

245k BTU 84.3% AFUE Lennox Oil Fired Water Boiler - Beckett Burner
Shop All LENNOX

Description / Documents
Trying to get your household tasks and chores completed before your hot water runs out shouldn’t be an Olympic sport. Get yourself the 245k BTU 84.3% AFUE Lennox Oil Fired Water Boiler - Beckett Burner and enjoy the ability to do your housework in any order that you see fit. Earning AHRI and CSA certifications as well as passing tests handled in accordance with ASME standards, you can rest assured that this 245k BTU Lennox Water Boiler utilizes its 5 distinct boiler sections and 13.7 gallon water capacity to effectively manage the hot water, radiant floor heating, baseboard heating, or zoned heating system in your home. A compact size of 44 inches x 21 inches x 36 inches even allows for straightforward installation in basements or utility rooms, guaranteeing to fit in whatever space best suits the needs of your home.
Outfitted with the powerful Beckett Oil Burner heating system, the 245k BTU 84.3% AFUE Lennox Oil Fired Water Boiler - Beckett Burner is ready to provide uncompromising results to your home. A heavy-duty PSC (permanent split capacitor) motor equates to quiet blower wheel and fuel pump operation. The high-pressure atomizing burner blends air with oil while the flame retention head agitates this solution, combining powers to maximize efficiency. In case of flame failure, the factory installed cadmium sulfide cell flame detector safely shuts down the unit. With all burner parts simple to remove with a swing mounted door that grants access to the combustion chamber and burner end cone, servicing this Lennox Water Boiler is a breeze to service for any licensed HVAC professional.
Not to be outperformed by the Beckett Burner, the remainder of the hardware selected for the 245k BTU 84.3% AFUE Lennox Oil Fired Water Boiler - Beckett Burner continues this path of excellence. The boiler sections and push nipples are all crafted from cast iron, leading to a long life of uniform expansion and contraction to uphold a watertight seal over the years. A wet base design means water circulation can cover the entirety of the heat exchanger surface, offering the maximum amount of heat transfer possible. With a small opening in the cast iron burner swing door, you can even inspect the flame without complication.
With so many benefits at your disposal, why put off your decision any longer? Secure yourself this Lennox Oil Fired Water Boiler and transform your home into the warm water oasis of your dreams.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | COWB3-5 |
|---|---|
| AHRI Number | 200082879 |
| Product Height (in) | 36 |
| Gas Furnace Efficiency | 84% |
| Product Length (in) | 44 |
| Boiler Sections | 5 |
| Product Width (in) | 21 |
| Burner | Beckett |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Oil |
| Gas Valve | Two Stage |
| Load Connection | 1 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 683.000000 |
| Primary Heating Capacity | 145,001+ BTU |
| Voltage | 120 |
| Warranty | 10 Year Parts, 20 Year Heat Exchanger |
| Water Capacity | 13.7 Gallons |
