This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

24k BTU 16 SEER MrCool Advantage Ductless Heat Pump Condenser

Item: HA11013
Model: A-24-HP-C-230A
Condition: New

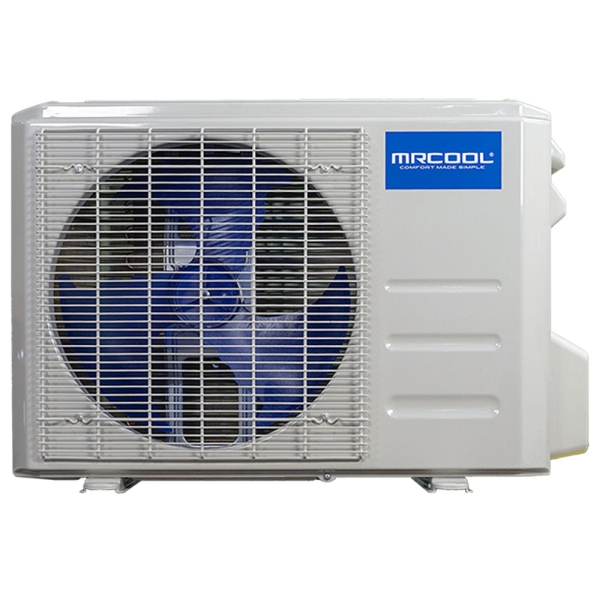

24k BTU 16 SEER MrCool Advantage Ductless Heat Pump Condenser Zoom

Photo Gallery

Picture 1,000 sq ft of consistent, energy-wise temperature control. Now picture an energy bill that won't overheat your budget. That's what you get with this 24k BTU 16 SEER Ductless Heat Pump Condenser from MRCOOL. The A-23-HP-C-230A is ETL certified and AHRI listed with a 1-year compressor and 2-year parts warranty. Other quality features include Auto Restart Function and Louver Position Memory. A 16 ft. installation kit is included.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool
Up to 30% Off - Call for Info

What's Included

What customers are saying...



Overview

Picture 1,000 sq ft of consistent, energy-wise temperature control. Now picture an energy bill that won't overheat your budget. That's what you get with this 24k BTU 16 SEER Ductless Heat Pump Condenser from MRCOOL. The A-23-HP-C-230A is ETL certified and AHRI listed with a 1-year compressor and 2-year parts warranty. Other quality features include Auto Restart Function and Louver Position Memory. A 16 ft. installation kit is included.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model A-24-HP-C-230A
UPC 852895007325
Avg Coverage Area 1,000 - 1,200 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 9.0
Line Set Connection Type Flared
Liquid Line Size 3/8 inch
Max Overcurrent Protection 25 amps
Primary Heating Capacity 20,001 - 25,000 BTU
Product Height (in) 28
Product Length (in) 15
Product Width (in) 34
Cooling Efficiency 16 SEER
Series Advantage
Suction Line Size 5/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 2 Year Parts, 1 Year Compressor
Weight (lbs) 137.0000
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
What size do I need for a 1600 foot home?
I have an indoor Mr Cool Split unit 24k gen 2. the Serial number is 3407434670692100120106. Model DIY - 24 - HP WMAH - 230AE. I see that you have an outside unit Model A-24-HP-C-230A. Would this outside unit be compatible with my unit? If not would you have the specs and cost for your unit that would be compatible.

Thanks Gary
how many many zones is this unit
