24k BTU 17 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32
Shop All IWAE

Accessories
Description / Documents
Whether your home has a central system that struggles in a single area or a detached room that can’t support ductwork, you don’t have to settle. With the 24k BTU 17 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32, you can give any individual zone year-round climate control. Earning a SEER2 rating of 17, an HSPF2 rating of 8, and the backing of both AHRI certification and ETL listing, the IWAE S-Series Heat & AC System proves its safe, reliable operation by passing a variety of third-party testing. Keep your bedroom frigid, heat up your garage, and make the most of any 1000 to 1200 square foot space with the 24k BTU IWAE Ductless Mini Split.

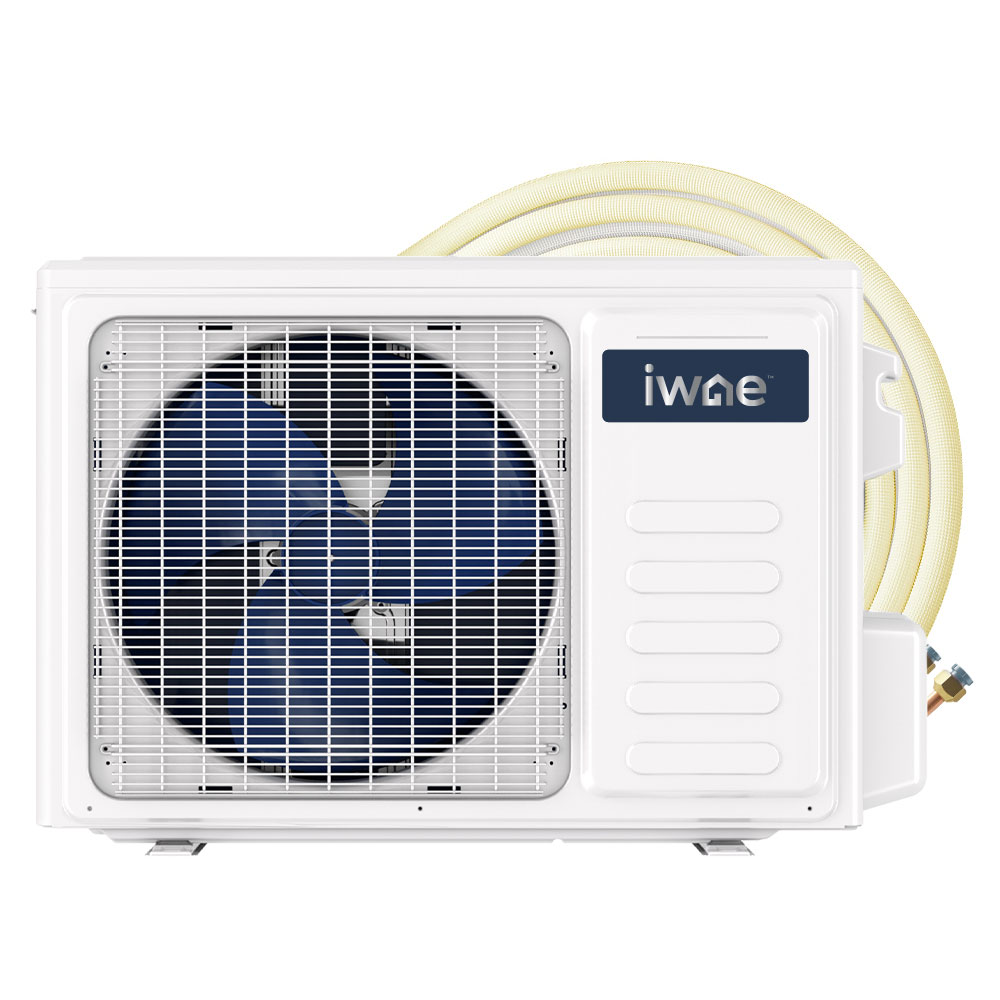

Built to support a range of climates, the condenser in the 24k BTU 17 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32 can handle some extreme conditions. In summer heat as high as 118 degrees Fahrenheit and winter chills as low as 14 degrees Fahrenheit, the IWAE Mini Split System won’t falter. The energy-efficient scroll compressor reduces the frequency of maintenance calls by eliminating many of the parts that break the easiest, ensuring top-tier efficiency and consistency. Even if you live under the watchful eye of a strict HOA, the IWAE S-Series Condenser and its quiet 57dB sound level keep you comfortable without issue.

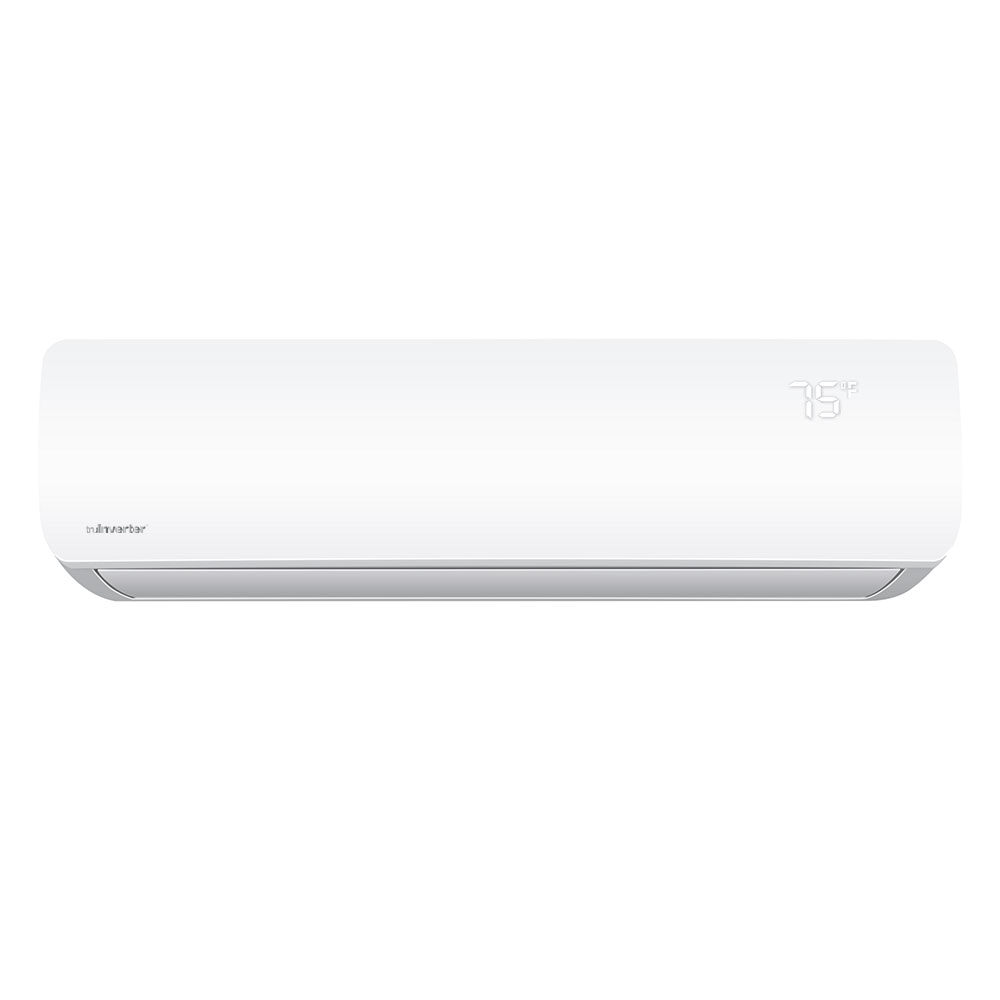

Hitting every corner of the room, the air handler in the 24k BTU 17 SEER2 IWAE S-Series Ductless Mini Split Heat & AC System - R32 won’t leave you wanting. R32 refrigerant lowers the IWAE Handler’s electricity usage by around 10%, all while dropping the system’s GWP roughly 30% more than R410A systems. You can save even more thanks to wifi compatibility that lets you save energy while you’re gone without leaving you dealing with discomfort when you finally come back home. Since you can change and keep tabs on the system from anywhere with a signal, you can set your ideal temperature as you’re leaving work and come home to total comfort. When even the strongest setting is only 51dB, it’s easy to see why the IWAE S-Series Air Handler is the perfect way to prioritize your comfort beyond mere temperature regulation.
All it takes is a licensed contractor to tackle installation to enjoy the reliable climate control you want with the support of dedicated tech support and warranty coverage that includes 1 year on parts and 7 years on the compressor. What more could you want? Acquire a 24k BTU IWAE S-Series Ductless Mini Split Heat & AC System utilizing R32 refrigerant today and give any room that needs support a powerful, affordable heating and cooling solution that just won’t quit.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | AEPLIWMHV17S2431S1A,AEPLIWAWM17E2431S1A |
|---|---|
| AHRI Number | 218465672 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 17 |
| Heat Pump Efficiency (HSPF2) | 8 |
| Series | S-Series |
| Zones | 1 |
| Region Compatibility | Nationwide |
AEPLIWMHV17S2431S1A Specifications:
| Model | AEPLIWMHV17S2431S1A |
|---|---|
| AHRI Number | 218465672 |
| Product Height (in) | 16.93 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 26.38 |
| Compressor | Inverter |
| Product Width (in) | 37.21 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 79.560000 |
| Primary Heating Capacity | 20,001 - 25,000 BTU |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 17 |
| Series | S-Series |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 1 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
AEPLIWAWM17E2431S1A Specifications:
| Model | AEPLIWAWM17E2431S1A |
|---|---|
| Product Height (in) | 13.15 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.13 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 40.55 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 10 amps |
| Weight (lbs) | 30.250000 |
| Refrigerant | R-32 |
| Series | S-Series |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 1 Year Parts, 7 Year Compressor |
