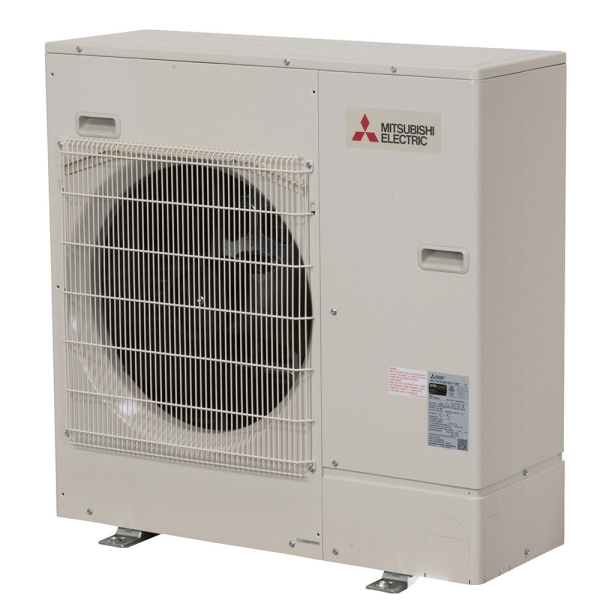

24k BTU 20.5 SEER Mitsubishi P Series Ductless Heat Pump Condenser
Shop All MITSUBISHI

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
This condenser has been quality assembled and tested in the harshest of conditions before leaving the Mitsubishi factory, ensuring you get a product that is up to industry standard. It is built with galvanized steel plate, finished with electrostatically applied corrosion protection making the outer shell durable enough to last for many years. The front fan grille is not only designed to withstand harsh conditions, but is created from high-impact ABS plastic to ensure you are getting a product that can handle extreme heat and frigid conditions.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | PUZ-A24NHA7 |
|---|---|
| UPC | 00622632121726 |
| Product Height (in) | 37.125 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 14.2 |
| Compressor | Inverter |
| Product Width (in) | 37.4 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | Up to 11 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 179.000000 |
| Primary Heating Capacity | 20,001 - 25,000 BTU |
| Refrigerant | R-410a |
| Cooling Efficiency | 19 SEER and Above |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
