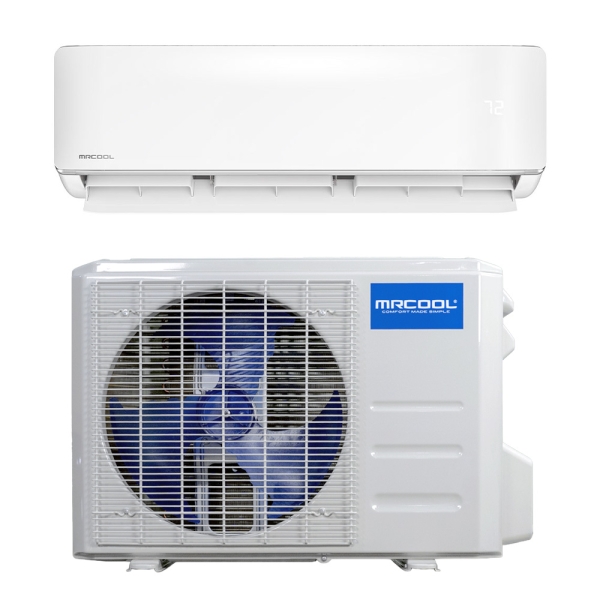

24k BTU 20.5 SEER2 MrCool Ductless Heat Pump Split System - Mixed Series - R410A
Shop All MRCOOL

Description / Documents
Having every room in your home supplied with a single temperature works well for some and causes issues for others. Whether you have a structure without ductwork like a garage or shed, or if the wall of windows in your bedroom leaves you sweating through the night, the 24k BTU 20.5 SEER2 MrCool Ductless Heat Pump Split System - Mixed Series - R410A can make a world of difference. Earning both AHRI and Energy Star certifications, the MrCool Ductless Heat Pump underwent intensive examinations to prove the accuracy of every performance and efficiency claim. Guarantee the exact indoor conditions you crave, even in the room the struggles in extreme conditions, with a 24k BTU MrCool Mixed Series Split System.
Designed to make a positive impact on your everyday comfort, the Olympus E Star condenser in the 24k BTU 20.5 SEER2 MrCool Ductless Heat Pump Split System - Mixed Series - R410A won’t fall shy of crafting your ideal indoor ambiance. Thanks to the Gold Fin coating that supplies the coils with corrosion resistance, the MrCool Condenser is a great fit for harsh environments like industrial zones and coastal climates. The low ambient cooling abilities stop the coils from freezing during the in-between months where the days are toasty and the nights have a bite. Lowering your utility bills with its efficient operation, the MrCool Mixed Series Heat Pump is exactly what you need to optimize your comfort from every angle.

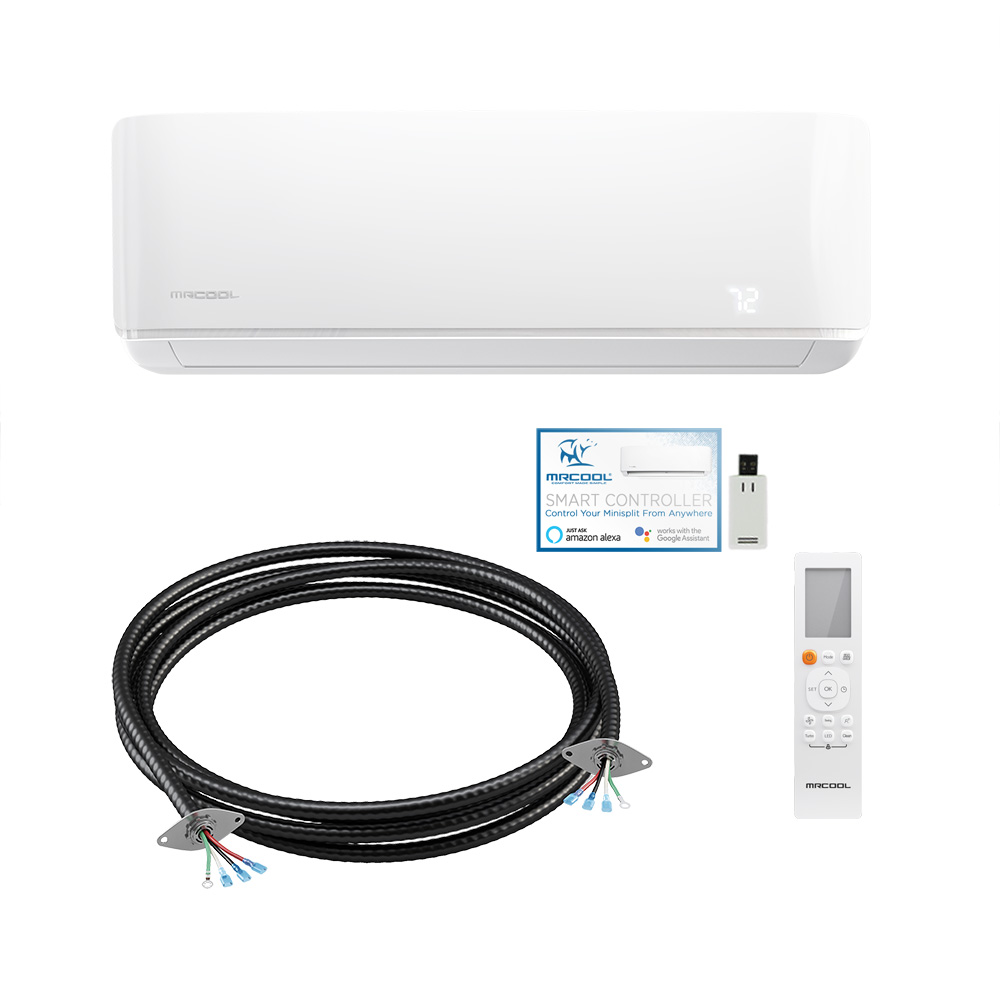

Offering personalized airflow to best suit your needs, the dry DIY E Star air handler rated for R454B refrigerant in the 24k BTU 20.5 SEER2 MrCool Ductless Heat Pump Split System - Mixed Series - R410A won’t leave you wanting. Designed for a simple setup process, the MrCool Wall Mounted Air Handler shrinks the amount of time and cost associated with installation. Whether you want to use the smartphone app to adjust settings from anywhere in the world, or the Follow Me feature that monitors the temperature where the remote is to adapt as necessary without your input, you can relax knowing the MrCool Mixed Series Split System is the perfect fit for your needs.
With total control over the temperature in your zone, plus the support of warranty coverage that encompasses 7 years on the compressor and 5 years on parts, it’s easy to see the many benefits provided by a single decision. Bring home a 24k BTU Mixed Series MrCool Ductless Heat Pump Split System making use of R410A refrigerant today and give every inch of your living space the uncompromising comfort you deserve in every season.
Customer Reviews / Q&A
Specifications
System Overview
| Model | O-ES-24-HP-C-230,DIY-24-HP-WMAH-230C25 |
|---|---|
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 20.5 |
| Heat Pump Efficiency (HSPF2) | 8 |
| Region Compatibility | Nationwide |
O-ES-24-HP-C-230 Specifications:
| Model | O-ES-24-HP-C-230 |
|---|---|
| UPC | 856965006119 |
| Product Height (in) | 32 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 17 |
| Compressor | Inverter |
| Product Width (in) | 41 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF) | 10 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 137.000000 |
| Primary Heating Capacity | 20,001 - 25,000 BTU |
| Cooling Efficiency | 19 SEER and Above |
| Series | Olympus ES |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DIY-24-HP-WMAH-230C25 Specifications:
| Model | DIY-24-HP-WMAH-230C25 |
|---|---|
| UPC | 810063868536 |
| Product Height (in) | 13.19 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 42.52 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 35.270000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
