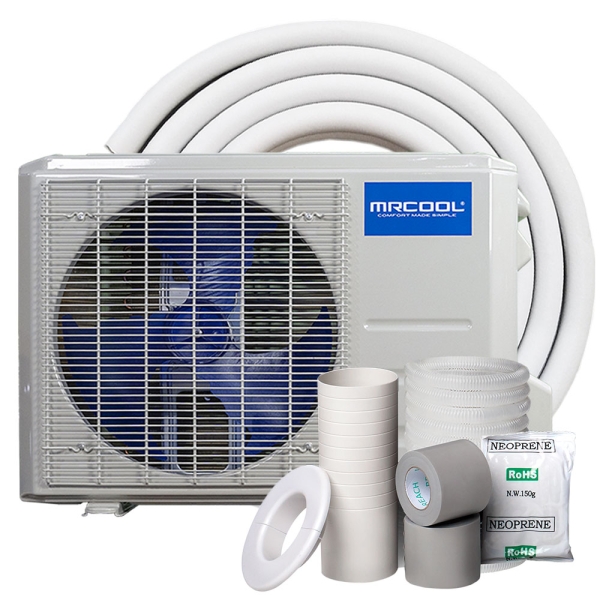

Name: 24k BTU 20 SEER MrCool DIY Ductless Heat Pump Condenser - 3rd Generation - with 25 ft Line Set
Brand: MrCool
SKU: HA20862
Price: 1422.81 USD
Availability: InStock

✓ Link Copied!

Shop All MRCOOL

Item:

HA20862

Model:

DIY-24-HP-C-230B

Condition:

New

24k-btu-20-seer-mrcool-diy-ductless-heat-pump-condenser-3rd-generation-with-25-ft-line-set-ha20862-01.3548

This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

Recommended Alternative:

Brand MrCool

24k BTU 20.5 SEER MrCool DIY Ductless Heat Pump Condenser - 4th Generation - with 25 ft Line Set

$1,678.00

Out of stock

Let me know when it’s back in stock:

Need a quick fix for a broken home heating and cooling system? Pair the 24k BTU MrCool DIY 3rd Gen Heat Pump Condenser with a DIY air handler and the included pre-charged quick connect DIY line set for a solution that you can install on your own in less than a day. You won't need any special training or complicated tools.

Accessories

Description / Documents

The key to the unit's simple installation is the pre-charged Quick Connect Line Set, a cutting-edge piece of technology from MrCool that makes it possible to install this particular HVAC equipment yourself. The line set uses R-410A refrigerant that is pre-charged at the factory. This means you don't have to vacuum the unit. Plus, the refrigerant is non-toxic for the atmosphere since it is chlorine free. Unlike previous generation refrigerants, R-410A will not damage the ozone layer.

Plus, the 24k BTU MrCool DIY 3rd Gen Heat Pump Condenser doesn't shirk on comfort. This ductless mini split heat pump has a heating and cooling capacity up to 24,000 BTU, so you can trust your home will be comfortable year-round. You can expect less noise from the 3rd Generation Heat Pump Condensers too! They run quietly and even come with sound dampening pads you can install with this outdoor unit.

When you're ready to install, remember that this outdoor condenser unit can be anchored to the ground or on a concrete pad or be attached to a wall with a bracket. The compact unit is 37.21 inches wide, 31.9 inches tall, and 16.53 inches deep; meanwhile, the mounting dimensions are 26.5 inches wide by 15.87 inches deep.

And there's no need to worry about keeping your home warm in low temperatures either. The MrCool DIY 3rd Generation Heat Pump Condenser can operate smoothly in a wide variety of exterior temperatures. It is AHRI rated down to 17 degrees.

Live on the coast and have concerns about the impact salt air may have on your unit? That's taken care of too! The 24k BTU MrCool DIY 3rd Gen Heat Pump Condenser uses Gold Fin coating on the coils that is built to resist and withstand long term exposure to salt. If corrosion does cause a leak, there is an alarm to let you know when it is leaking or operating on low refrigerant. This unit even automatically restarts after a power outage, so you can rest assured that your HVAC unit is running smoothly as soon as the lights come back on.

Finally, with MrCool you can use an Apple or Android smartphone, the included remote, Google Home, or Alexa to manage your home air comfort.

Additional Documents

From the Manufacturer

DIYB Customer Brochure

DIYB Installation Manual

DIYB Quick Start Guide

DIYB Warranty

Customer Reviews / Q&A

Specifications

System Overview

Model	DIY-24-HP-C-230B
UPC	810512033447
Product Height (in)	31.89
Avg Coverage Area	1,000 - 1,200 Sq Ft
Product Length (in)	16.14
Compressor	Inverter
Product Width (in)	37.24
Cooling Capacity	2 Ton
Electrical Phase	1-Phase
Heat Pump Efficiency (HSPF)	10
Line Set Connection Type	Quick Connect
Liquid Line Size	3/8 inch
Max Overcurrent Protection	30 amps
Weight (lbs)	159.610000
Primary Heating Capacity	20,001 - 25,000 BTU
Cooling Efficiency	19 SEER and Above
Series	DIY
System Application Type	Ductless Split Systems
Voltage	240
Warranty	5 Year Parts, 7 Year Compressor
Region Compatibility	Nationwide
