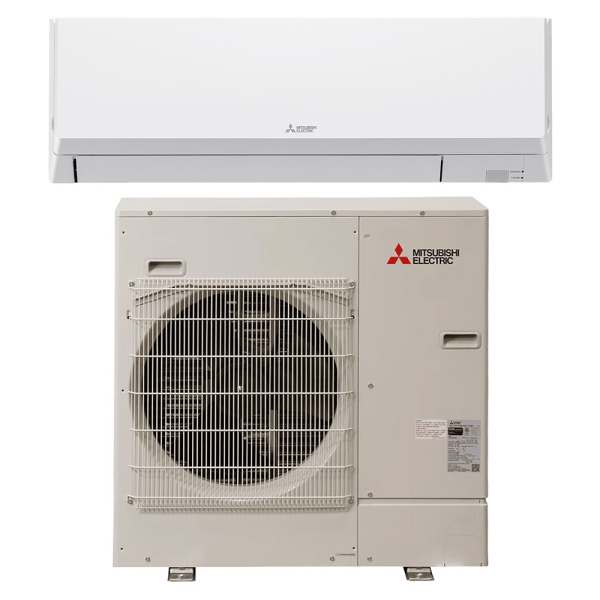

24k BTU 21.1 SEER2 Mitsubishi P-Series Ductless Heat Pump Split System - Wall Mounted - R454B
Shop All MITSUBISHI
Item:
HA28058
Model:
PUZ-AH24NL,PKA-AK24NL
Condition:
New

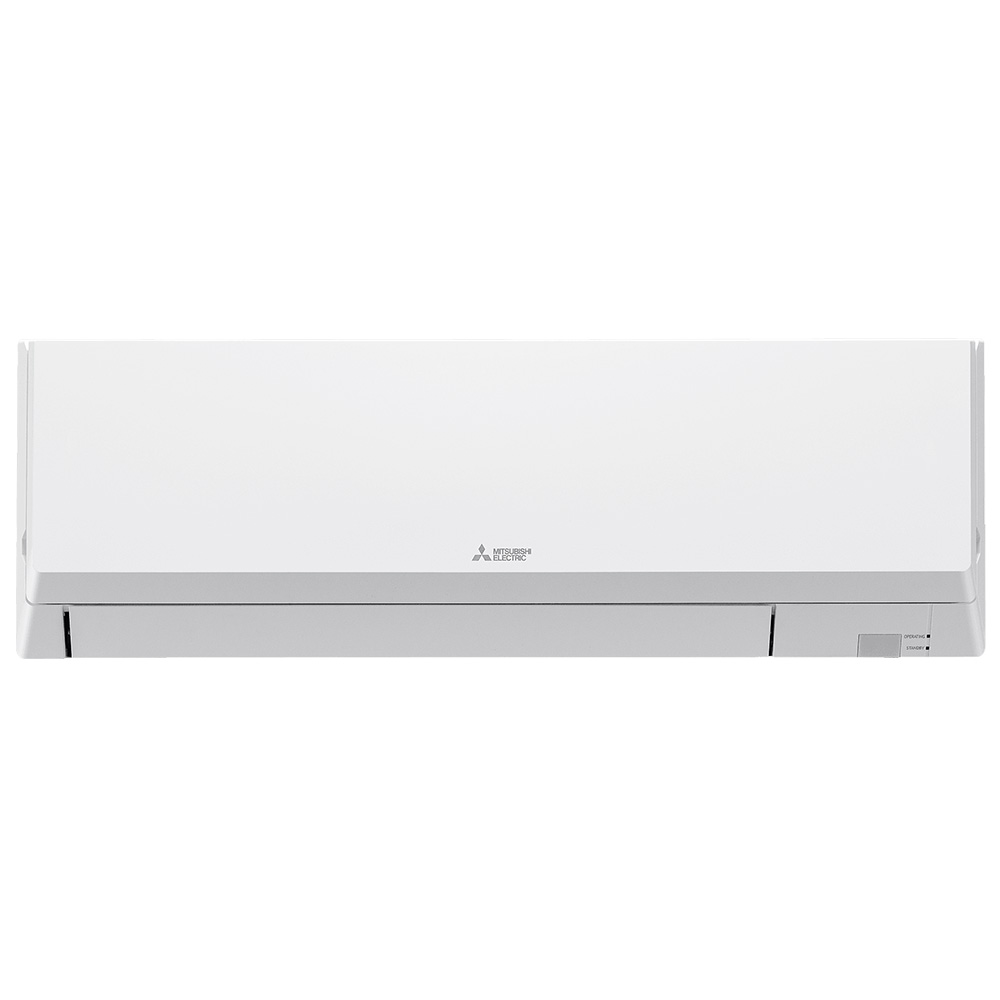

24k BTU Mitsubishi P-Series Wall Mounted Ductless Air Handler - R454B
Item: HA28037Model: PKA-AK24NL
Qty: 1
Description / Documents
Customer Reviews / Q&A
Specifications
System Overview
| Model | PUZ-AH24NL,PKA-AK24NL |
|---|---|
| AHRI Number | 215712179 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 21.1 |
| Heat Pump Efficiency (HSPF2) | 9.2 |
| Series | P-Series |
| Zones | 1 |
| Region Compatibility | Nationwide |

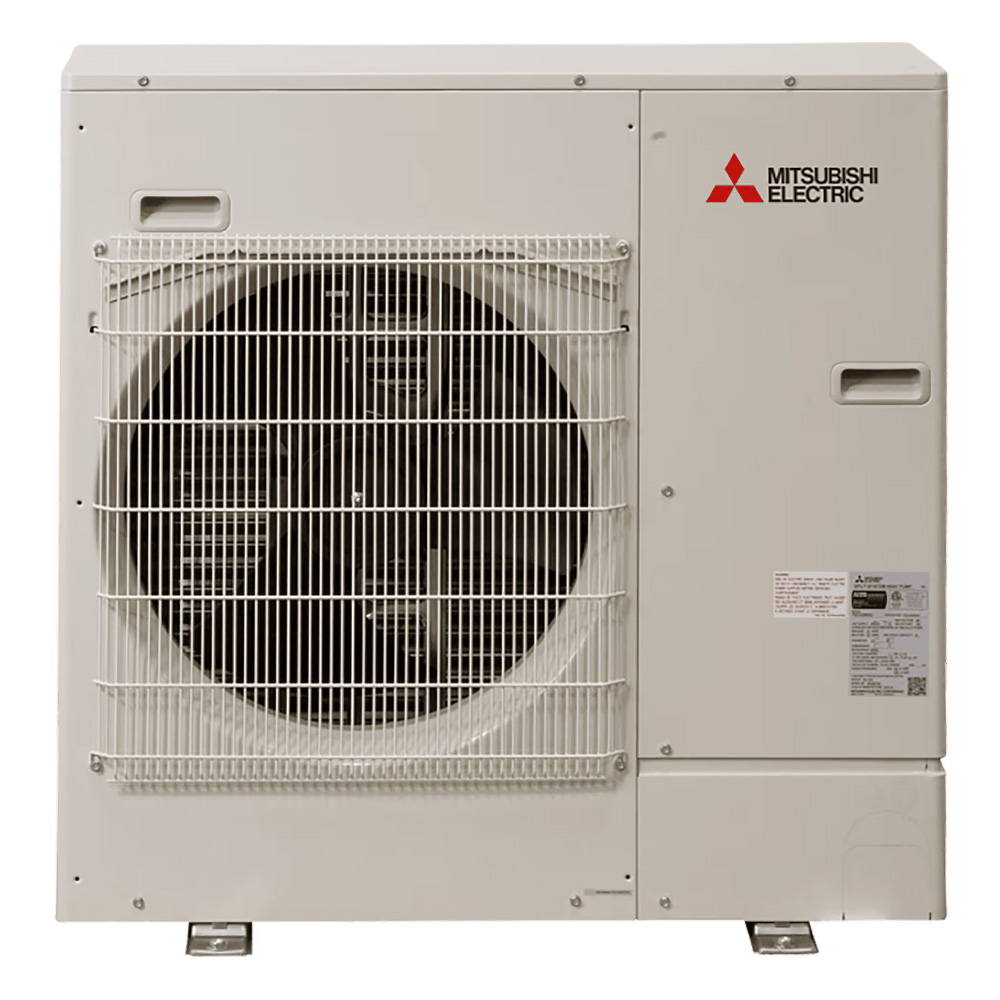

PUZ-AH24NL Specifications:
| Model | PUZ-AH24NL |
|---|---|
| UPC | 192890003466 |
| AHRI Number | 215712179 |
| Product Height (in) | 37.125 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 14 |
| Compressor | Inverter |
| Product Width (in) | 37.4063 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.8 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 155.000000 |
| Primary Heating Capacity | 30,001 - 35,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 21.1 |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
PKA-AK24NL Specifications:
| Model | PKA-AK24NL |
|---|---|
| UPC | 192890003794 |
| Product Height (in) | 14.375 |
| Configuration | Wall Mounted |
| Product Length (in) | 11.625 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 46.0625 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 46.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 5/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
