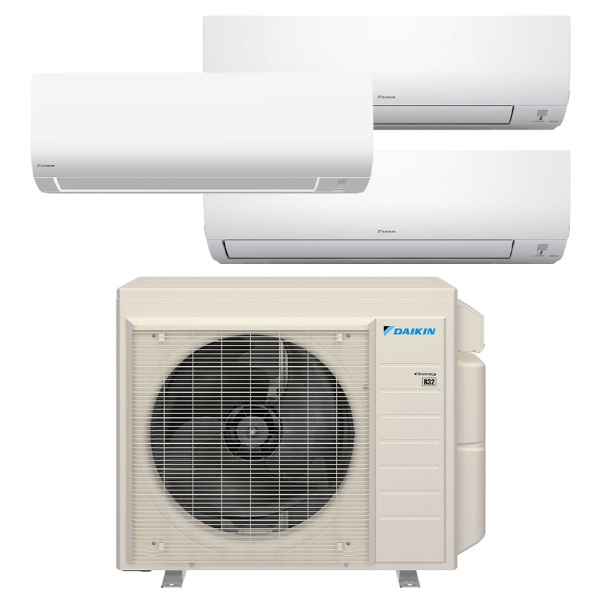

24k BTU 21 SEER2 Daikin Ductless Heat Pump Split System - 3 Zone - Wall Mounted - 9k + 7k + 7k - R32
Shop All DAIKIN

Accessories
Description / Documents
Have you been looking for a means to grant each member of your family the ability to tailor the temperatures in their unique rooms without ruining the ambiance in other areas? A 24k BTU 21 SEER2 Daikin Ductless Heat Pump Split System - 3 Zone - Wall Mounted - 9k + 7k + 7k - R32 is exactly what you need to support three unique rooms with customized climate control. Earning the support of AHRI and Energy Star cold climate certifications, you won’t have to question the efficiency of the Daikin Heat Pump System. Guarantee the exact temperatures you want in three unique zones with the integration of a 24k BTU Daikin Split System.
Built to make a lasting impact on your comfort, the condenser in the 24k BTU 21 SEER2 Daikin Ductless Heat Pump Split System - 3 Zone - Wall Mounted - 9k + 7k + 7k - R32 won’t fall shy of your expectations in any season. The use of inverter technology ensures the temperature stays closer to your set-point at all times, maximizing comfort and efficiency in a single swoop. Treated with an anti-corrosion coating to protect the heat exchanger from rust and other signs of wear, the Daikin Condenser wields a hydrophilic finish to keep the coil clean and operating at peak over the years. With low GWP R32 refrigerant circulating the system, you can breathe easy knowing the Daikin Split System is the eco-friendly solution you’ve been looking for.
Able to support a variety of situations, the air handlers in the 24k BTU 21 SEER2 Daikin Ductless Heat Pump Split System - 3 Zone - Wall Mounted - 9k + 7k + 7k - R32 provide a range of different settings to ensure a mode that matches your needs. The powerful button gives a boost to your system for a 20-minute window for quick results, amplifying the heating or cooling performance regardless of what strength the unit is running. Econo mode reduces the amount of power consumption to conserve energy during start-up, limiting the load on the circuitry at the most taxing part of the process to ensure longevity. Using a titanium apatite photocatalytic air purifying filter to remove smells and particulates from the air, the Daikin Split System goes above and beyond to guarantee the indoor ambiance you desire in three unique areas.
Giving you the performance you want, then backing the hardware with a post-registration 12-year limited parts warranty, there’s no reason to tolerate inadequate climate control another moment. Choose a 24k BTU 3 Zone Daikin Ductless Heat Pump Split System with one 9k BTU and two 7k BTU Wall Mounted Air Handlers utilizing R32 refrigerant today and guarantee the exact heating and cooling results your family deserves.
Customer Reviews / Q&A
Specifications
System Overview
| Model | 3MXM24AVJU9,FTXV09AVJU9,CTXV07AVJU9,CTXV07AVJU9 |
|---|---|
| AHRI Number | 214837758 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 21 |
| Heat Pump Efficiency (HSPF2) | 10 |
| Region Compatibility | Nationwide |

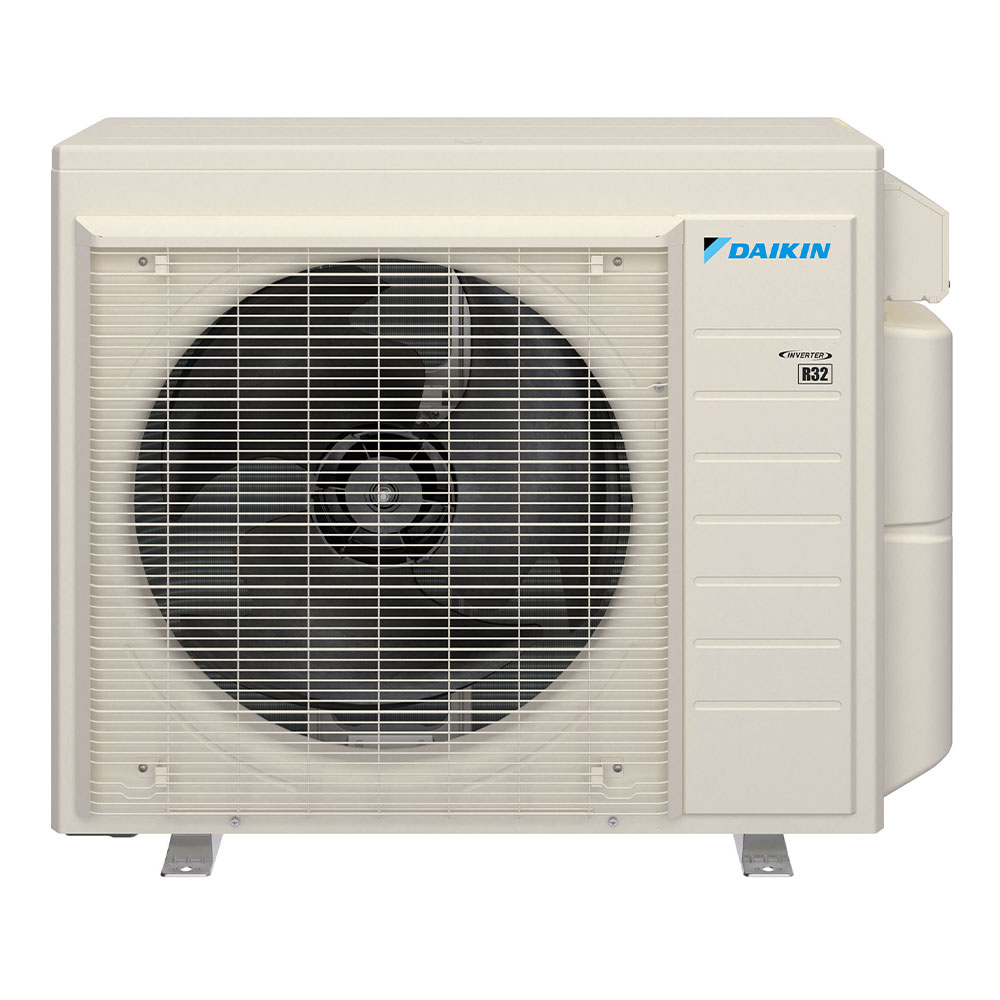

3MXM24AVJU9 Specifications:
| Model | 3MXM24AVJU9 |
|---|---|
| UPC | 647379452452 |
| AHRI Number | 214837758 |
| Product Height (in) | 29.5 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 12.6 |
| Compressor | Inverter |
| Product Width (in) | 34.3 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 140.000000 |
| Primary Heating Capacity | 20,001 - 25,000 BTU |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 21 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
| Region Compatibility | Nationwide |

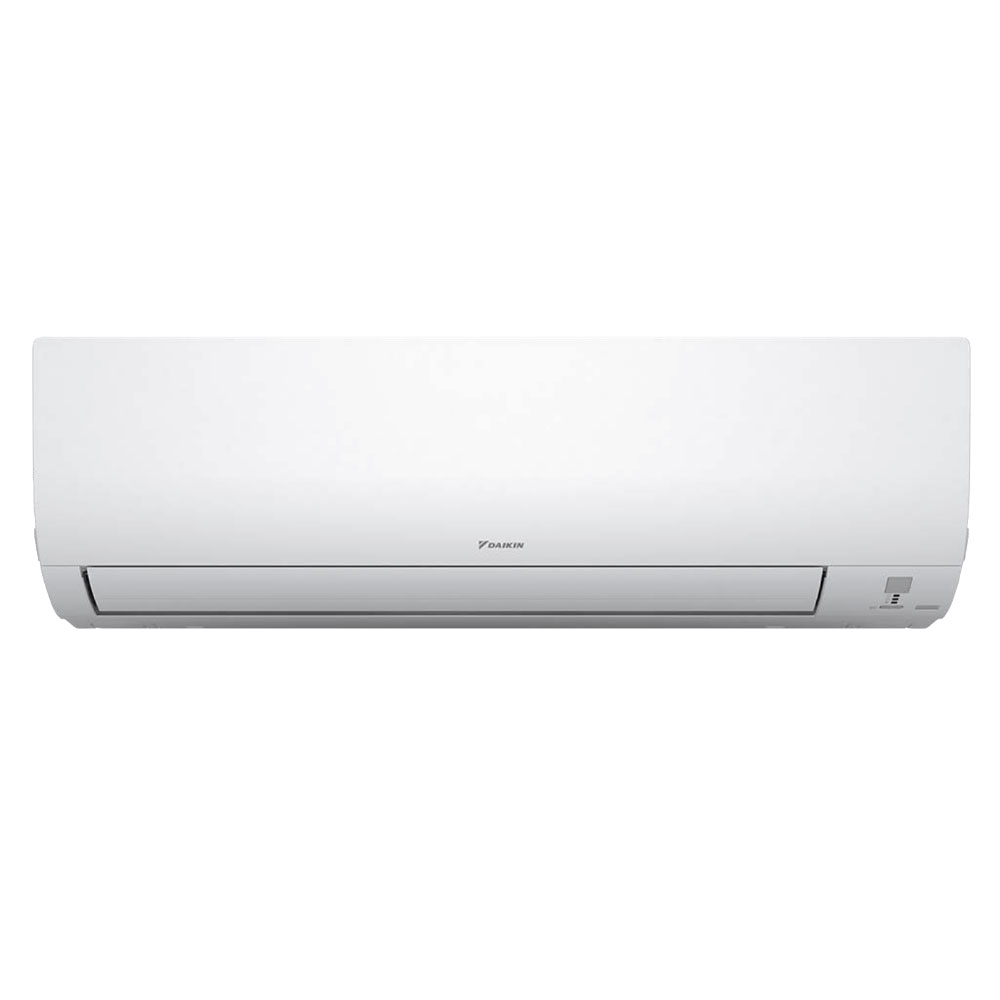

FTXV09AVJU9 Specifications:
| Model | FTXV09AVJU9 |
|---|---|
| Product Height (in) | 11.3 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.8 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 30.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 19.000000 |
| Refrigerant | R-32 |
| Series | Aurora |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
CTXV07AVJU9 Specifications:
| Model | CTXV07AVJU9 |
|---|---|
| Product Height (in) | 11.3 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.8 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 30.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 19.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
CTXV07AVJU9 Specifications:
| Model | CTXV07AVJU9 |
|---|---|
| Product Height (in) | 11.3 |
| Configuration | Wall Mounted |
| Product Length (in) | 8.8 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 30.4 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 19.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 12 Year Parts |
