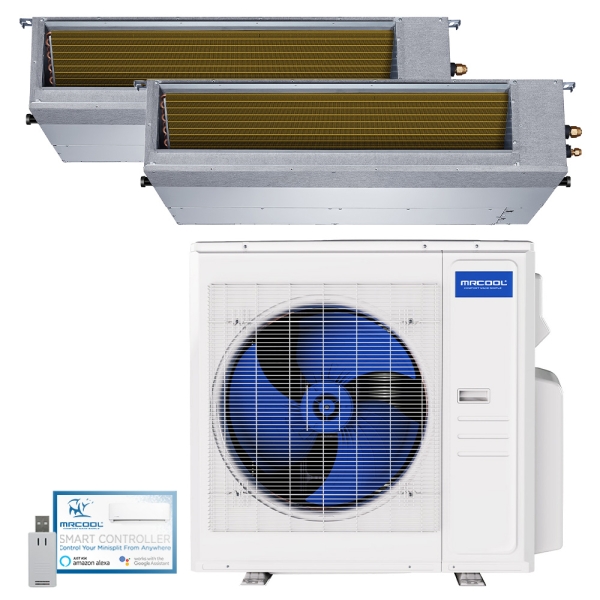

24k BTU 25 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 2 Zone - 12k + 12k - R454B
MRCOOL

Accessories
Description / Documents
Every nook and cranny of your space deserves reliable climate control, especially in regions with varied climates. Whether you’re adding customizability to a couple rooms with unique needs, or you’re supplying heating and cooling abilities to a space that’s never had it, a 24k BTU 25 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 2 Zone - 12k + 12k - R454B can make all the difference. Earning ETL listing, plus Energy Star and AHRI certifications, the MrCool Olympus Heat Pump verifies every efficiency, functional, and safety claim by passing rigorous inspections from third-party agencies. Enjoy your space to the fullest with a 24k BTU MrCool Split System.
Providing the power to support multiple indoor units, the condenser in the 24k BTU 25 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 2 Zone - 12k + 12k - R454B ensures the exact indoor ambiance you’ve been dreaming of in each zone. Integrating inverter technology allows the MrCool Condenser to maintain stable temperatures that don’t drift far from your set-point, optimizing efficiency and comfort in one fell swoop. Thanks to environmentally friendly R454B refrigerant, the MrCool Condenser sports zero ozone depletion potential and a reduced global warming potential than older HVAC hardware running on outdated refrigerants. For regions where temperatures hit triple digits in the summer or below freezing temperatures in the winter, the MrCool Olympus Split System is the perfect solution for total comfort.
Keeping you comfortable with zoned climate control, the two ceiling recessed air handlers in the 24k BTU 25 SEER2 MrCool Olympus In-Duct Heat Pump Split System - 2 Zone - 12k + 12k - R454B provide the airflow support residential and light commercial buildings need. Designed to lay flush against the ceiling, the 12k BTU MrCool Ceiling Recessed Air Handlers provide the perfect blend of aesthetic and ambiance. Allowing you to tailor your indoor temperatures from the included handheld remote control or the wall-mounted controller, the MrCool Olympus Split System makes it easy to cater unique results in two separate rooms for top-tier comfort.
You get more than just the performance you’ve been looking for with a MrCool Olympus Split System. Coming with the support of a warranty that provides 7-year coverage on the compressor, 5-year coverage on parts, and the option to enroll in the MrCool Care Program to lengthen compressor coverage to a limited lifetime, what more could you be holding out for? Decide on a 24k BTU 2 Zone MrCool Olympus In-Duct Heat Pump Split System with two 12k BTU Ceiling Recessed Air Handlers running on R454B refrigerant today and give your family the top-tier temperature regulation you and your family deserve.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | M227HP23RD03C |
|---|---|
| AHRI Number | 217291695 |
| Bundle Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Bundle Cooling Capacity | 2 Ton |
| Bundle Cooling Efficiency (SEER2) | 25 |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Series | Olympus |
| Region Compatibility | Nationwide |
MULTI4-27HP230C-O Specifications:
| Model | MULTI4-27HP230C-O |
|---|---|
| UPC | 840255587792 |
| AHRI Number | 217291696 |
| Product Height (in) | 31.9 |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Product Length (in) | 16.1 |
| Compressor | Inverter |
| Product Width (in) | 37.2 |
| Cooling Capacity | 2 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 138.900000 |
| Primary Heating Capacity | 25,001 - 30,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 21 |
| Series | Olympus ES |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
DUCT-12HP-230B-O Specifications:
| Model | DUCT-12HP-230B-O |
|---|---|
| UPC | 840255587679 |
| Product Height (in) | 7.9 |
| Configuration | Ceiling Mounted |
| Product Length (in) | 19.9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 27.6 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 39.500000 |
| Refrigerant | R-454b |
| Series | Olympus ES |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | Lifetime, 5 Year Parts |
