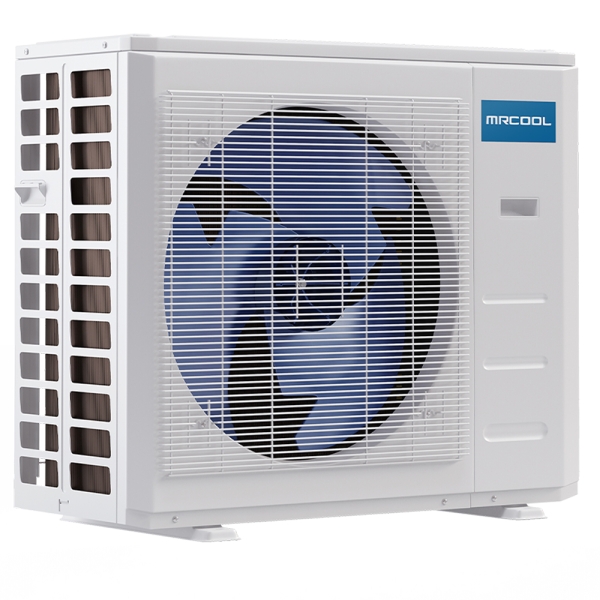

27k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3 Zone 240v

Item: HA21056
Model: DIY-MULTI3-27HP230
Condition: New

27k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3 Zone 240v Zoom

Photo Gallery

Looking for an inexpensive alternative to a traditional HVAC system that you can install all on your own? The 27k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3 Zone 240v is your answer. It can power a multi-zone system that heats or cools up to three different areas in your home or business.

Availability: In stock

$1,829.00
Ingram Financing


Ships Within 3-5 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool

What's Included

What customers are saying...



Overview

Looking for an inexpensive alternative to a traditional HVAC system that you can install all on your own? The 27k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3 Zone 240v is your answer. It can power a multi-zone system that heats or cools up to three different areas in your home or business.

This outdoor heat pump has a heating capacity of 27,000 BTU and is highly efficient with a 22 SEER rating. To heat your home in the colder months, this heat pump condenser reverses the air conditioning process and pulls heat from outside into your home.

SIMPLE DIY INSTALLATION

You get to choose how to install this compact 27k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3 Zone 240v. You can anchor the unit to the ground, install it on a concrete pad, or attach it to a wall with a bracket. This particular MrCool DIY ductless heat pump condenser is 37.24 inches wide, 31.89 inches tall, and 16.54 inches deep, while the mounting dimensions are 26.5 inches wide by 15.87 inches deep.

Easily install this condenser without expert HVAC help. The key to this truly do-it-yourself installation is the easy-to-use Quick Connect line set, which is pre-charged with an eco-friendly refrigerant that doesn’t require a certified technician to install.

For the best performance, follow the instructions found in the owner’s manual.

HANDY FEATURES

The 27k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3 Zone 240v has many features to enhance your heating and cooling experience. If a power outage occurs, the condenser will automatically switch on with the same settings once power returns. With sound dampening pads included in this kit you can trust that this heat pump condenser won’t cause too much noise, making sure you and your neighbors can be free of annoying interruptions. The Gold Fin coating ensures that your unit will operate for a long time. The coating resists corrosion, which is especially handy if you live on the coast and have high levels of salt in the air.

SIMPLE MAINTENANCE

This 27k BTU 22 SEER MrCool DIY Ductless Heat Pump Condenser - 3 Zone 240v can detect when it is low on refrigerant and alerts you with an alarm so you can proactively maintain your system and prevent damage.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DIY-MULTI3-27HP230
UPC 810035931763
Avg Coverage Area 1,000 - 1,500 Sq Ft
Compressor Inverter
Cooling Capacity 2 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 10.3
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 35 amps
Primary Heating Capacity 25,001 - 30,000 BTU
Product Height (in) 31.89
Product Length (in) 16.14
Product Width (in) 37.24
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 158.7000
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
What is the MCA and MOP of this 3 ZONE unit?
Can the condenser be mounted on an exterior wall or does it need to be put on the ground?
I am looking to buy the condenser and an 18k air handler now and add a 9k air handler in the future. Do I need to purchase the line set separately or is it included with condenser? I only see the wiring pictured with the couplers, is the wiring included with condenser or line set?
Im looking at purchasing the MrCool 3zone DIY system, 2 units will be within 25' of the condenser but one unit will require about 40 of line to reach the condenser. Do you sell connection cables/lines that will reach 40' from condenser to the wall unit?
what amp breaker is recommended for 27k btu condenser
If I purchase a Mrcool 27K Btu 3 zone compressor with 2 12k evaporators now, can I add a 9K evaporator at a later date?
What is the maximum line set length per air handler and what is the maximum height compressor can be above indoor units. Thx!
I was wondering if I could exchange two of the 25' line sets for two 16' line sets. I'm going to end up with a lot of extra coiled refrigerant line with 3 x 25's. If this is possible, how would I go about doing this?
