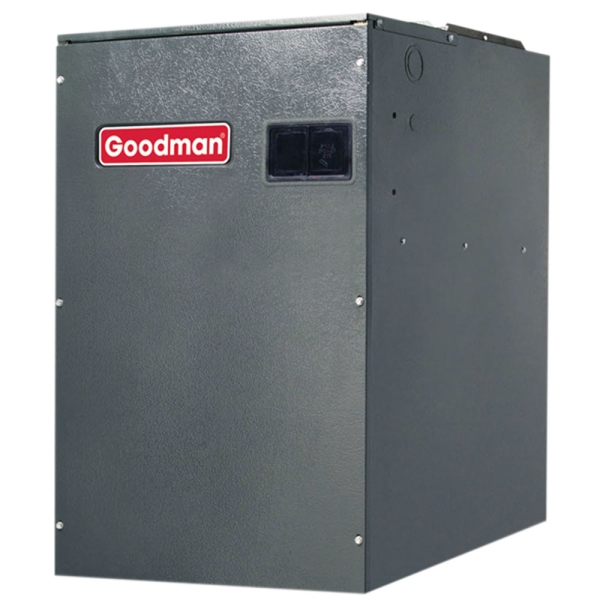

3.5 to 4 Ton Multi Speed Goodman Modular Blower - Multiposition - 21" Cabinet

Item: HA10941
Model: MBR1600AA-1
Condition: New

3.5 to 4 Ton Multi Speed Goodman Modular Blower - Multiposition - 21" Cabinet Zoom

Photo Gallery

A quality blower unit can be a great addition to the central heating and air system delivering air comfort in your home. The Goodman MBR16 Modular Blower Section is designed to do just that. It features an excellent ECM-based motor with multi-speed capability, CFM indicator, internal dehumidification feature, diagnostic indicator lights, programmable heat strip settings, and a color-coded terminal strip for non-communicating set-up. Plus, the blower works with both heat pumps and air conditioning units.

Availability: In stock

$282.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

A quality blower unit can be a great addition to the central heating and air system delivering air comfort in your home. The Goodman MBR16 Modular Blower Section is designed to do just that. It features an excellent ECM-based motor with multi-speed capability, CFM indicator, internal dehumidification feature, diagnostic indicator lights, programmable heat strip settings, and a color-coded terminal strip for non-communicating set-up. Plus, the blower works with both heat pumps and air conditioning units.
Goodman HA10941

Manufacturer Highlights

The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Variable-speed ECM blower motor
  • Direct drive, multi-speed PSC blower motor
  • ComfortNet™ Communicating System compatible
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW - 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain embossed finish
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model MBR1600AA-1
UPC 663051528048
Blower Motor Multi Speed
Condenser/Coil Compatibility 3.5 Ton, 4 Ton
Cooling Capacity 3.5 Ton, 4 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Product Height 30
Product Length 21
Product Width 21
Voltage 240
Warranty 10 Year Parts
Weight 73.0000
