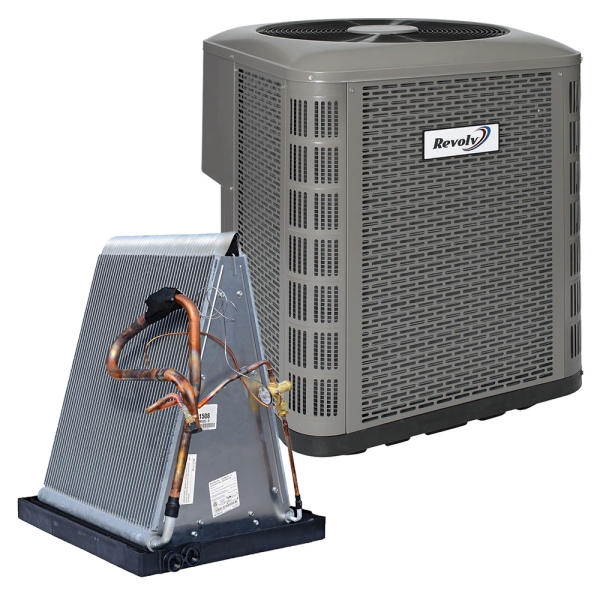

3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B
Shop All REVOLV

Accessories
Description / Documents
Giving your home the brisk airflow that can fight off the sweltering heat of summer weather is the purpose of the HVAC system in your manufactured or modular home. When you want a solution that goes the distance for your comfort, the 3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B is exactly what you need. Backed by both ETL listing and AHRI certification, the Revolv AC & Coil System passes intensive independent inspections to highlight the accuracy of every safety and performance claim. For your 1750 to 2100 square foot home, enjoy the exact temperatures you want with an upgrade to the 3.5 Ton Revolv System.

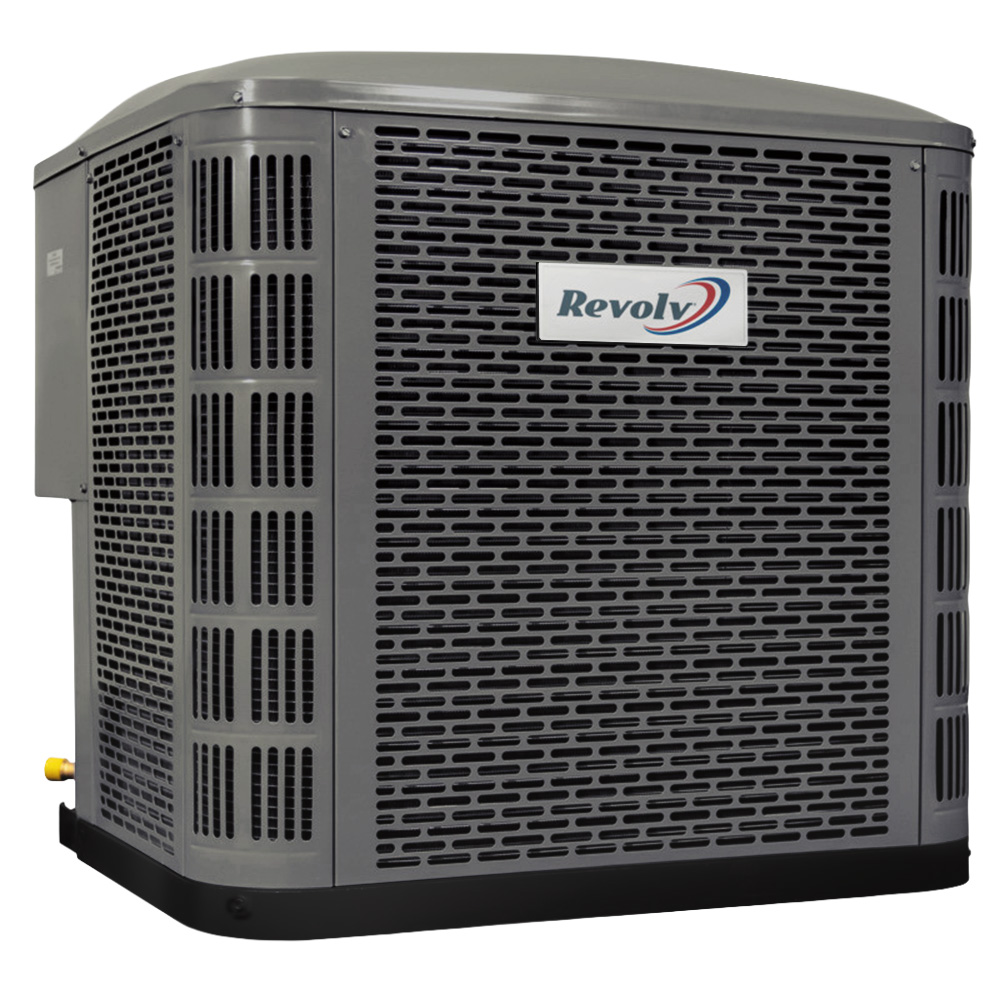

Producing the game changing chill you’ve been dreaming of, the condenser in the 3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B locks the summer sun outside your home where it belongs. Crafted of galvanized steel and treated with a powder-paint finish, the cabinet of the Revolv AC earns 950-hour salt-spray approval that softens any sharp corners while protecting the casing from fading, chipping, scratching, and corrosion. Between the base pan, high-quality scroll compressor, and permanently lubricated PSC motor, vibrations are reduced during normal use to guarantee quiet performance. Thanks to the removable top grille assembly and easily accessible compressor and controls that don’t require the removal of the grille, the Revolv AC System has a smart construction of powerful features that combine to give you lasting climate control for years to come.

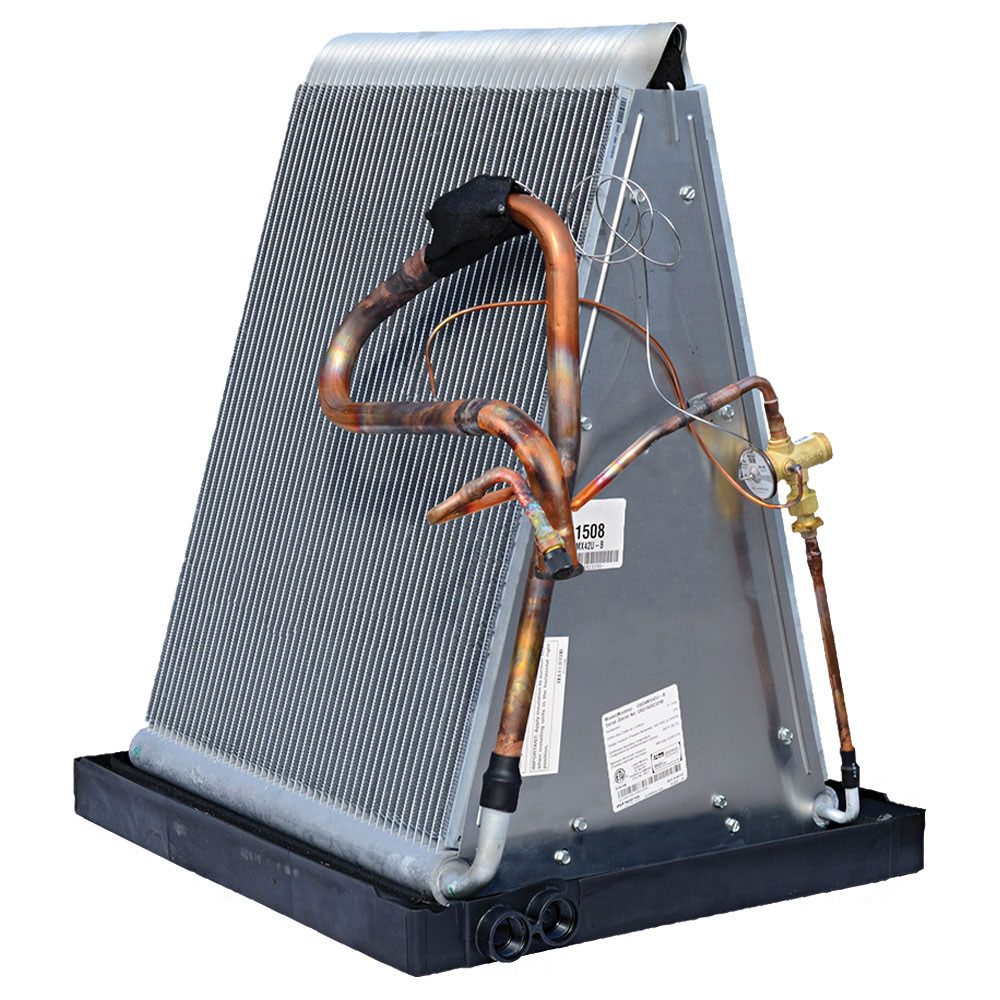

Effectively siphoning unwanted heat out of your home, the evaporator coil in the 3.5 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B provides the refreshing cool you need to combat summer temperatures. Using R454B refrigerant allows the Revolv Coil to take advantage of zero ozone depletion potential and a lowered GWP (global warming potential), ensuring sustainable performance over time. A TXV metering device helps keep the refrigerant at the proper state of superheat, sustaining safe and dependable results over the years. Equipped with leak-free down turn braze connections, the Revolv AC & Coil System goes above and beyond to give your home the comforting cool break you need from the summer sun.
Staying cool in the middle of a heat wave shouldn’t be a struggle, so why settle for a system that can’t keep up? Acquire the 3.5 Ton Revolv Mobile Home Air Conditioner & Coil System running on R454B refrigerant today and give your loved ones the reliable performance needed to create your ideal indoor ambiance and maintain it all summer long.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | HSA4MD5M1SN42K,C85DAMX42U-B |
|---|---|
| AHRI Number | 216044455 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 13.4 |
| Region Compatibility | North |
HSA4MD5M1SN42K Specifications:
| Model | HSA4MD5M1SN42K |
|---|---|
| UPC | 663132533442 |
| Product Height (in) | 33 |
| Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Product Length (in) | 31.75 |
| Compressor | Single Stage |
| Product Width (in) | 31.75 |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 35 amps |
| Weight (lbs) | 165.000000 |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 13.4 |
| Suction Line Size | 7/8 inch |
| System Application Type | Mobile Home Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 10 Year Compressor |
| Region Compatibility | North |
C85DAMX42U-B Specifications:
| Model | C85DAMX42U-B |
|---|---|
| UPC | 663132533701 |
| Product Height (in) | 18 |
| Air Flow Direction | Vertical |
| Product Length (in) | 19.5 |
| Cooling Capacity | 3.5 Ton |
| Product Width (in) | 18.125 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 40.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| Warranty | 5 Year |
