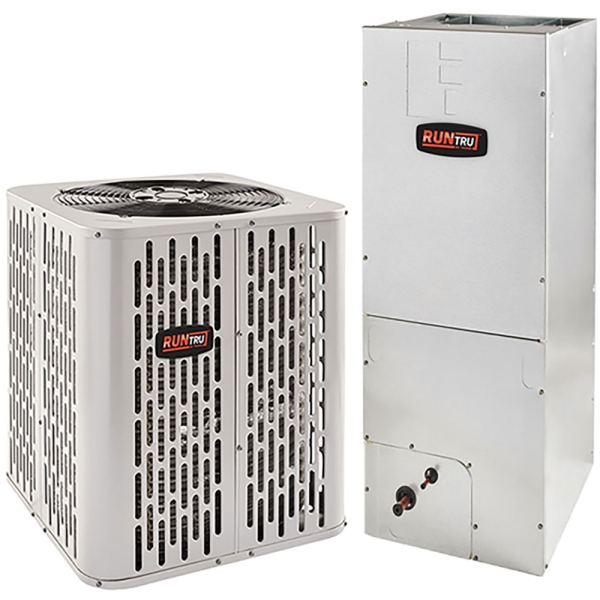

3.5 Ton 14.3 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System - Multiposition

Item
HA22409
Condition
New

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

Affordable HVAC Installation


What's included

Cast aside the frustration of unstable airflow and feel the comfort of consistency with the 3.5 Ton 14.3 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System. Both components of this Trane Split System have been chosen to produce reliable results. The Air Conditioner complies with the specifications outlined in UL 1995 while also achieving AHRI certification. Hopping on the excellence train, the Air Handler also works hard to maintain cabinet air leak below 2%. Empowered to cover spaces ranging from 1750 to 2100 square feet and meriting a SEER2 rating of 14.3, this 3.5 Ton Trane system imparts the cool, luxurious climate you've been yearning for throughout your entire home.

The AC module within the 3.5 Ton 14.3 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System takes performance to new heights, even in hotter areas. Constructed from robust, galvanized steel and coated with a weather-resistant powder finish, the enclosure of this Trane Air Conditioner is designed to withstand a variety of inclement conditions. Going the extra mile, all four panels pass an exhaustive 1000-hour salt-spray test. The outdoor coil of this Trane AC is protected on all sides by louvered panels, resulting in reduced resistance to airflow and increased heat transfer efficiency. Tailored to accommodate diverse home layouts, this 3.5 Ton Trane system has a standard cooling capacity capable of lowering your home's temperature to 55 degrees Fahrenheit. For those seeking even more robust cooling, an optional low ambient kit is available to provide you with the means to achieve temperatures as low as 20 degrees Fahrenheit. With the strength to weather outdoor temperatures of up to 115 degrees Fahrenheit, you can breathe a sigh of relief that your household will be filled with consistent climate control for many years.

The air handler integrated into the 3.5 Ton 14.3 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System follows suit, upholding a similarly exceptional level of performance. Enclosed within a galvanized metal cabinet with captured foil-face insulation, this Trane Air Handler remains sheltered from external influences while also minimizing internal moisture. Offering versatile installation options like upflow, downflow, and horizontal configurations, the mechanical connections on both the left and right sides combine to make sure this system is equipped with the flexibility needed to effectively meet your home's specific layout requirements.

With a plethora of advantages at your disposal, why delay the decision any further? Upgrade the level of comfort in your home with this Trane Split System and delight in the resilience you've been searching for.

More Information
Model A4HP4042D1000,A4AH4E42B1C30A
UPC 647535528588
AHRI Number 209472707
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency (SEER2) 14.3
EER2 11.7
Heat Pump Efficiency (HSPF2) 7.5
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

A4AH4E42B1C30A Specifications:

More Information
Model A4AH4E42B1C30A
UPC 647535674445
Product Height (in) 51.4
Configuration Floor Mounted
Product Length (in) 21.13
Air Flow Direction Downflow, Horizontal, Upflow
Product Width (in) 23.5
Blower Motor High Efficiency
Cooling Capacity 3.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 20 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 155.000000
Refrigerant R-410a
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts, 10 Year Evaporator Coil
