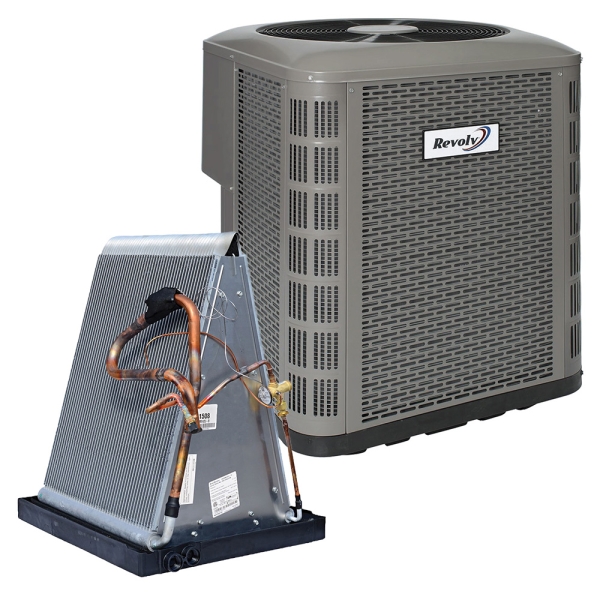

3.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B
Shop All REVOLV

Accessories
Description / Documents
Having a mobile home shouldn’t leave you feeling limited on the strength and support of your climate control system. With the 3.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B, you can enjoy top-tier heating and cooling results throughout the year. Earning both AHRI certification and ETL listing, the Revolv Heat Pump has undergone exhaustive third-party evaluations to prove the integrity of every safety and functional claim. Make the most of your 1750 to 2100 square foot modular or manufactured home with a 3.5 Ton Revolv System.

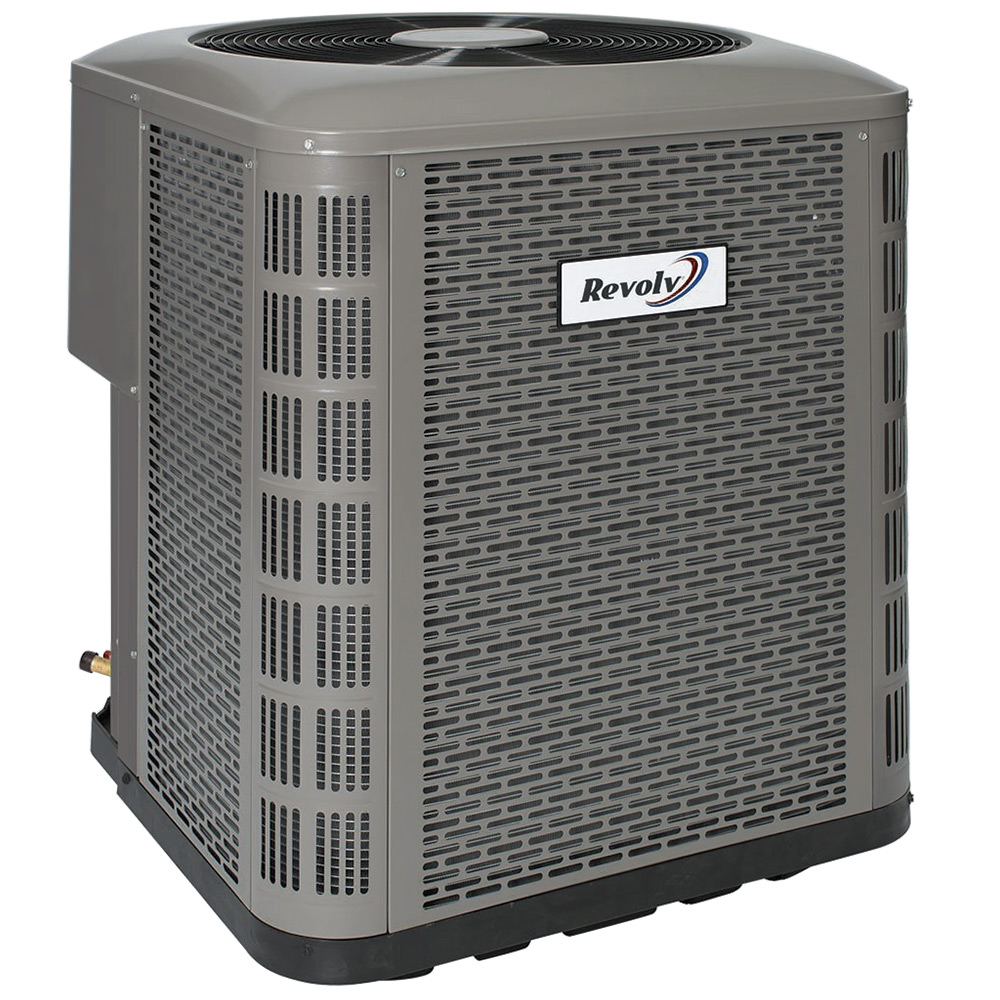

Dedicated to giving your home reliable results, the condenser in the 3.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B has the power and design necessary to meet your needs exactly where they are. A cabinet crafted from galvanized steel and treated with a powder-paint coating lets the Revolv Heat Pump pass a 950-hour salt-spray test, proving its resilience over time. The patented hot gas bypass defrost system safely eliminates any ice buildup from the coil in winter, shielding the system from harm by delaying the heating cycle until the hazard is removed. The composite construction of the base pan is lighter and more robust than steel, working with the corrosion-resistant, all-aluminum condenser coil to ensure longevity. With a hot gas muffler that minimizes compressor vibrations, functional sound is kept at a minimum. Equipped with a crankcase heater, suction accumulator, and enough refrigerant to support 20 feet of line set, the Revolv Mobile Home System won’t fall short of giving you the temperature regulation results you need in every season.

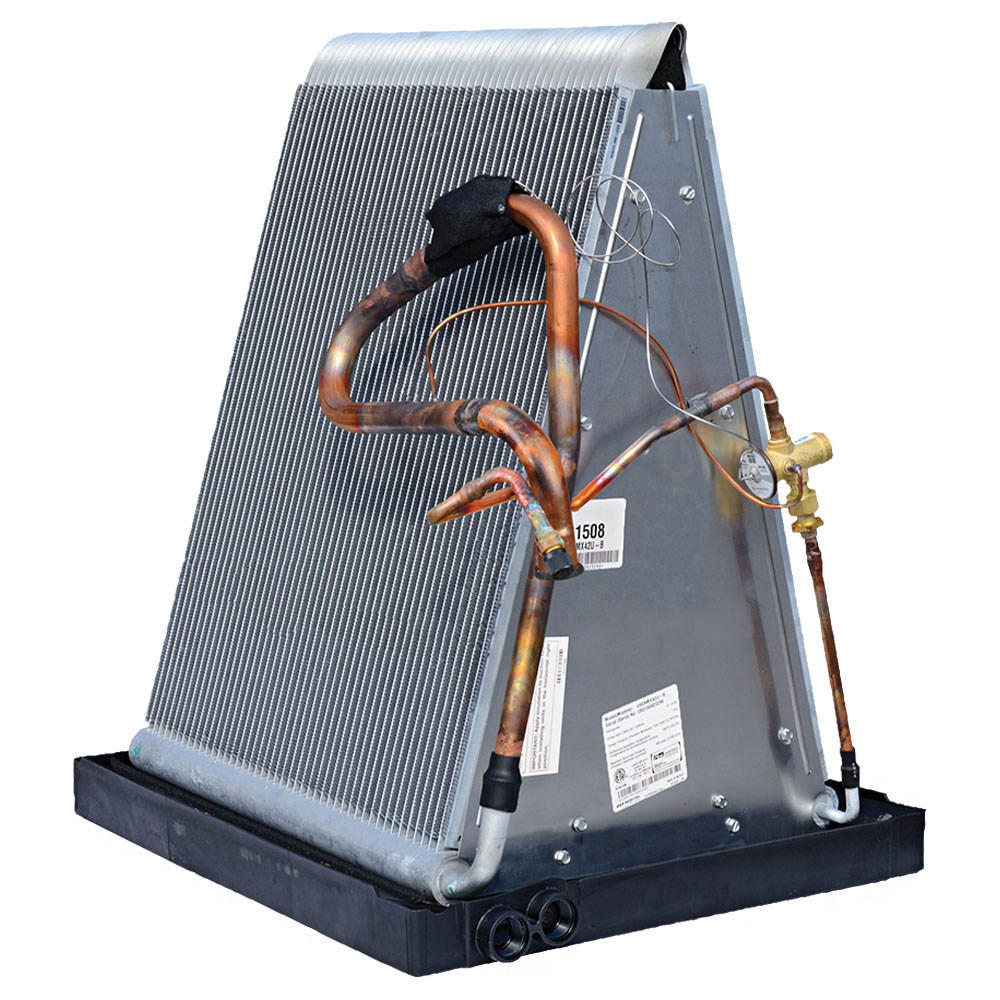

Streamlining tasks like setup and servicing to save technicians time, the evaporator coil in the 3.5 Ton 14.3 SEER2 Revolv Mobile Home Heat Pump & Coil System - R454B drops the cost associated with these jobs in tandem to provide affordable, sustainable performance. The use of R454B refrigerant gives the Revolv Coil benefits like zero ozone depletion potential and a lower GWP (global warming potential) than older refrigerants. By including a TXV metering device to maintain superheat, adapting the refrigerant as necessary to ensure optimal performance over time. Thanks to the leak-free down turn braze connections, the Revolv Heat Pump & Coil System has everything you need and more to craft your ideal indoor ambiance all year long.
Keeping your manufactured or modular housing comfortable throughout the year shouldn’t be a struggle, so why tolerate anything less than total control? Bring home the 3.5 Ton Revolv Mobile Home Heat Pump & Coil System making use of R454B refrigerant today to guarantee the year-round temperature regulation results you’ve been looking for.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | HSH4ME5M1SP42K,C85DAMX43U-B |
|---|---|
| AHRI Number | 216046540 |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 14.3 |
| EER2 | 11 |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Region Compatibility | Nationwide |
HSH4ME5M1SP42K Specifications:
| Model | HSH4ME5M1SP42K |
|---|---|
| UPC | 663132533664 |
| Product Height (in) | 45 |
| Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Product Length (in) | 31.75 |
| Compressor | Single Stage |
| Product Width (in) | 31.75 |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 7.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 40 amps |
| Weight (lbs) | 207.000000 |
| Primary Heating Capacity | 35,001 - 40,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 14.3 |
| Suction Line Size | 7/8 inch |
| System Application Type | Mobile Home Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts, 10 Year Compressor |
| Region Compatibility | Nationwide |
C85DAMX43U-B Specifications:
| Model | C85DAMX43U-B |
|---|---|
| UPC | 663132533718 |
| Product Height (in) | 25 |
| Air Flow Direction | Vertical |
| Product Length (in) | 19.5 |
| Cooling Capacity | 3.5 Ton |
| Product Width (in) | 18.125 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 50.000000 |
| Refrigerant | R-454b |
| Suction Line Size | 7/8 inch |
| Warranty | 5 Year |
