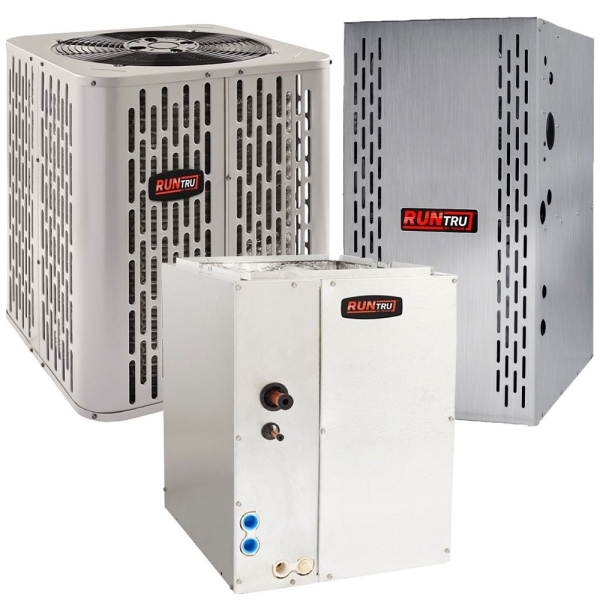

3.5 Ton 14.5 SEER 100K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Multiposition

With this 3.5 Ton 14.5 SEER 100K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System you get an affordable and efficient heating and cooling system that won't break the bank. This split system includes a central heat pump, a cased evaporator coil, and a multi speed gas furnace. This set of appliances works together to make sure your family is comfortable no matter the season.

The Trane RunTru Central Heat Pump Condenser in this 3.5 Ton 14.5 SEER 100K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System has a 3.5 ton cooling capacity and 14 SEER rating. The dimensions of the heat pump condenser in this split system are 28.6 high by 34.3 wide by 34.3 deep. It can cool when temperatures are as high as 115°F outside or as low as 55°F as manufactured. Accessories can increase low ambient capability.

The refrigerant in this system is factory-charged R410-A, an eco-friendly refrigerant that does not damage the ozone layer like traditional refrigerants. A condenser fan, compressor contactor, low and high pressure switches, and a thermostatic expansion valve (TXV) control the R-410A refrigerant in this appliance. Louvered panels protect the coil from damage on all four sides.

The Trane RunTru Central Heat Pump Condenser' scroll compressor has both overcurrent and over temperature protection to ensure the unit runs safely. It has an all-aluminum condenser coil that efficiently transfers heat and provides low airflow resistance. Also, it produces a low vibration, causing little noise and delivering quiet operation that won't be an interruption. The unit hums along in the background of your daily life to keep your home at your comfort level.

The heat pump condenser's cabinet is made with heavy gauge, galvanized steel and covered with a weather-resistant powder paint finish. Each cabinet panel is put to the test with a 1,000 hour salt spray to prove it can withstand the test of time outdoors, even in coastal areas with high air salinity.

The Trane RunTru Cased Evaporator Coil in this 3.5 Ton 14.5 SEER 100K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System is efficient, durable, and affordable. This appliance has a 3.5 to 5 ton capacity, and uses R-410A refrigerant, the same environmentally-friendly refrigerant used in this split system's heat pump condenser. The measurements of this particular cased evaporator coil are 30.7 high by 21 wide by 21.5 deep.

The Trane RunTru Cased Evaporator Coil is housed in a cabinet made of durable galvanized steel that is fully insulated for improved efficiency and waste reduction. The evaporator coil cabinet has a drain pan that protects your floors from moisture created during the air conditioning process. This drain pan is double-sloped and can withstand high temperatures.

The Trane RunTru Multi Speed Gas Furnace in this 3.5 Ton 14.5 SEER 100K BTU 80% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System distributes warmed air throughout your home and is efficient, well built, and dependable. This particular model has a 100,000 BTU capacity, 4-5 ton nominal air flow, and a 95% annual fuel utilization efficiency (AFUE). With these capabilities, this gas furnace is able to provide affordable, reliable heating service whenever you need it.

The default fuel source for this gas furnace is natural gas, but you can easily convert the unit for liquefied petroleum (LP) gas with a separately purchased conversion kit. Install this Trane RunTru Multi Speed Gas Furnace in one of three configurations: upflow, horizontal left, or horizontal right. This gas furnace can fit into tight spaces like basements or closets and measures 34 high by 21 wide by 28.75 deep.

This single-stage, non-condensing Trane RunTru Multi Speed Gas Furnace is designed to safely and efficiently meet your heating needs. This gas furnace runs with an efficient constant torque blower motor (ECM) that has nine speeds. The multiport, inshot burners operate quietly and reliably to reduce unnecessary background noise.

Both of the gas furnace's heat exchangers are made with cycle tested, heavy gauge tubular stainless steel, which quickly transfers heat. The Vortica II Blower is designed exclusively for Trane RunTru gas furnaces. This blower improves airflow efficiency and ensures gas fumes are safely discharged outdoors.

The silicon nitride hot surface ignition system in a Trane RunTru Multi Speed Gas Furnace does not have to run continuously like a traditional pilot light. With this modern ignition system you won't need to check and relight the pilot.

The Trane RunTru Multi Speed Gas Furnace features an integrated system control that allows you to easily manage your system. This control unit is a solid state device that continuously monitors for the presence of flame, so you can trust your family is safe. The unit also features a digital display for diagnostics that make the gas furnace easier to service.

A heavy gauge steel wrap-around cabinet with a durable, baked-on enamel finish houses and protects the Trane RunTru Multi Speed Gas Furnace. Every installation configuration of this appliance has two venting options without cabinet knockouts.

All three appliances in this system are designed, tested, and assembled in the USA.
