3.5 Ton 14.5 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal

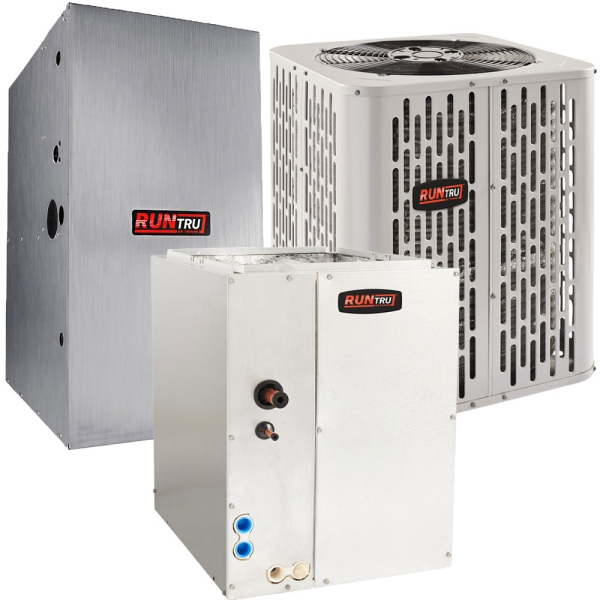

Choose this 3.5 Ton 14.5 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System and receive an affordable and efficient heating and cooling system. This split system includes a central heat pump, a cased evaporator coil, and a multi speed gas furnace. This set of appliances work together to keep your home comfortable in every season.

The Trane RunTru Central Heat Pump Condenser in this 3.5 Ton 14.5 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System has a 3.5 ton cooling capacity and 14 SEER rating to ensure your home is always comfortable. This condenser can be easily installed outside the home. It measures 28.6 high by 34.3 wide by 34.3 deep.

The Trane RunTru Central Heat Pump Condenser produces a low vibration, causing little noise and delivering quiet operation that won't be an interruption. The unit hums along in the background of your daily life to keep your home at your comfort level, even in scorching summer heat.

The refrigerant in this system is factory-charged R410-A, an environmentally friendly choice that does not damage the ozone layer like more traditional refrigerants. A condenser fan, compressor contactor, low and high pressure switches, and a thermostatic expansion valve, or TXV, control the R-410A refrigerant.

The scroll compressor in this Trane RunTru Central Heat Pump Condenser has both overcurrent and over temperature protection to ensure the unit runs safely. This heat pump condenser features an all-aluminum condenser coil that efficiently transfers heat and provides low airflow resistance. To protect the coil from damage, all four sides are covered with louvered panels. The direct drived outdoor propeller fan in the Trane RunTru Central Heat Pump Condenser is dynamically and statically balanced.

The heat pump condenser's cabinet is made with heavy gauge, galvanized steel and covered with a weather-resistant powder paint finish. Each cabinet panel is put to the test with a 1,000 hour salt spray to prove it can stand the test of time outdoors, even in coastal areas with high air salinity.

The Trane RunTru Cased Evaporator Coil in this 3.5 Ton 14.5 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System is efficient, durable, and affordable. It has a 3.5 to 5 ton capacity, and uses R-410A refrigerant, the same eco-friendly refrigerant used in the condenser. The coil is 30.7 high by 21 wide by 21.5 deep. It is housed in a cabinet made of durable galvanized steel, fully insulated for improved efficiency and reduced waste. The evaporator coil cabinet features a drain pan with a double-sloped design.

The Trane RunTru Multi Speed Gas Furnace in this 3.5 Ton 14.5 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System has a 100,000 BTU capacity, 4-5 ton nominal air flow, and a 95% annual fuel utilization efficiency (AFUE). With these capabilities, this gas furnace provides affordable, reliable heating service whenever you need it. The multiport, inshot burners operate quietly and reliably to reduce background noise. The furnace is built for use with natural gas, but you can easily convert the unit for liquefied petroleum (LP) gas with a separately purchased conversion kit.

You can install this Trane RunTru Multi Speed Gas Furnace in one of three configurations: upflow, horizontal left, or horizontal right. This gas furnace can fit into tight spaces like basements or closets and measures 34 high by 21 wide by 28.75 deep. Plus, this single-stage, non-condensing Trane RunTru Multi Speed Gas Furnace is designed to safely and efficiently meet your home's heating needs. This appliance runs with an efficient constant torque blower motor (ECM) that has nine speeds.

The silicon nitride hot surface ignition system in a Trane RunTru Multi Speed Gas Furnace heats the main burners on demand only when you need them, unlike a traditional pilot light that runs continuously. With this safe and modern ignition system you won't need to check and relight the pilot.

Both of the gas furnace's heat exchangers are made with cycle tested, heavy gauge tubular stainless steel that quickly transfers heat. The Vortica II Blower is designed exclusively for Trane RunTru gas furnaces to improve airflow efficiency and ensure gas fumes are safely discharged outdoors.

The Trane RunTru Multi Speed Gas Furnace features an integrated system control that allows you to easily maintain your system. This control unit is a solid state device that continuously monitors for the presence of flame, so you can trust your family is safe. The unit also features a digital display for diagnostics that make the gas furnace easier to service.

A heavy gauge steel wrap-around cabinet with a durable and easy-to-clean baked-on enamel finish houses and protects the Trane RunTru Multi Speed Gas Furnace. Every installation configuration of this appliance has two venting options and the cabinet does not have knockouts.

All three appliances in this 3.5 Ton 14.5 SEER 100K BTU 95% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System are designed, tested, and assembled in the USA.
