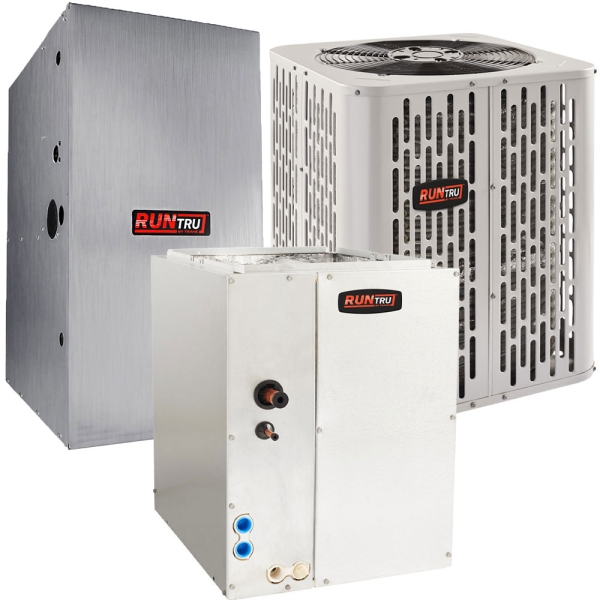

3.5 Ton 14.5 SEER 80K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal

You can expect reliably efficient performance from this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System. This system works together to keep your family comfortable no matter the time of year. This set of appliances includes a heat pump, evaporator coil, and gas furnace to meet your home's heating and cooling needs.

This Trane RunTru Heat Pump Condenser in this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System has a 3.5 ton cooling capacity and 14 SEER rating to ensure your home is comfortable. To ensure quiet operation that won't interrupt your daily activities, this heat pump condenser produces a low vibration. The unit runs quietly, smoothly working in the background of your daily life to keep your space at your desired comfort level.

The refrigerant in this system is factory-charged R410-A, an eco-friendly refrigerant that does not damage the ozone layer. A condenser fan, compressor contactor, low and high pressure switches, and a TXV that maintains a constant heat for optimal performance manage this system's refrigerant. The scroll compressor in this Trane RunTru Heat Pump Condenser features overcurrent and over temperature protection to ensure the unit runs safely. Other features of the scroll compressor include a low operating vibration and a centrifugal oil pump.

This heat pump features an all-aluminum condenser coil that efficiently transfers heat and provides low airflow resistance. For protection from damage, the coil is covered on all four sides with louvered panels. The direct drived outdoor propeller fan in the Trane RunTru Heat Pump Condenser is dynamically and statically balanced. This particular heat pump condenser unit measures 28.6 high by 34.3 wide by 34.3 deep.

The cabinet for this appliance is made with heavy gauge, galvanized steel that features a weather-resistant powder paint finish. Each cabinet panel is put to a 1,000 hour salt spray test to prove it can stand the test of time outdoors, even in coastal areas.

The Trane RunTru Multiposition Cased Evaporator Coil in this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System provides affordable and long lasting service. This particular evaporator coil has a 3 to 3.5 ton capacity and is made entirely of aluminum. This coil uses R-410A refrigerant, the same eco-friendly refrigerant used in this split system's heat pump condenser. The coil's refrigeration is orifice controlled with a factory installed piston, and the refrigerant connections are brazed fittings.

The dimensions of this specific Trane RunTru Multiposition Cased Evaporator Coil are 22.5 high by 21 wide by 21.5 deep. The cabinet that houses the evaporator coil is made of durable galvanized steel, and the casing is fully insulated to enhance efficiency. The cabinet's double-sloped drain pan can withstand high temperatures, and it protects your floor from moisture created during the air conditioning process.

The Trane RunTru 2 Stage Gas Furnace in this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System heats your home with its 80,000 BTU capacity, 5 ton nominal air flow, and 96% annual fuel utilization efficiency (AFUE). Multiport inshot burners operate efficiently and quietly, humming in the background of your day-to-day life keeping your family comfortable.

The American Gas Association has certified this Trane RunTru 2 Stage Gas Furnace for use with natural or liquefied petroleum (LP) gas. This unit's standard setup is for use with natural gas, but you can easily convert the furnace to operate with LP gas with a conversion kit. The heat exchangers are heavy gauge tubular stainless steel that is cycle-tested and corrosion resistant, and the secondary heat exchanger is made of specialty 29-4C™stainless steel that reclaims heat from flue gases to improve efficiency.

The blower motor in a Trane RunTru 2 Stage Gas Furnace will keep you warm when temperatures begin to drop while improving energy usage. With its variable speeds, the blower motor can create enough airflow for most heating and cooling requirements. It features an integrated system control that continuously monitors for the presence of flame. This solid state device operates with an exclusively designed operational program so you can manage your system. The integrated control system display shows self diagnostic information to help troubleshoot if needed.

Rather than a continuously burning pilot light found in older furnaces, the Trane RunTru 2 Stage Gas Furnace starts on demand with a silicon nitride hot surface ignition system. This modern ignition system lights the main burners only when needed and eliminates waste. Not only is this ignition system safer than a pilot light, it also eliminates the chore of checking and relighting the pilot.

A heavy gauge steel cabinet surrounds the Trane RunTru 2 Stage Gas Furnace to strengthen and protect it. The dimensions of this particular gas furnace including its casing are 34 high by 21 wide by 28.75 deep.

The manufacturer certifies that this furnace leaks 1.4% or less of nominal air conditioning, in compliance with ASHRAE standards. The Trane RunTru 2 Stage Gas Furnace is also Fan Energy Rating (FER) compliant, and its limit setting and rating data were established and approved under American National Standards Institute (ANSI) conditions.

All three appliances in this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System are designed, tested, and assembled in the USA.
