3.5 Ton 14.5 SEER 80K BTU 96% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal

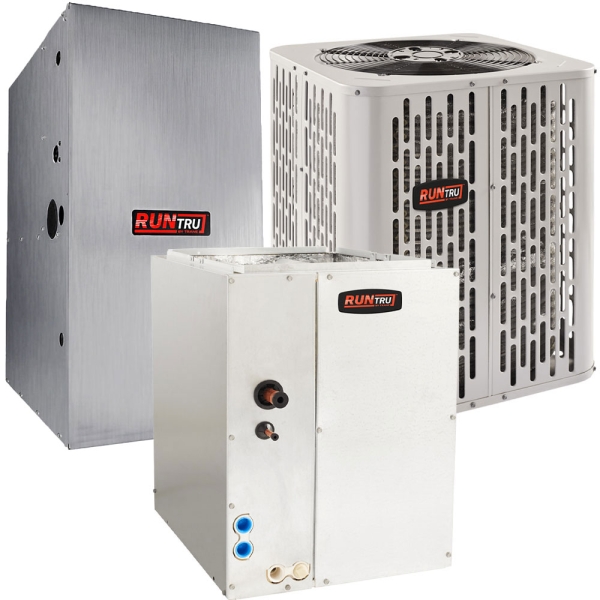

For an affordable and efficient heating and cooling system, this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System is an excellent choice. This set of appliances work together to keep your family comfortable in every season. This split system includes a central heat pump, a cased evaporator coil, and a multi speed gas furnace.

The Trane RunTru Central Heat Pump Condenser in this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System has a 3.5 ton cooling capacity and 14 SEER rating to ensure your home is at your comfort level. The heat pump condenser in this split system measures 28.6 high by 34.3 wide by 34.3 deep.

To ensure quiet operation that won't interrupt your daily activities, the Trane RunTru Central Heat Pump Condenser produces a low vibration, causing little noise. The unit smoothly runs in the background of your daily life to keep your home at your desired comfort level, even in scorching summers.

The refrigerant in this system is factory-charged R410-A, an environmentally friendly refrigerant that does not damage the ozone layer like more traditional options. A condenser fan, compressor contactor, low and high pressure switches, and a thermostatic expansion valve, or TXV, control this heat pump condenser's refrigerant.

The scroll compressor in this Trane RunTru Central Heat Pump Condenser has both overcurrent and over temperature protection to ensure the unit runs safely. This heat pump condenser features an all-aluminum condenser coil that efficiently transfers heat and provides low airflow resistance. To protect the coil from damage, it is covered on all four sides with louvered panels. The direct drived outdoor propeller fan in the Trane RunTru Central Heat Pump Condenser is dynamically and statically balanced.

The heat pump condenser's cabinet is made with heavy gauge, galvanized steel and covered with a weather-resistant powder paint finish. Each cabinet panel is tested with a 1,000 hour salt spray to prove it can stand the test of time outdoors, even in coastal areas with high air salinity.

The Trane RunTru Cased Evaporator Coil in this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System is efficient and durable. This appliance has a 3.5 to 5 ton capacity, and uses R-410A refrigerant, the same eco-friendly refrigerant used in this split system's heat pump. The measurements of this particular cased evaporator coil are 30.7 high by 21 wide by 21.5 deep.

The Trane RunTru Cased Evaporator Coil is housed in a cabinet made of durable and long lasting galvanized steel that is fully insulated for improved efficiency and reduced waste. The evaporator coil cabinet includes a drain pan that protects your floors from moisture created during the air conditioning process. The drain pain also has a double-sloped design and can withstand high temperatures.

Stay warm during the fall and winter with the Trane RunTru Multi Speed Gas Furnace in this 3.5 Ton 14.5 SEER 80K BTU 96% AFUE Multi Speed Trane RunTru Central Heat Pump & Gas Furnace Split System. This appliance creates and distributes warmed air for your home and can be trusted for its quality construction, dependability, and efficiency.

The Trane RunTru Multi Speed Gas Furnace in this split system has an 80,000 BTU capacity, 4-5 ton nominal air flow, and 96% annual fuel utilization efficiency (AFUE). It runs with an efficient constant torque blower motor (ECM) that has nine speeds. The multiport, inshot burners in this unit operate quietly, reducing unnecessary background noise. Ready to install for use with natural gas, you can easily convert it for LP gas with a separately purchased conversion kit.

Both heat exchangers in this Trane RunTru Multi Speed Gas Furnace are made with cycle tested, heavy gauge tubular stainless steel that quickly transfers heat. As opposed to a traditional pilot light, the silicon nitride hot surface ignition system in this gas furnace does not run continuously. With this safer and more modern ignition system there is no need to check and relight the pilot.

The Vortica II Blower is designed exclusively for Trane RunTru gas furnaces and improves airflow efficiency. This blower ensures gas fumes are discharged outdoors so you know the air you breathe is fresh, clean, and safe.

The Integrated System Control in this Trane RunTru Multi Speed Gas Furnace allows you to easily manage your system. This control unit is a solid state device that continuously monitors for the presence of flame, so you can trust your home is safe, and its exclusive operational program gives you control of many of the gas furnace's functions.

This gas furnace can be installed in three configurations: upflow, horizontal left, or horizontal right. The dimensions of this specific model are 34 high by 21 wide by 28.75 deep.

Housing this furnace is a heavy gauge steel wrap-around cabinet that has a durable and attractive baked-on enamel finish that is easy to clean. This cabinet offers two venting options no matter your installation setup and does not have knockouts.

Each of the appliances in this split system is designed, tested, and assembled in the USA.
