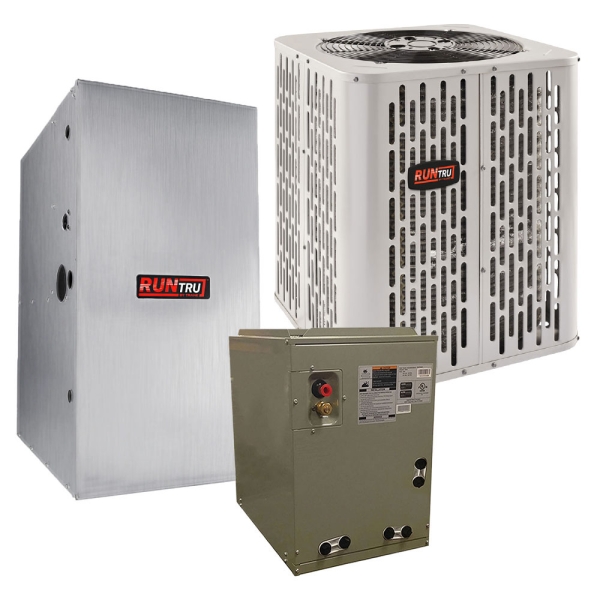

Name: 3.5 Ton 14 SEER 100K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal
Brand: RunTru
SKU: HA21609
Price: 4612.02 USD
Availability: OutOfStock

✓ Link Copied!

Shop All RUNTRU

Item:

HA21609

Model:

A4AC4042A1000,A952V100CU4S,4MXCC007AC6

Condition:

New

This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

Recommended Alternative:

Brand Goodman

1.5 Ton 14.5 SEER2 40k BTU 80% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Upflow - R32

$3,829.00

Out of stock

Let me know when it’s back in stock:

Description / Documents

Additional Documents

From the Manufacturer

4MXC Customer Brochure

4MXCC Specification Manual

A4AC4 Installation Manual

A4AC4 Specification Manual

RunTru A952V BAYBURNER Installation Manual

RunTru A952V Customer Brochure

RunTru A952V Heat Shield Installation Manual

RunTru A952V Owners Manual

Customer Reviews / Q&A

Specifications

System Overview

Model	A4AC4042A1000,A952V100CU4S,4MXCC007AC6
UPC	850017455061
AHRI Number	206137031
Gas Furnace Efficiency	96+%
Bundle Avg Coverage Area	1,750 - 2,100 Sq Ft
Bundle Cooling Capacity	3.5 Ton
Bundle Cooling Efficiency	14 SEER
EER	12.2
Region Compatibility	Nationwide

A952V100CU4S Specifications:

Model	A952V100CU4S
UPC	850017455238
AHRI Number	204606321
Product Height (in)	34
Gas Furnace Efficiency	96+%
Product Length (in)	28.75
Configuration	Floor Mounted
Product Width (in)	21
Air Flow Direction	Horizontal, Upflow
Avg Coverage Area	2,000 - 2,400 Sq Ft
Blower Motor	Variable Speed
Cooling Compatibility (up to)	4 Ton
Electrical Phase	1-Phase
Exhaust Pipe	Metal
Fuel Source	Natural Gas
Gas Valve	Two Stage
Max Overcurrent Protection	15 amps
Weight (lbs)	154.000000
Primary Heating Capacity	95,001 - 100,000 BTU
System Application Type	Central Split Systems
Voltage	120
Warranty	5 Year Parts, 20 Year Heat Exchanger

4MXCC007AC6 Specifications:

Model	4MXCC007AC6
UPC	647535526706
Product Height (in)	26
Air Flow Direction	Horizontal, Vertical
Product Length (in)	21
Cooling Capacity	3 Ton, 3.5 Ton, 4 Ton
Product Width (in)	21
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Weight (lbs)	70.000000
Refrigerant	R-410a
Suction Line Size	7/8 inch
Warranty	5 Year Parts, 10 Year Evaporator Coil
