Name: 3.5 Ton 15.2 SEER2 100k BTU 96% AFUE 2 Stage Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32
Brand: Goodman
SKU: HA27759
Price: 6649 USD
Availability: InStock

✓ Link Copied!

GOODMAN

Item:

HA27759

Model:

GLXS5BA4210,CAPTA6030D3,GR9T961004CN

Condition:

New

Was: $6,649.00 Add to Cart for Discount

Payments

with financing > Apply Now

IWAE Summer Sale Up to 10% Sitewide Use Code: USA10

In stock

Ships Within 2-3 Business Days

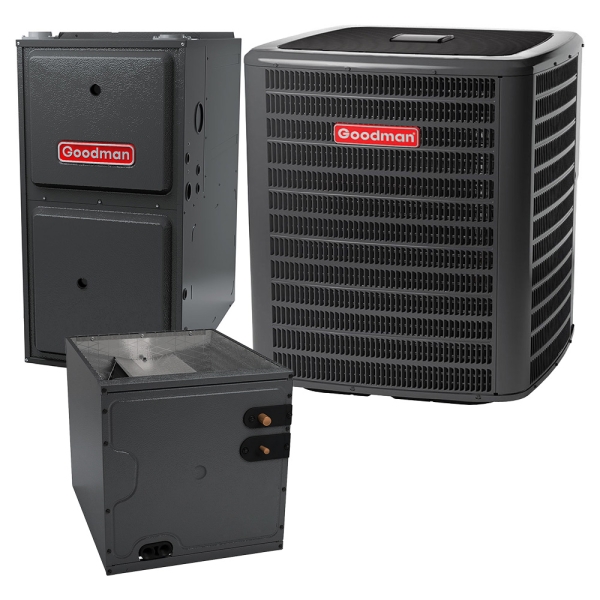

This Bundle Includes:

3.5 Ton 15.2 SEER2 Goodman Central Air Conditioner Condenser - R32

Item: HA27265Model: GLXS5BA4210 Qty: 1

5 Ton Goodman Evaporator Coil - Upflow/Downflow - TXV - 24.5" Cabinet - R-32

Item: HA25182Model: CAPTA6030D3 Qty: 1

100k BTU 96% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA25345Model: GR9T961004CN Qty: 1

Description / Documents

Additional Documents

From the Manufacturer

CAPFA/CAPTA/CHPTA/CAPEA R-32 Specification Manual

CAPFA/CAPTA/CHPTA/CAPEA Warranty

CAPTA R-32 Parts Manual

GD9T96/GRT96 Specification Manual

GLXS5B Specification Manual

Goodman Furnace Warranty Sheet

Goodman GLXS5 Warranty Manual

GR9T96 Parts Manual

GR9T96/GD9T96 Installation Manual

Customer Reviews / Q&A

Specifications

System Overview

Model	GLXS5BA4210,CAPTA6030D3,GR9T961004CN
AHRI Number	215380950
Gas Furnace Efficiency	96+%
Bundle Avg Coverage Area	1,750 - 2,100 Sq Ft
Bundle Cooling Capacity	3.5 Ton
Bundle Cooling Efficiency (SEER2)	15.2
Primary Heating Capacity	95,001 - 100,000 BTU
Region Compatibility	Nationwide

GLXS5BA4210 Specifications:

Model	GLXS5BA4210
UPC	663051735507
AHRI Number	215380889
Product Height (in)	36.5
Avg Coverage Area	1,750 - 2,100 Sq Ft
Product Length (in)	35.5
Compressor	Single Stage
Product Width (in)	35.5
Cooling Capacity	3.5 Ton
Electrical Phase	1-Phase
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Max Overcurrent Protection	30 amps
Weight (lbs)	250.000000
Refrigerant	R-32
Cooling Efficiency (SEER2)	15.2
Suction Line Size	1 1/8 inch
System Application Type	Central Split Systems
Voltage	240
Warranty	10 Year Parts
Region Compatibility	Nationwide

CAPTA6030D3 Specifications:

Model	CAPTA6030D3
UPC	663051688452
Product Height (in)	30
Air Flow Direction	Downflow, Upflow
Product Length (in)	21
Cooling Capacity	5 Ton
Product Width (in)	24.5
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Weight (lbs)	70.000000
Refrigerant	R-32
Suction Line Size	7/8 inch
Warranty	10 Year Parts

GR9T961004CN Specifications:

Model	GR9T961004CN
AHRI Number	215225029
Product Height (in)	34.5
Gas Furnace Efficiency	96+%
Product Length (in)	28.75
Product Width (in)	21
Air Flow Direction	Horizontal, Upflow
Blower Motor	High Efficiency
Cooling Compatibility (up to)	4 Ton
Electrical Phase	1-Phase
Exhaust Pipe	PVC
Fuel Source	Natural Gas
Gas Valve	Single Stage
Max Overcurrent Protection	15 amps
Weight (lbs)	140.000000
Primary Heating Capacity	95,001 - 100,000 BTU
System Application Type	Central Split Systems
Vent Connection	3 inches
Voltage	120
Warranty	10 Year Parts, Lifetime Heat Exchanger
