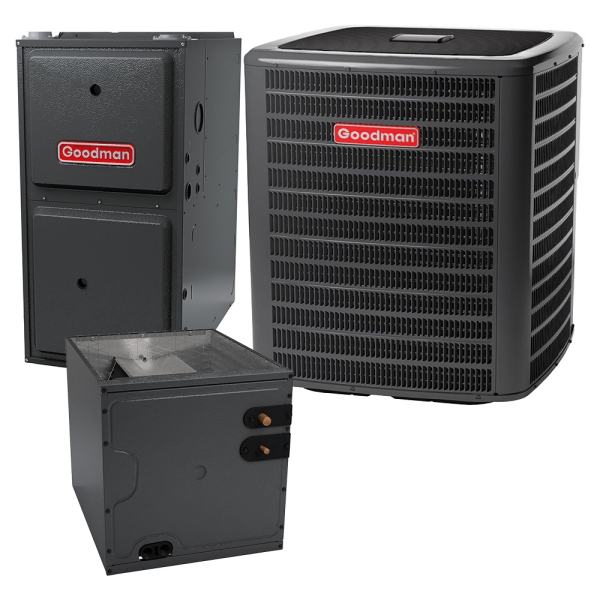

3.5 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Description / Documents
Dealing with poor climate control performance from the HVAC system that’s supposed to be bringing your home comfort in shifting seasonal conditions? Once the antiquated hardware you have falls flat, bring in the 3.5 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 for a solution that’s up to snuff. Earning the support of ETL listing and AHRI certification, the Goodman AC & Gas System passes the thorough tests of third-party agencies to prove the legitimacy of its safe, reliable performance claims. Breathe easy in each room of your 1750 to 2100 square foot space, no matter the season, with the integration of a 3.5 Ton Goodman Split System.
During the high heat conditions of summertime, the AC in the 3.5 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 cools you back down with the brisk conditions you want to beat the heat. With a steel louver coil guard on the durable cabinet, the Goodman AC earns 500-hour salt-spray approval that highlights the longevity of the hardware. Between the side entry and top panel with a removable grille that complies with UL 60335-2-40 requirements, any qualified technician can service and set up the unit with ease. Including hardware like a filter drier, high-efficiency scroll compressor, and extended-life capacitors, the Goodman Split System has what you need and then some to supply the cool, comfortable conditions you want in your home all summer long.
When the temperature outside takes a nosedive, the furnace in the 3.5 Ton 15.2 SEER2 120k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 brings the heat. With the internal insulation lining the heat exchanger and blower sections of the heavy-gauge steel cabinet, the Goodman Gas Furnace minimizes heat loss with a cabinet air leakage rate that’s at or below 2%. Using a multi-speed ECM blower motor, two-stage gas valve, and two heat exchangers, the Goodman Furnace offers quiet efficiency that optimizes your comfort beyond mere temperature regulation. Offering left and right side connections for gas and electrical hook-ups alongside compatibility with direct and non-direct venting setups, you can relax knowing the Goodman Split System has the flexibility to heat your whole home through the worst conditions winter throws your way.
Having a whole home heating and cooling solution with the AC condenser, furnace, and evaporator coil combination in this Goodman bundle is a game changer, so why leave your family struggling to stay comfortable? Decide on a 3.5 Ton 120k BTU Vertical Goodman Central Air Conditioner & Gas Furnace Split System running on R32 refrigerant today and ensure your loved ones have access to the year-round comfort they crave all year long.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS5BA4210,CAPTA6030D3,GR9S961205DN |
|---|---|
| AHRI Number | 215380943 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| Region Compatibility | Nationwide |

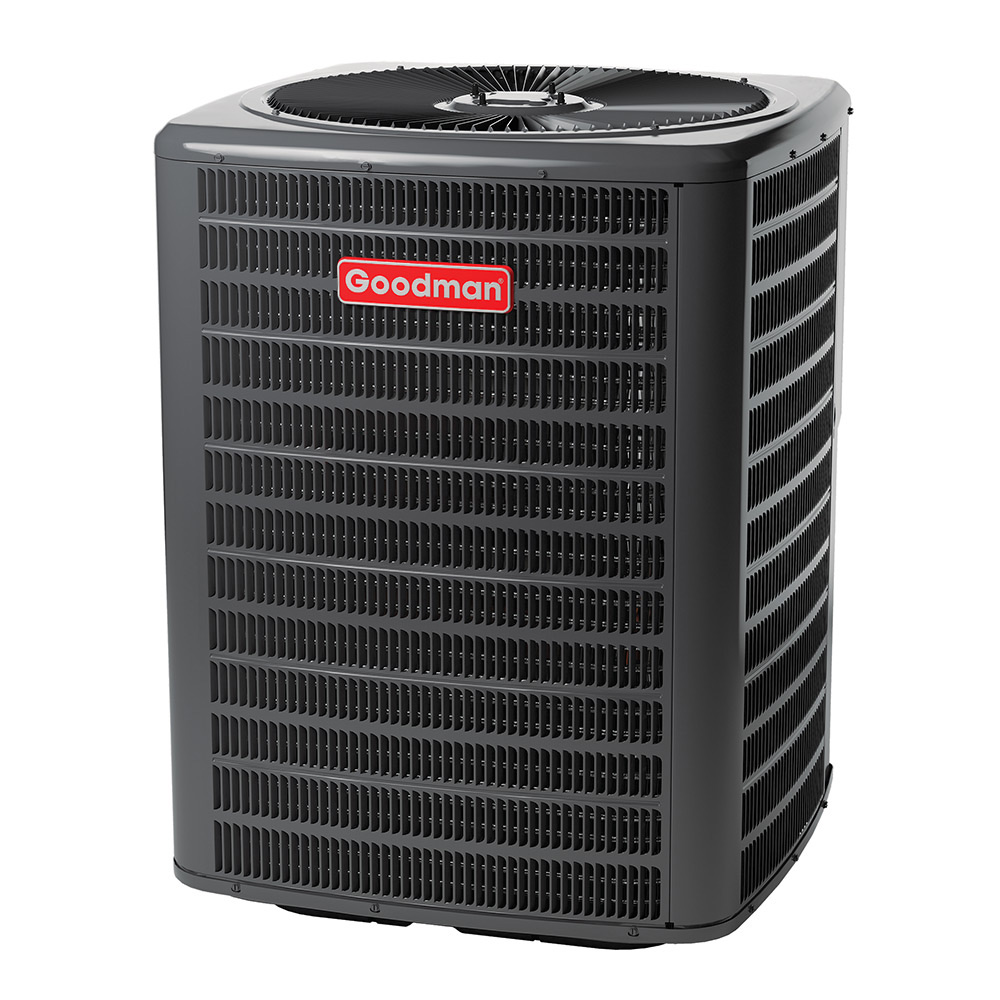

GLXS5BA4210 Specifications:
| Model | GLXS5BA4210 |
|---|---|
| UPC | 663051735507 |
| AHRI Number | 215380889 |
| Product Height (in) | 36.5 |
| Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 250.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CAPTA6030D3 Specifications:
| Model | CAPTA6030D3 |
|---|---|
| UPC | 663051688452 |
| Product Height (in) | 30 |
| Air Flow Direction | Downflow, Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 24.5 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 70.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GR9S961205DN Specifications:
| Model | GR9S961205DN |
|---|---|
| AHRI Number | 215224977 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Product Width (in) | 24.5 |
| Air Flow Direction | Horizontal, Upflow |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 156.000000 |
| Primary Heating Capacity | 115,001 - 120,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
