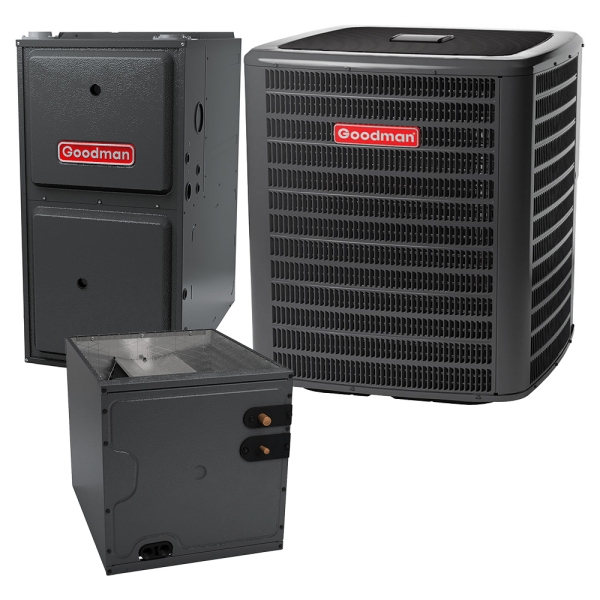

3.5 Ton 15.2 SEER2 80k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Description / Documents
Enjoying comfortable temperatures throughout your home in any season shouldn’t be a struggle for your HVAC system. If your outdated hardware can’t keep up with the modern climate in your region, an upgrade to the 3.5 Ton 15.2 SEER2 80k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 can bring your climate control results up to snuff with your expectations. Gaining the support of ETL listing and AHRI certification, the Goodman AC & Gas System has proven the legitimacy of its safety and operational claims by passing thorough testing from third-party agencies. Enjoy your 1750 to 2100 square foot space in every season no matter how your needs shift with a 3.5 Ton Goodman Split System.
Even in the hot temperatures of summertime, the AC in the 3.5 Ton 15.2 SEER2 80k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 keeps your home cool and comfortable with ease. Using a steel louver coil guard in tandem with the durable construction of the casing, the Goodman AC passes a 500-hour salt-spray test that highlights the longevity of the hardware. The removable top grille with UL 60335-2-40 compliance and a second side panel makes it simple for any qualified professional to access the internals when installing and servicing the unit. Between the factory-installed filter drier, high-efficiency scroll compressor, and extended-life capacitors, the Goodman Split System goes above and beyond to keep your home crisp no matter how high the temperature rises outside.
When the cold hits in full force, the furnace in the 3.5 Ton 15.2 SEER2 80k BTU 96% AFUE Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 supplies the toasty temperatures you and your loved ones crave. The heavy-gauge steel cabinet sports a durable finish and full lining of insulation in the heat exchanger and blower sections, cabinet air leakage is kept at or under a rate of 2% for top-tier efficiency. Between the left and right side connections for gas and electrical service and certification to work in both direct and non-direct venting applications, the Goodman Furnace offers the versatility to suit almost any home layout. Taking advantage of two heat exchangers, a quiet single-speed induced draft blower, and a single-stage gas valve, the Goodman Split System has everything you need and more to stay warm all winter long.
With the game changing combination of AC condenser, furnace, and evaporator coil included in this bundle, it’s easy to see the powerful climate control capabilities that could be yours with one change. Don’t hesitate another moment. Secure a 3.5 Ton 80k BTU Vertical Goodman Central Air Conditioner & Gas Furnace Split System equipped with R32 refrigerant today and enjoy the uncompromising temperature regulation results you and your family deserve all year long.
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXS5BA4210,CAPTA4230C3,GR9S960805CU |
|---|---|
| AHRI Number | 215380910 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency (SEER2) | 15.2 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| Region Compatibility | Nationwide |
GLXS5BA4210 Specifications:
| Model | GLXS5BA4210 |
|---|---|
| UPC | 663051735507 |
| AHRI Number | 215380889 |
| Product Height (in) | 36.5 |
| Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Single Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 250.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 15.2 |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CAPTA4230C3 Specifications:
| Model | CAPTA4230C3 |
|---|---|
| UPC | 663051688421 |
| Product Height (in) | 30 |
| Air Flow Direction | Downflow, Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 3.5 Ton |
| Product Width (in) | 21 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 66.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GR9S960805CU Specifications:
| Model | GR9S960805CU |
|---|---|
| AHRI Number | 215516903 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.9 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 2.5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 145.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
