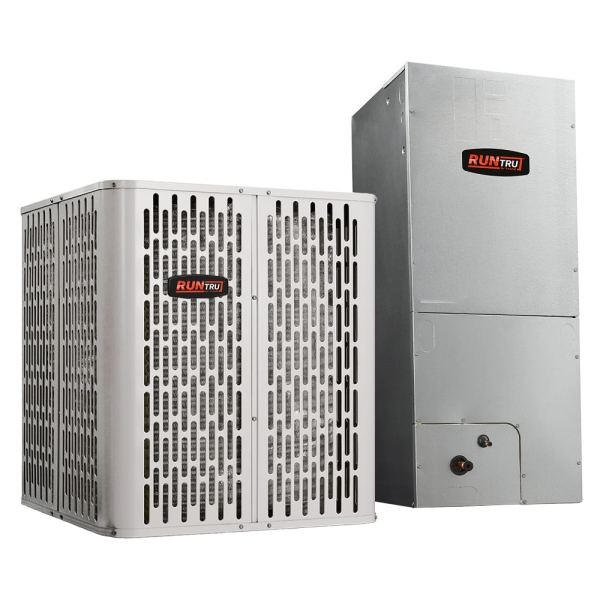

3.5 Ton 15.2 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System - Multiposition

Item
HA23711
Models A4HP5042D1000A, A4AH4E42B1C30A
Condition
New


Customize 3.5 Ton 15.2 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System - Multiposition

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    3.5 Ton 15.2 SEER2 Trane RunTru Central Heat Pump Condenser
    Item: HA23697 Model: A4HP5042D1000A
    Qty: 1

    Affordable HVAC Installation


    What's included

    Tired of the relentless struggle with your antiquated heat pump system? It's time to bid adieu to those erratic temperature shifts and welcome uncompromising performance with the 3.5 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System. Earning both AHRI and UL 1995 certifications as well as a SEER2 rating of 16, you can find reassurance in the fact that every performance claim has been validated to ensure that your 1750 to 2100 square foot space feels the dependable climate control you've been craving. Engineered to operate at peak efficiency even in blistering temperatures of up to 115 degrees Fahrenheit, this Trane Split System can hold its own even in the most tropical of regions. While the default configuration of this Trane Heat Pump cools your space to a relaxing 55 degrees Fahrenheit, a diverse range of optional ambient kits equips you with the tools to lower your home's temperature to an extremely cool 20 degrees Fahrenheit, giving you with the flexibility needed to align with your desired home ambiance.

    The heat pump system integrated into the 3.5 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System leverages a plethora of carefully chosen features to produce unmatched results. The unit's casing, fashioned from heavy-gauge galvanized steel, is further fortified by a weather-resistant powder paint finish. Bolstering this durability, all panels have successfully withstood a grueling 1000-hour salt spray test, guaranteeing long-lasting durability. The condenser coil enjoys even more safeguarding thanks to louvered panels on all sides, reducing air resistance and increasing heat transfer. Arriving on your doorstep fully charged with ten feet of tested connecting line, this Trane Heat Pump comes equipped with all the necessary tools to streamline the setup process, saving you both time and money.

    The air handler in the 3.5 Ton 16 SEER2 Multi Speed Trane RunTru Central Heat Pump Split System maintains an equally impressive performance. Coming in one uniform color and full of captured foil-faced insulation, this Trane Air Handler attains an insulating value of R-4.2 while keeping an air leak percentage of 2% or less. The all-aluminum coil fights off corrosion while sporting options for upflow, downflow, and horizontal left or right applications, promising that this 3.5 Ton Trane can flex to accommodate your home's unique layout. The easily removable horizontal drain pan helps simplify common servicing tasks.

    With all these advantages and more, why delay any further? Elevate your home's comfort with this Trane Heat Pump bundle and transform your home into your personal sanctuary.

    More Information
    Model A4HP5042D1000A,A4AH4E42B1C30A
    UPC 601954744202
    AHRI Number 212579320
    Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
    Bundle Cooling Capacity 3.5 Ton
    Bundle Cooling Efficiency (SEER2) 15.2
    EER2 12
    Heat Pump Efficiency (HSPF) 7.8
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    A4HP5042D1000A Specifications:

    More Information
    Model A4HP5042D1000A
    UPC 601954744202
    AHRI Number 212579318
    Product Height (in) 45
    Avg Coverage Area 1,750 - 2,100 Sq Ft
    Product Length (in) 34
    Compressor Single Stage
    Product Width (in) 34
    Cooling Capacity 3.5 Ton
    Electrical Phase 1-Phase
    Heat Pump Efficiency (HSPF) 8.1
    Heat Pump Efficiency (HSPF2) 7.8
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 40 amps
    Weight (lbs) 277.000000
    Primary Heating Capacity 40,001 - 45,000 BTU
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 15.2
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    A4AH4E42B1C30A Specifications:

    More Information
    Model A4AH4E42B1C30A
    UPC 647535674445
    Product Height (in) 51.4
    Configuration Floor Mounted
    Product Length (in) 21.13
    Air Flow Direction Downflow, Horizontal, Upflow
    Product Width (in) 23.5
    Blower Motor High Efficiency
    Cooling Capacity 3.5 Ton
    Electrical Phase 1-Phase
    Heat Strip Compatibility Up to 20 kW
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 155.000000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts, 10 Year Evaporator Coil
