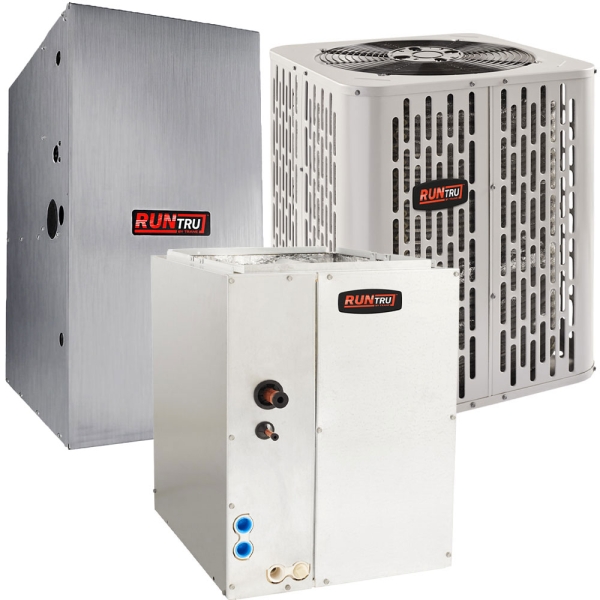

3.5 Ton 15 SEER 100K BT 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal

For an affordable and efficient heating and cooling system, choose this 3.5 Ton 15 SEER 100K BT 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System. These appliances work together to keep your family comfortable in every season. This split system includes a heat pump, evaporator coil, and gas furnace to meet your heating and cooling needs.

The Trane RunTru Heat Pump Condenser in this 3.5 Ton 15 SEER 100K BT 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System has a 3.5 ton cooling capacity and 14 SEER rating to ensure your home is comfortable. This particular heat pump condenser unit measures 28.6 high by 34.3 wide by 34.3 deep. To ensure quiet operation that won't interrupt your daily activities, this heat pump condenser produces a low vibration that makes little noise. The unit smoothly runs in the background of your daily life to keep your space at your desired comfort level.

The refrigerant in this system is factory-charged R410-A, an environmentally friendly refrigerant that does not damage the ozone layer. A condenser fan, compressor contactor, low and high pressure switches, and a thermostatic expansion valve, or TXV, control this system's refrigerant. The scroll compressor has both overcurrent and over temperature protection to ensure the unit runs safely, low operating vibration, and a centrifugal oil pump.

This heat pump has an all-aluminum condenser coil that efficiently transfers heat and provides low airflow resistance. To protect the coil from damage, it is covered on all four sides with louvered panels. The direct drived outdoor propeller fan in the Trane RunTru Heat Pump Condenser is dynamically and statically balanced for optimal operation. The cabinet is made with heavy gauge, galvanized steel that has a weather-resistant powder paint finish. Each cabinet panel is put to a 1,000 hour salt spray test to prove it can stand the test of time outdoors, even in coastal areas with high air salinity.

The Trane RunTru Cased Evaporator Coil in this 3.5 Ton 15 SEER 100K BT 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System is both efficient and durable. This appliance can work well in any home arrangement with its 3.5 to 5 ton capacity. The cased evaporator coil uses R-410A refrigerant, the same eco-friendly refrigerant used in this split system's heat pump, and is controlled with a TXV. The measurements of this particular cased evaporator coil are 30.7 high by 21 wide by 21.5 deep.

The Trane RunTru Cased Evaporator Coil is housed in a cabinet that is made of durable and long lasting galvanized steel. The cabinet is fully insulated for improved efficiency and reduced waste. The evaporator coil cabinet includes a drain pan that protects your floors from moisture created during the air conditioning process. The drain pain also has a double-sloped design and can withstand high temperatures.

The Trane 2 Stage Gas Furnace will keep you warm when temperatures begin to fall and is affordable, dependable, and built to last. The furnace will move warm air throughout your space, ensuring you and your family are comfortable on the snowiest of days. It will heat your home with its 100,000 BTU capacity, 5 ton nominal air flow, and 96% annual fuel utilization efficiency (AFUE), which meets utility rebates The gas furnace's multiport inshot burners run quietly and efficiently, humming along in the background without making unnecessary noise.

With a certification from the American Gas Association, this Trane RunTru 2 Stage Gas Furnace can be used with natural or liquefied petroleum (LP) gas. Default setup is for natural gas, but you can easily convert it to LP gas with a separately purchased conversion kit.

The blower motor in this appliance reduces your home's energy use and features variable speeds. The primary heat exchanger is made of heavy gauge tubular stainless steel that is cycle-tested and corrosion resistant. The secondary heat exchanger is a specialty 29-4C™ stainless steel that can reclaim heat from flue gases to improve your system's efficiency.

As a safety measure, the Trane RunTru 2 Stage Gas Furnace features an integrated system control that continuously monitors for the presence of flame. This solid state device operates with an exclusively designed operational program and includes a display that shows self diagnostic information for troubleshooting.

Instead of a continuously burning pilot light, this gas furnace uses a silicon nitride hot surface ignition system that lights the main burners on demand, reducing fuel usage. This more modern ignition system is safer than a pilot light and eliminates the chore of checking and relighting the pilot. For additional safety, this gas furnace uses a dual solenoid combination gas valve and regulator.

The cabinet for the Trane RunTru 2 Stage Gas Furnace is made of heavy gauge steel that provides extra strength and protection. The dimensions of the specific gas furnace model in this split system are 34 high by 21 wide by 28.75 deep. This unit has three setup options: upflow, horizontal left, or horizontal right. Each of these configurations has two venting options and does not include cabinet knockouts. The manufacturer certifies that this Trane RunTru 2 Stage Gas Furnace leaks 1.4% or less of nominal air conditioning and is in compliance with ASHRAE standards.

Each of the appliances in this 3.5 Ton 15 SEER 100K BT 96% AFUE 2 Stage Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split Systemm is designed, tested, and assembled in the USA.
