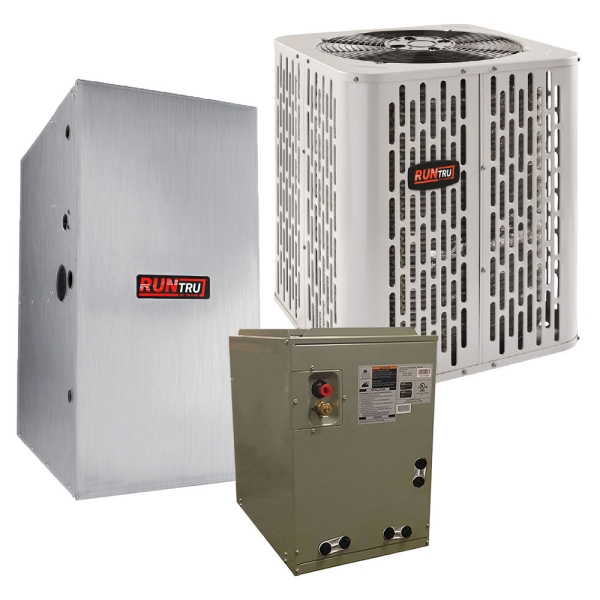

3.5 Ton 15 SEER 80K BTU 96% AFUE Multi Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal
Shop All RUNTRU
Item:
HA21610
Model:
A4AC4042A1000,A951X080CU5S,4MXCC009AC6
Condition:
New
This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Accessories
Description / Documents
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | A4AC4042A1000,A951X080CU5S,4MXCC009AC6 |
|---|---|
| UPC | 850017455061 |
| AHRI Number | 206137638 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Bundle Cooling Capacity | 3.5 Ton |
| Bundle Cooling Efficiency | 15 SEER |
| EER | 12.2 |
| Region Compatibility | Nationwide |
A951X080CU5SA Specifications:
| Model | A951X080CU5SA |
|---|---|
| AHRI Number | 204606333 |
| Product Height (in) | 34 |
| Gas Furnace Efficiency | 95% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Upflow |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 149.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches |
| Voltage | 120 |
| Warranty | 5 Year Parts, 20 Year Heat Exchanger |
4MXCC009AC6 Specifications:
| Model | 4MXCC009AC6 |
|---|---|
| UPC | 647535679631 |
| Product Height (in) | 30 |
| Air Flow Direction | Horizontal, Vertical |
| Product Length (in) | 21 |
| Cooling Capacity | 3.5 Ton, 4 Ton, 5 Ton |
| Product Width (in) | 21 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 91.000000 |
| Refrigerant | R-410a |
| Suction Line Size | 7/8 inch |
| Warranty | 5 Year Parts, 10 Year Evaporator Coil |
