This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.
Out of stock
Loading...
Doing away with the annoyance generated by the unpredictable temperatures that ruin the ambiance of your space shouldn’t entail a more complex change than replacing your outdated HVAC system. Enjoy the dependable performance you've been seeking in your home with the state-of-the-art technology integrated into the 3.5 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal. This Trane Central Heat Pump adheres to UL 1995 standards while also earning AHRI certification, affirming the legitimacy of all functional claims. This 3.5 Ton Trane system achieves a SEER2 rating of 15 and an outstanding AFUE rating of 96% to easily manage your 1750 to 2100 square foot living space.
Accessories
Description / Documents

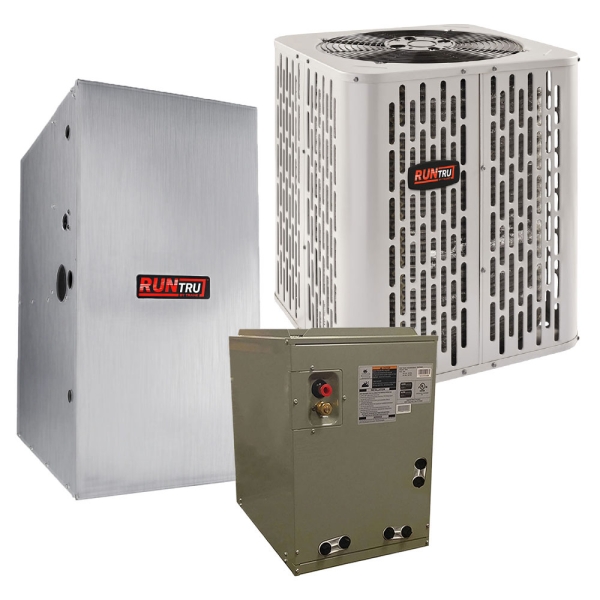

Doing away with the annoyance generated by the unpredictable temperatures that ruin the ambiance of your space shouldn’t entail a more complex change than replacing your outdated HVAC system. Enjoy the dependable performance you've been seeking in your home with the state-of-the-art technology integrated into the 3.5 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal. This Trane Central Heat Pump adheres to UL 1995 standards while also earning AHRI certification, affirming the legitimacy of all functional claims. This 3.5 Ton Trane system achieves a SEER2 rating of 15 and an outstanding AFUE rating of 96% to easily manage your 1750 to 2100 square foot living space.

Once the installation process is completed, the 3.5 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal demonstrates how it surpasses the competition. Using 10 feet of tested connecting line and the smallest rated indoor evaporative coil match, this Trane Gas Furnace works in ambient temperatures spanning from up to 115 degrees all the way down to 55 degrees Fahrenheit, even functioning in temperatures as low as 20 degrees with the help of optional accessory kits. The refrigerant system controls include a condenser fan, compressor contactor, as well as low and high pressure switches. The centrifugal oil pump even ensures over temperature and pressure protection, bringing reduced vibration and minimized sound to create the tranquil atmosphere you deserve.

With so many robust safety features in place, the 3.5 Ton 15 SEER 60K BTU 96% AFUE Variable Speed Trane RunTru Central Heat Pump & Gas Furnace Split System - Upflow/Horizontal does everything possible to protect the inner workings. Constructed from pre-painted heavy gauge, galvanized steel with a weather-resistant powder paint finish, the casing of this Trane RunTru Split System even undergoes a thorough 1000 hour salt spray test. Equipped with both cooling only and heat/cooling modes, the thermostat stays secured behind a locking cover to protect the unit from potential mishaps. The condenser coil further reinforces these safety nets, shielding all four sides with louvered panels that guarantee low airflow resistance and efficient heat transfer, allowing you to enjoy your ideal environment regardless of the conditions outside.

With unmatched climate control within your reach, why delay the decision any further? Secure this Trane Split System and transform your home into the sanctuary you've been dreaming of.

Additional Documents

From the Manufacturer

Customer Reviews / Q&A
Specifications

System Overview

Model A4HP4042D1000,A952V080CU5S,4MXCC009AC6
AHRI Number 211583371
Gas Furnace Efficiency 96+%
Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
Bundle Cooling Capacity 3.5 Ton
Bundle Cooling Efficiency (SEER2) 15 SEER2
EER2 12
Heat Pump Efficiency (HSPF2) 7.80
Region Compatibility Nationwide

A952V080CU5SB Specifications:

Model A952V080CU5SB
AHRI Number 204606320
Product Height (in) 34
Gas Furnace Efficiency 96+%
Product Length (in) 28.75
Configuration Floor Mounted
Product Width (in) 21
Air Flow Direction Horizontal, Upflow
Avg Coverage Area 2,500 - 3,000 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Weight (lbs) 149.000000
Primary Heating Capacity 75,001 - 80,000 BTU
System Application Type Central Split Systems
Vent Connection 2 inches
Voltage 120
Warranty 5 Year Parts, 20 Year Heat Exchanger

4MXCC009AC6 Specifications:

Model 4MXCC009AC6
UPC 647535679631
Product Height (in) 30
Air Flow Direction Horizontal, Vertical
Product Length (in) 21
Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
Product Width (in) 21
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 91.000000
Refrigerant R-410a
Suction Line Size 7/8 inch
Warranty 5 Year Parts, 10 Year Evaporator Coil
