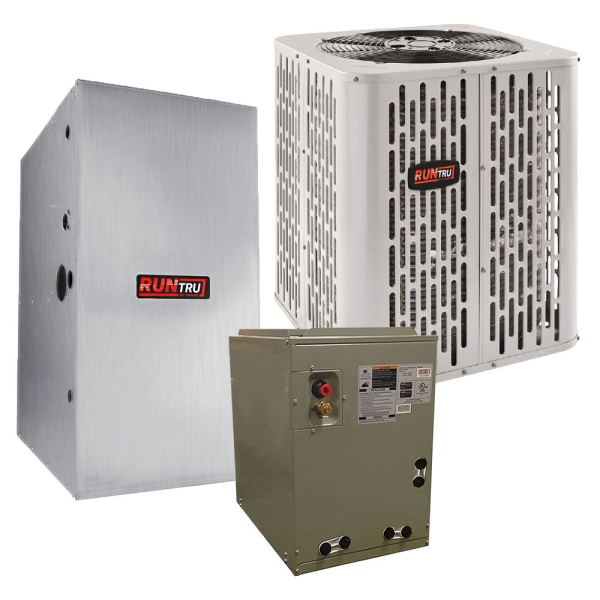

3.5 Ton 15 SEER2 100K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal

Item
HA23411
Models A4AC4042D1000, A952V100CU5S, 4MXCC009AC6
Condition
New


Customize 3.5 Ton 15 SEER2 100K BTU 96% AFUE 2 Stage Variable Speed Trane RunTru Central Air Conditioner & Gas Furnace Split System - Upflow/Horizontal

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    What's included



    100K BTU 96% AFUE Variable Speed 2 Stage Trane RunTru Gas Furnace - Upflow/Horizontal - 21" Cabinet

    100K BTU 96% AFUE Variable Speed 2 Stage Trane RunTru Gas Furnace - Upflow/Horizontal - 21

    A 100K BTU 96% AFUE Variable Speed 2 Stage Trane RunTru Gas Furnace - Upflow/Horizontal - 21inch Cabinet will keep you warm when temperatures begin to fall and is affordable, dependable, and built to last. The furnace will stream warm air throughout your space, ensuring you and your family are comfortable during the winter months.

    From Trane, the RunTru line of products are expertly designed, tested, and assembled here in the USA.

    This 100K BTU 96% AFUE Variable Speed 2 Stage Trane RunTru Gas Furnace - Upflow/Horizontal - 21inch Cabinet will heat your home with its 100,000 BTU capacity, 5 ton nominal air flow, and 96% annual fuel utilization efficiency (AFUE), which meets utility rebates and can reduce your utility bill.

    The gas furnace's multiport inshot burners run quietly and efficiently, humming along in the background of your daily life without making unnecessary noise.

    With a certification from the American Gas Association, this Trane RunTru gas furnace can be used with natural or liquefied petroleum (LP) gas. The unit's default setup is with natural gas, but you can easily convert it for LP gas use with a separately purchased conversion kit.

    The Trane RunTru primary heat exchanger is made of heavy gauge tubular stainless steel that is cycle-tested and corrosion resistant. The secondary heat exchanger is made of specialty 29-4C™stainless steel that can reclaim heat from flue gases and improve your system's efficiency.

    The blower motor in this appliance works to keep your family comfortable when colder weather rolls in, and it reduces your home's energy use. The blower motor creates enough airflow for most heating and cooling requirements, and it features variable speeds.

    With these durable and quality components, you can expect to make fewer maintenance calls, and if you do need them replacement parts are affordable and readily available.

    For increased safety, this Trane RunTru model features an integrated system control that continuously monitors for the presence of flame. This solid state device operates with an exclusively designed operational program, so you can manage your system. The integrated control system also includes a display that shows self diagnostic information that can help you troubleshoot when needed. A rain shield protects the control unit from condensate.

    Instead of using a continuously burning pilot light found in most traditional gas furnaces, this Trane RunTru gas furnace uses a silicon nitride hot surface ignition system that lights the main burners on demand, reducing fuel usage. This more modern ignition system is safer than a pilot light and eliminates the chore of checking and relighting the pilot.

    For additional safety, this Trane RunTru gas furnace uses a dual solenoid combination gas valve and regulator.

    The cabinet for this Trane RunTru gas furnace is made of heavy gauge steel that wraps around the unit for extra strength and protection. The dimensions of this specific gas furnace model are 34 high by 21 wide by 28.75 deep. These measurements are standard for the HVAC industry, which means this gas furnace is compatible with larger, high-efficiency coils and other common accessories.

    With its manageable size, this Trane RunTru gas furnace can be easily moved and installed out of the way in tight spaces such as small closets or short basements. This heating appliance has three setup options: upflow, horizontal left, or horizontal right. Each of these configurations has two venting options and does not include cabinet knockouts.

    The manufacturer certifies that this 100K BTU 96% AFUE Variable Speed 2 Stage Trane RunTru Gas Furnace - Upflow/Horizontal - 21inch Cabinet leaks 1.4% or less of nominal air conditioning and is in compliance with ASHRAE standards.

    The Trane RunTru's limit setting and rating data were established and approved under conditions established by the American National Standards Institute (ANSI) and is Fan Energy Rating (FER) compliant.

    More Information
    Model A4AC4042D1000,A952V100CU5S,4MXCC009AC6
    UPC 647535603698
    AHRI Number 210372338
    Gas Furnace Efficiency 96+%
    Bundle Avg Coverage Area 1,750 - 2,100 Sq Ft
    Bundle Cooling Capacity 3.5 Ton
    Bundle Cooling Efficiency (SEER2) 15
    EER2 12
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    A4AC4042D1000 Specifications:

    More Information
    Model A4AC4042D1000
    UPC 647535603698
    Product Height (in) 36.6
    Avg Coverage Area 1,750 - 2,100 Sq Ft
    Product Length (in) 34.3
    Compressor Single Stage
    Product Width (in) 34.3
    Cooling Capacity 3.5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 35 amps
    Weight (lbs) 246.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 14
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts, 10 Year Condenser Coil, 10 Year Compressor
    Region Compatibility Nationwide

    A952V100CU5S Specifications:

    More Information
    Model A952V100CU5S
    UPC 850017455245
    AHRI Number 204606322
    Product Height (in) 34
    Gas Furnace Efficiency 96+%
    Product Length (in) 28.75
    Configuration Floor Mounted
    Product Width (in) 21
    Air Flow Direction Horizontal, Upflow
    Avg Coverage Area 2,500 - 3,000 Sq Ft
    Blower Motor Variable Speed
    Cooling Compatibility (up to) 5 Ton
    Electrical Phase 1-Phase
    Exhaust Pipe Metal
    Fuel Source Natural Gas
    Gas Valve Two Stage
    Max Overcurrent Protection 15 amps
    Weight (lbs) 155.000000
    Primary Heating Capacity 95,001 - 100,000 BTU
    System Application Type Central Split Systems
    Voltage 120
    Warranty 5 Year Parts, 20 Year Heat Exchanger

    4MXCC009AC6 Specifications:

    More Information
    Model 4MXCC009AC6
    UPC 647535679631
    Product Height (in) 30
    Air Flow Direction Horizontal, Vertical
    Product Length (in) 21
    Cooling Capacity 3.5 Ton, 4 Ton, 5 Ton
    Product Width (in) 21
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Weight (lbs) 91.000000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    Warranty 5 Year Parts, 10 Year Evaporator Coil
