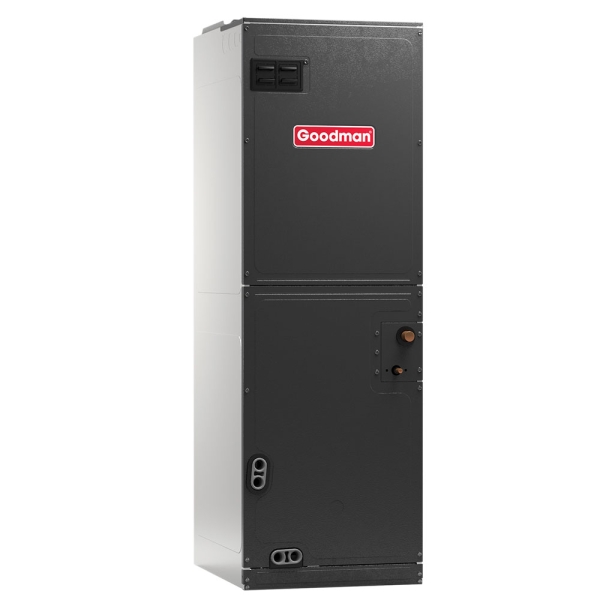

3.5 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - Flowrater
Shop All GOODMAN
Item:
HA10313
Model:
ARUF47D14
Condition:
New

This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Why wouldn't you want an ARUF47D air handling unit? This Goodman air handler is multi-position, multi-speed, built for R410A refrigerant, and fitted in the new SmartFrame cabinet. It features an all-aluminum coil, 21 inch cabinet depth for easy attic access, galvanized leather-grain embossed finish, coil-mounting track for easy and quick repositioning, and three-hole condensate pan. There's even a direct-drive, multi-speed motor designed to produce real air volume variation in both cooling and heating applications.
Accessories
Description / Documents
Why wouldn't you want an ARUF47D air handling unit? This Goodman air handler is multi-position, multi-speed, built for R410A refrigerant, and fitted in the new SmartFrame cabinet. It features an all-aluminum coil, 21 inch cabinet depth for easy attic access, galvanized leather-grain embossed finish, coil-mounting track for easy and quick repositioning, and three-hole condensate pan. There's even a direct-drive, multi-speed motor designed to produce real air volume variation in both cooling and heating applications.
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | ARUF47D14 |
|---|---|
| UPC | 663051513402 |
| Product Height (in) | 58 |
| Configuration | Floor Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Horizontal, Vertical |
| Product Width (in) | 24.5 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 150.000000 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
