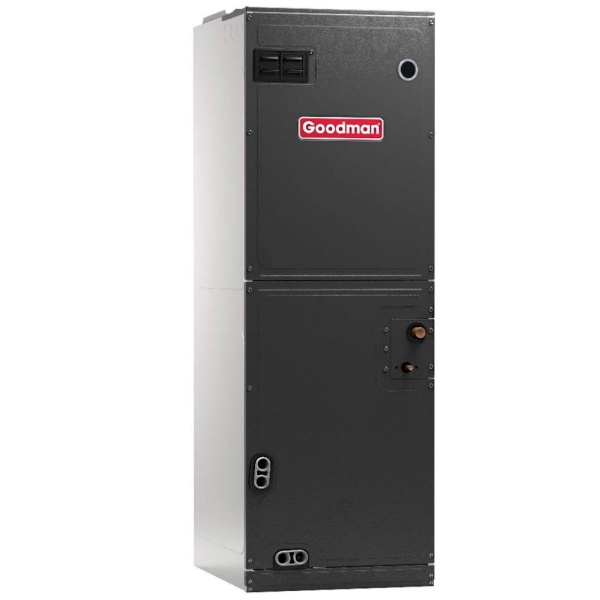

3.5 Ton Variable Speed Goodman Air Handler - Multiposition - 21" Cabinet

Item: HA10411
Model: AVPTC37C14
Condition: New

3.5 Ton Variable Speed Goodman Air Handler - Multiposition - 21" Cabinet Zoom

Photo Gallery

Clamp down on high humidity and severe temperatures in your home with the Goodman AVPTC37C Multi-Position Variable-Speed Air Handler. Constructed in line with Goodman's longstanding quality tradition, this air handling unit is an HVAC force with which to be reckoned. You buy it with excellent standard components like an internal factory-installed thermal expansion valve and built-in compatibility with cooling and multi-stage heat pump applications. Oh, and don't forget about the 10-Year Parts Limited Warranty.

Availability: In stock

Was: $1,175.00 To see product price, add this item to your cart. You can always remove it later.
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

Clamp down on high humidity and severe temperatures in your home with the Goodman AVPTC37C Multi-Position Variable-Speed Air Handler. Constructed in line with Goodman's longstanding quality tradition, this air handling unit is an HVAC force with which to be reckoned. You buy it with excellent standard components like an internal factory-installed thermal expansion valve and built-in compatibility with cooling and multi-stage heat pump applications. Oh, and don't forget about the 10-Year Parts Limited Warranty.
Goodman HA10411

Manufacturer Highlights

The Goodman brand AVPTC Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Compatible with the ComfortNet™ Communicating System family of products
  • Maximum four low-voltage wires required for operation in communicating mode
  • Auto configuration of the airflow and tonnage in communicating mode
  • In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system's CFM for each individual mode of operation
  • R-410A refrigerant-compatible
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • All-aluminum evaporator coil
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system; provides low CFM for efficient fan-only operation
  • CFM indicator
  • Improved humidity control and comfort
  • Compatible with heat pumps and variable capacity cooling applications
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • AHRI Certified; ETL Listed


Cabinet Features

  • Fully insulated, painted steel cabinet with attractive Architectural Gray finish
  • Compact, versatile upflow, downflow, or horizontal multi-position installations
  • Low-voltage cabinet connections; control circuit is arranged to permit staging
  • Power supply on top; low-voltage entry on top or side
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model AVPTC37C14
UPC 663051521193
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Variable Speed
Cooling Capacity 3.5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 15 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 53.438
Product Length 21
Product Width 21
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 144.0000
California Residents see Prop 65 WARNING

Reviews

Customer Reviews

Q & A

Q&A: Ask Questions, Get Answers

Do you have questions about this product?

My home heating and cooling system was replaced with a Goodman model AVPTC37C14BA air handler, working with a the original AEPF303616CA outside heat pump compressor unit.
The air handler has a viewing window that lets you view 3 digit program and operating codes. What does Code A08 represent as seen through the viewing.
Thank you.
