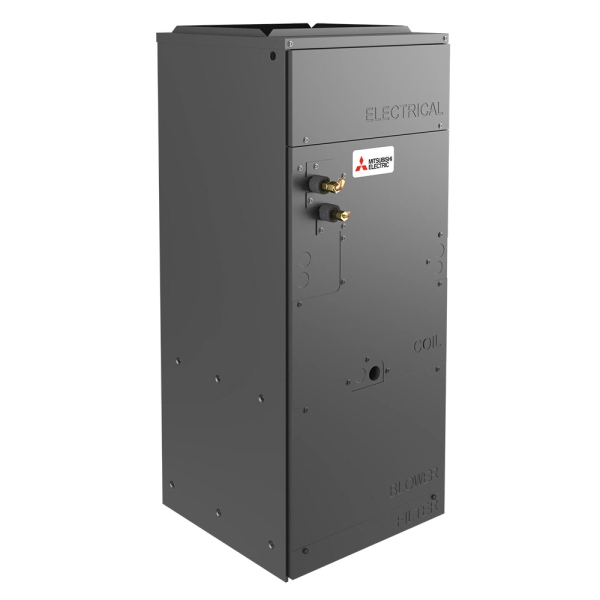

3.5 Ton Variable Speed Mitsubishi Central Air Handler - Multiposition
Shop All MITSUBISHI

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
If your tolerance for your indoor climate control has begun to run out in relation to your antiquated HVAC system and you’re no longer pleased with the heating and cooling results it has the power to provide your home, the time has come to shop around for a replacement. While the amount of choice currently on the market can be overwhelming, once you set your sights on the 3.5 Ton Variable Speed Mitsubishi Central Air Handler - Multiposition, your search will be over. Covered by both AHRI certification and ETL listing, this Mitsubishi Heat Pump goes above and beyond to pass intensive third-party evaluations, verifying the legitimacy of every operational claim. Don’t let your 1750 to 2100 square foot space suffer any longer; secure this 3.5 Ton Mitsubishi Air Handler and usher in an era of uncompromising comfort.
Loaded with game changing features designed to upgrade your standard of living, the 3.5 Ton Variable Speed Mitsubishi Central Air Handler - Multiposition is the perfect fit for your home. This ducted Air Handler from Mitsubishi is the perfect solution to cool and heat large zones, utilizing the installed highly efficient, totally enclosed ECM motor to save energy by tailoring the airflow output to meet your needs. Even offering selectable external static pressure options ranging from 0.30 to 0.08, you will enjoy 3 separate fan speed options at each static setting. With positive pressure cabinet air leakage kept below 1% at 1 inch of water, you can rest assured that this Mitsubishi Air Handler is the efficient solution you’ve been looking for.
But the powerful performance doesn’t stop there! This 3.5 Ton Variable Speed Mitsubishi Central Air Handler - Multiposition works even harder to blow away the competition. Equipped with 1 inch of R4.2 fiberglass free insulation, this Mitsubishi Air Conditioner has reduced condensation accrual and increased efficiency. The unique blow through design lets any licensed professional easily remove the blower to clean the coils, keeping your system running smoother for longer. Able to be installed in multiple positions from left or right horizontal to upflow, even supporting downflow when the condensate is properly managed, this Mitsubishi Air Handler is here to give you the results you and your family have been looking for.
With such a plethora of advantages within your reach, what benefits do you gain by holding out on your choice any longer? Secure this 3.5 Ton Mitsubishi Central Air Handler today and turn your home into the peaceful retreat you’ve been hoping for.
Customer Reviews / Q&A
Specifications
System Overview
| Model | PVA-A42AA7 |
|---|---|
| Product Height (in) | 59.5 |
| Configuration | Floor Mounted |
| Product Length (in) | 25 |
| Air Flow Direction | Horizontal, Vertical |
| Product Width (in) | 21.625 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Line Set Connection Type | Flared |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 30 amps |
| Weight (lbs) | 172.000000 |
| Primary Heating Capacity | 45,001 - 50,000 BTU |
| Refrigerant | R-410a |
| Suction Line Size | 5/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
