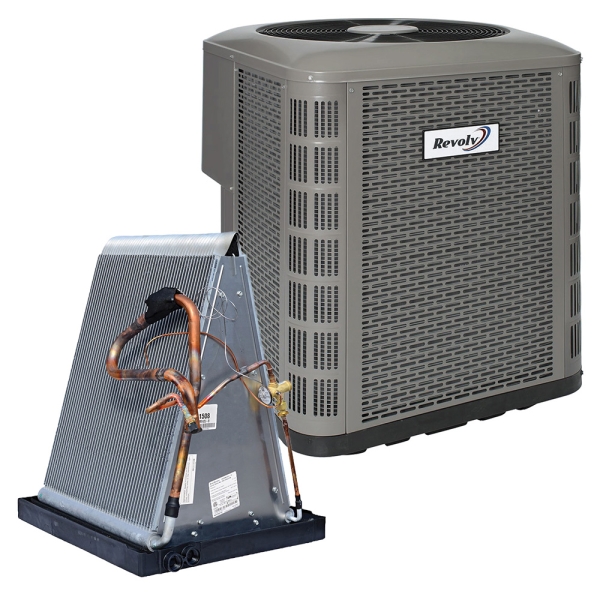

Making the most of your manufactured housing doesn't have to be a difficult task when you have modern-day technology that can handle the heat of summertime temperatures. With the 3 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B, give your family the support they need to stay cool in any conditions. Earning ETL listing and AHRI certification, the Revolv AC & Coil System passes exhaustive independent testing to verify the authenticity of every safety and functional claim. Guarantee comfort in your 1500 to 1800 square foot home no matter what heat wave comes your way with an upgrade to the 3 Ton Revolv System.

This Bundle Includes:

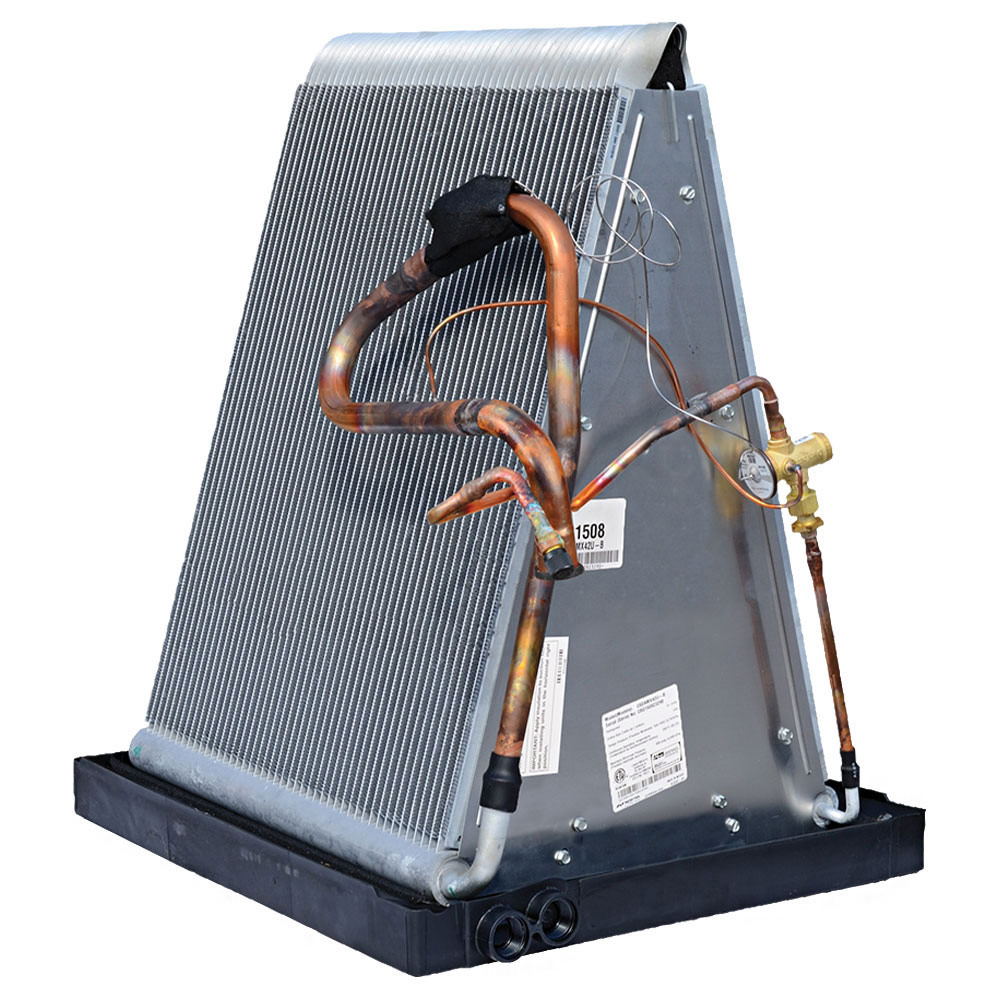

2.5 to 3 Ton Revolv Mobile Home Evaporator Coil - R454b
Item: HA26068Model: C85DAMX3036U-B Qty: 1
Accessories
Description / Documents

Making the most of your manufactured housing doesn't have to be a difficult task when you have modern-day technology that can handle the heat of summertime temperatures. With the 3 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B, give your family the support they need to stay cool in any conditions. Earning ETL listing and AHRI certification, the Revolv AC & Coil System passes exhaustive independent testing to verify the authenticity of every safety and functional claim. Guarantee comfort in your 1500 to 1800 square foot home no matter what heat wave comes your way with an upgrade to the 3 Ton Revolv System.

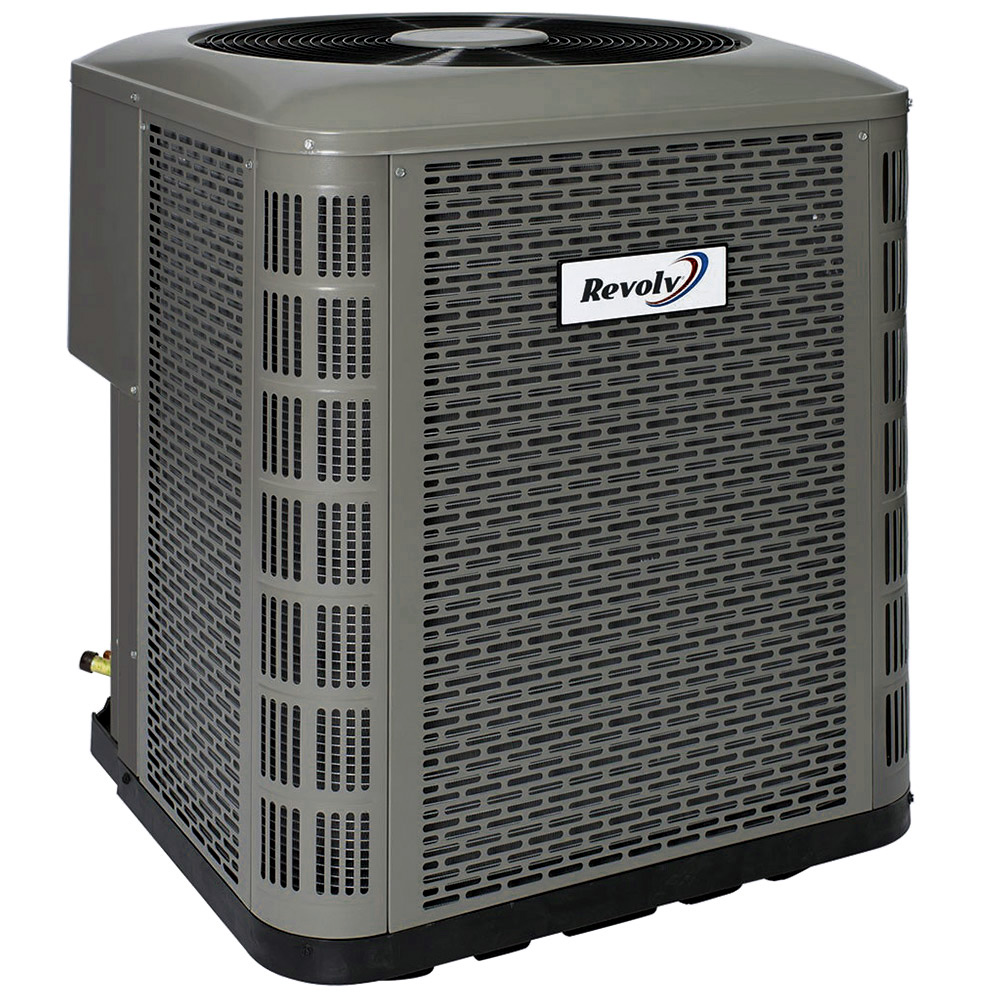

Giving you the crisp temperatures you crave, the condenser in the 3 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B fights off the summer sun to ensure your indoor ambiance provides an adequate break from the heat. The galvanized steel cabinet construction comes with a powder-paint coating to round out any sharp edges, passing 950-hour salt-spray testing to prove the Revolv System won’t suffer from fading, chipping, scratching, and corrosion for years. Thanks to the base pan, high-quality scroll compressor, and permanently lubricated PSC motor, operational vibrations are minimized for quiet results. Equipped with a removable top grille assembly, as well as the ability to access the compressor and controls without needing to detach the grille, the Revolv AC System makes it easy to enjoy the exact indoor ambiance you desire in the throws of summertime.

Removing the heat that plagues your home in summer, the evaporator coil in the 3 Ton 13.4 SEER2 Revolv Mobile Home Air Conditioner & Coil System - R454B leaves only crisp, cool air within your living space. Equipped with R454B refrigerant, the Revolv Coil boasts zero ozone depletion potential and a decreased GWP (global warming potential) compared to older refrigerant options. The included TXV metering device makes it easy for the Revolv System to keep the refrigerant in the right state of superheat, keeping performance reliable and safe over the years. Even sporting leak-free down turn braze connections, the Revolv AC & Coil System has everything you need and more to relax in the brisk ambiance you deserve.

When you want to enjoy crisp, invigorating airflow throughout your mobile home, don’t settle for anything less. Bring in the big guns with the 3 Ton Revolv Mobile Home Air Conditioner & Coil System making use of R454B refrigerant today to guarantee the top-tier temperature regulation that ensures comfortable conditions in your manufactured or modular home all summer long.

Customer Reviews / Q&A
Specifications

System Overview

Model HSA4MD5M1SN36K,C85DAMX3036U-B
AHRI Number 216044454
Bundle Avg Coverage Area 1,500 - 1,800 Sq Ft
Bundle Cooling Capacity 3 Ton
Bundle Cooling Efficiency (SEER2) 13.4
Region Compatibility North

HSA4MD5M1SN36K Specifications:

Model HSA4MD5M1SN36K
UPC 663132533435
Product Height (in) 37
Avg Coverage Area 1,500 - 1,800 Sq Ft
Product Length (in) 23.75
Compressor Single Stage
Product Width (in) 23.75
Cooling Capacity 3 Ton
Electrical Phase 1-Phase
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 30 amps
Weight (lbs) 147.000000
Refrigerant R-454b
Cooling Efficiency (SEER2) 13.4
Suction Line Size 7/8 inch
System Application Type Mobile Home Systems
Voltage 240
Warranty 5 Year Parts, 10 Year Compressor
Region Compatibility North

C85DAMX3036U-B Specifications:

Model C85DAMX3036U-B
UPC 663132533695
Product Height (in) 18
Air Flow Direction Vertical
Product Length (in) 19.5
Cooling Capacity 2.5 Ton, 3 Ton
Product Width (in) 18.125
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 40.000000
Refrigerant R-454b
Suction Line Size 3/4 inch
Warranty 5 Year
